16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
16000nm Hydraulic Winch Drives Gfw20 Planetary Gearbox with Robust and Modular Design
Specifications
Model NO. :
HFT020W
Warranty :
18 Months
Output Torque :
Higher Output Torque
Custom :
Customized Design
Brand :
Elite/OEM
Ratio :
Different Ratios
Brakes :
Multiple Disc Brakes
Load Capacity :
Higher Load Capacity
Delivery :
Fast Delivery
Ground Tooth :
Notchless Ground Tooth Root
Design :
Robust and Modular Design
Assembly :
Easy Assembly
Transport Package :
Wooden Boxes
Trademark :
Elite
Origin :
China
HS Code :
8483402090
Supply Ability :
90000 Pieces/Year
Application :
Motor, Motorcycle, Machinery, Agricultural Machinery
Function :
Change Drive Torque, Speed Changing, Speed Reduction
Hardness :
Hardened Tooth Surface
Installation :
Horizontal Type
Step :
Three-Step
Type :
Planetary Gear Box
Customization :
Available | Customized Request
Place of Origin :
China
Certification :
ISO 9001, ISO 14001, IATF16949
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
MOQ :
5
Description

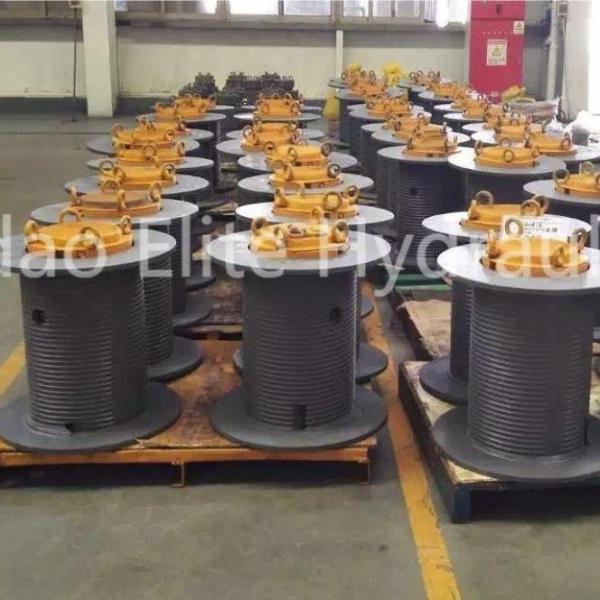

Planetary winch gearboxes of the HFW series are composed of 18 finely spaced frame sizes. The compact design allows the gearbox to be integrated into the winch drum. The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears. Electrically driven versions are available with both in-line and right-angle configurations. Torque ratings are organized by FEM class, in accordance with minimum approved class safety factors for gears.


Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Class approval program
ATEX conformity on demand
Torque ratings are organized by FEM class
The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears


Specifications:
Model HFT020W
Max. output torque: 16000 N.m
Input speed
 up to 4,000 rpm
Ratio: 18.56,20.35,22.66,25.75,30.06,48.18
Brake options
 Hydraulically released parking brake on request
Dynamic Loading: 160KN
Static Loading: 332KN
Applicable motors:
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors
Electrical motors
Application: Marine: Ship crane, mobile harbour crane, heavy duty crane, shipyard cranes, handling equipment
Construction machine: Cable excavator, drilling rig, crane
