Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
Specifications
Place of Origin :
China
Certification :
ISO 9001, ISO 14001, IATF16949
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
Supply Ability :
2200/Month
MOQ :
5
Model NO. :
HFT
Type :
Planetary Gear Reducer
Output Torque :
Higher Output Torque
Custom :
Customized Design
Brand :
Elite/OEM
Ratio :
Different Ratios
Brakes :
Multiple Disc Brakes
Load Capacity :
Higher Load Capacity
Delivery :
Fast Delivery
Ground Tooth :
Notchless Ground Tooth Root
Design :
Robust and Modular Design
Assembly :
Easy Assembly
Transport Package :
Wood Cases
Trademark :
elite
Origin :
China
HS Code :
8483402090
Application :
Motor, Electric Cars, Machinery, Agricultural Machinery
Hardness :
Soft Tooth Surface
Installation :
Vertical Type
Layout :
Coaxial
Gear Shape :
Conical - Cylindrical Gear
Step :
Stepless
Customization :
Available | Customized Request
Description
Product Description

MODEL MAX OUTPUT
TORQUE		 RANGE OF RATIO MAX.
INPUT SPEED		 MOTOR TYPE SINGLE ROPE PULL INTERCHANGEABLE MODEL
Nm 1: rpm KN
HFT036Z 28800 80 4300 High Speed 80 Rexroth GFW36
Zollern ZHP 6.24
HFT060Z 48100 64 4300 High Speed 15 Zollern ZHP 6.27
HFT080Z 65000 86 4300 High Speed 25 Zollern ZHP 6.29
HFT110Z 88000 135 4300 High Speed 30
Zollern ZHP 6.31
Application

Applications: Our product finds applications in a wide range of industries and machinery, including:
  • Shipboard and deck cranes
  • Rescue and wrecker salvage trucks
  • Dockyard and harbour cranes
  • Offshore cranes
  • Container gantries
  • Access platforms

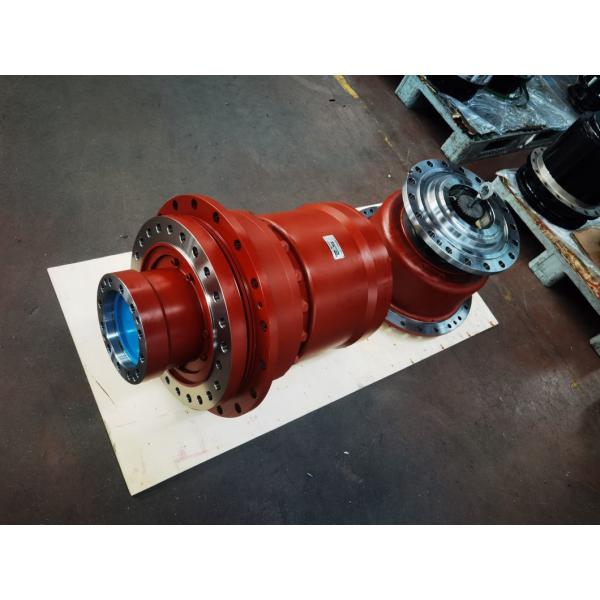

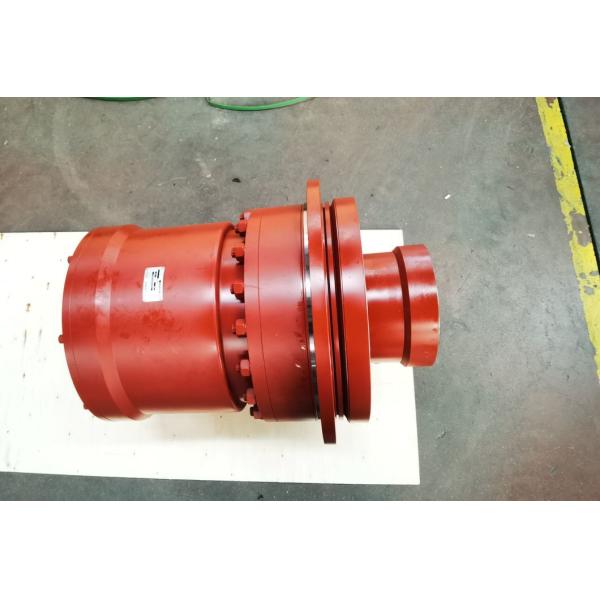

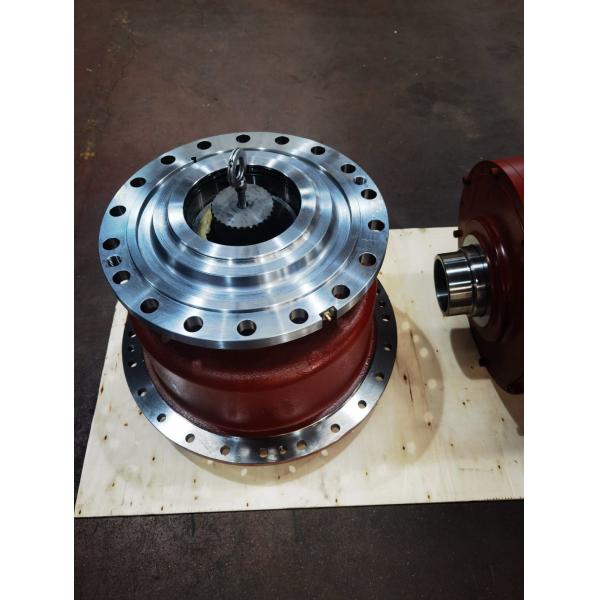

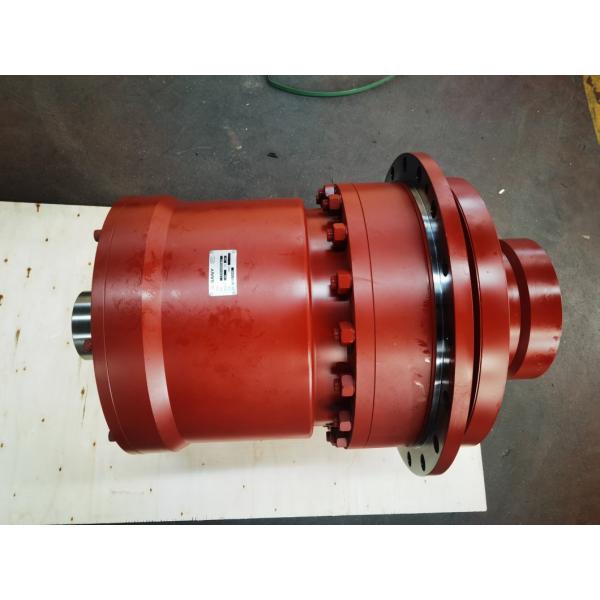

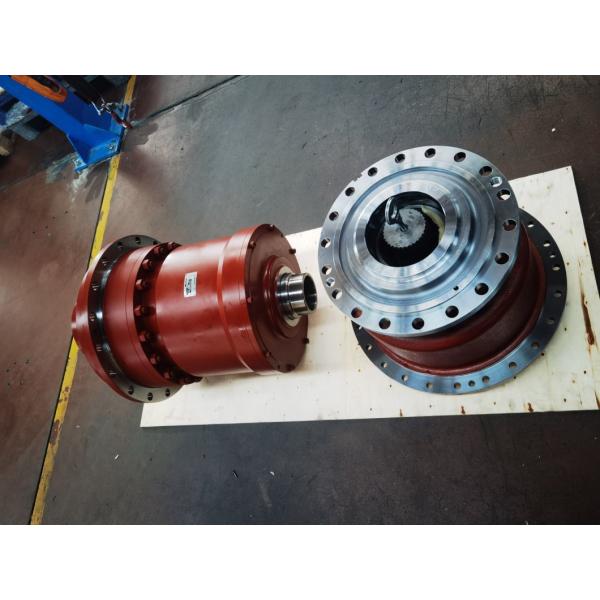

    Detailed Photos

    Soft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized NeedsSoft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized NeedsSoft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized NeedsSoft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized NeedsSoft Tooth Surface Winches Hft036z Hft060z Hft080z Hft110z for Customized Needs
    Company Profile

    Elite HFTE planetary drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. HFTE Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:153 to satisfy the widest possible range of needs. The gearbox is coupled with a low-voltage induction motor (BT Series), specially developed for traction power and control applications
