18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
Specifications
Model NO. :
HFT
Warranty :
18 Months
Output Torque :
Higher Output Torque
Custom :
Customized Design
Brand :
Elite/OEM
Ratio :
Different Ratios
Brakes :
Multiple Disc Brakes
Load Capacity :
Higher Load Capacity
Assembly :
Easy Assembly
Transport Package :
Wooden Boxes
Trademark :
Elite
Origin :
China
HS Code :
8483402090
Supply Ability :
90000 Pieces/Year
Application :
Motor, Motorcycle, Machinery, Agricultural Machinery
Function :
Change Drive Torque, Speed Changing, Speed Reduction
Hardness :
Hardened Tooth Surface
Installation :
Horizontal Type
Step :
Three-Step
Type :
Planetary Gear Box
Customization :
Available | Customized Request
Place of Origin :
China
Certification :
ISO 9001, ISO 14001, IATF16949
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
MOQ :
5
Description

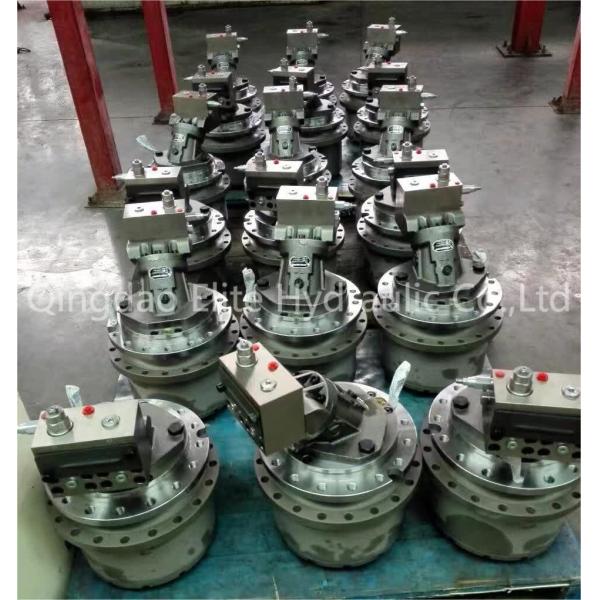

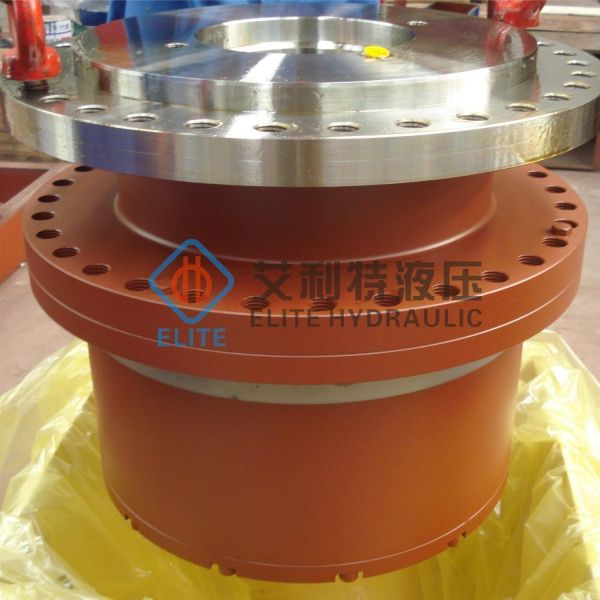

Elite GFT Travel Drives are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation

Specifications:
Model HFT055T
Max. output torque: 55000 N.m
Input speed
 up to 4,000 rpm
Ratio: 40,73, 96, 110, 148,185
Brake options
 Hydraulically released parking brake on request
Dynamic Loading: 245KN
Static Loading: 553 KN
Applicable motors:
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors
Electrical motors
Application: Travel for Track, Chain and Wheel driving machines

18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial
18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial

18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial18 Months O K Antriebstechnik F55 Planetary Gearbox 55000nm Final Drives for Industrial

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
