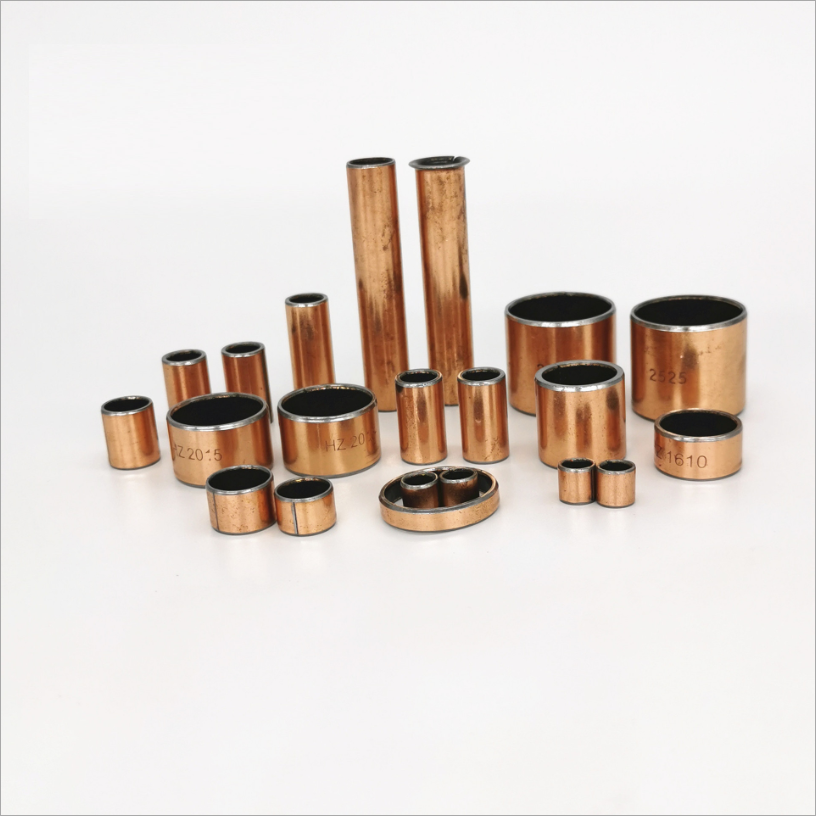

ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
Specifications
Brand Name :
TOB PTFE Self-Lubrication Bearings
Certification :
ISO 16949
Place of Origin :
China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings
Delivery Time :
negotiated
Packaging Details :
Export standard packing
Material :
Carbon steel + bronze+ ptfe
Characteristic :
Low-maintenance And Maintenance-free Plain Bearings
Production Feature :
Bushes, collar bushes, washers, strips or special designs
Plating :
Tin or Copper plated
Size :
Customized Size,Customized request, All Standard, As per customer's request
Lubricating :
Oilless
Description

Steel-Sintered-Bronze-PTFE Composite Material - maintenance-free


No minimum on steel backed ptfe bushing & sliding Bearings. Metric Size or inch size, Custom Lubricating Parts Available. Types: PTFE Bushing, POM Bushes,Cast Bronze Bearings, Oil Impregnated Bearings, Plug Graphite Bearings, Vehicle Bushings, Wear Plate.

Material - Characteristics

Steel with porous sintered tin bronze layer, which is coated with PTFE as sliding layer.

  • DU self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

  • Bushing material suitable for lubricated applications

  • Anti-friction bearing suitable for linear, oscillating and rotating movements

  • Approved to standard FAR 25.853 and FAR 25.855 - Federal Aviation Regulations – making it suitable for interior aircraft applications



ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless

Application Data

temperature range -200 up to +280 °C
max. PV value
dry 3,6 MPa m/s
oil lubricated 10 MPa m/s
max. sliding velocity
dry 2,5 m/s
oil lubricated 5 m/s
max. surface pressure stat. 250 MPa - dyn. 140 MPa

thermal expansion 11 x 10-6 °C-1
solid lubricant PTFE

Features


Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.

Structures


1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-Fibre mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Frictional coefficient:

For Bearing Design

Recommended fitting

shaft f7
housing H7
bearing according to DIN ISO 3547-1 (formerly DIN 1494)


Thermal expansion has to be taken into account at temperatures above 80 °C.

Mating Material

surface roughness Ra = 0,4 μm
minimum hardness > 200 HB

Product Description

Product Name

 High Quality Hardened Stainless Steel Sleeve PTFE DU Bushing


Material

 1)Metal:Stainless steel,Steel(Iron,)Brass,Copper,Aluminum
2)Plastic:POM,Nylon,ABS,PP
3)OEM according to your request


Surface treatment

 Anodized different color,Mini polishing&brushing,Electronplating(zinc plated,nickel plated,chrome plated),Power coating & PVD coating,Laser marking&Silk screen,Printing,Welding,Harden etc.

Tolerance

 ±0.01mm


process

 CNC machining,Auto lathing/turning,Milling,Grindin, Tapping Drilling,Bending,Casting,Laser cutting

Certificate

 ISO9001:2008,SGS, ROHS

Delivery Time

 7-25days

MOQ

 1000

ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
