Specifications
Brand Name :
OUSTER
Model Number :
4we 6/DBDS/4WRE/2FM
Place of Origin :
CHINA
MOQ :
1
Price :
5-36.6usd
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
2-10days
Packaging Details :
paper box/wooden box
Certification :
CO,CE
Sizes :
standard design
Material :
steel iron and copper
Shipping way :
By courier/by air/by sea
Ship cost :
not include
painting :
blue/custom made
Color :
metal color
Warranty :
half year
Delivery time :
In stock /based on warehouse situation
Description
4we 6/DBDS/4WRE/2FM Control valve Rexroth Hydraulic Valve for industrial
1, Product Overview

· Product Name: 4WE6 Electromagnetic Directional Valve
· Product type: Sliding valve directional control valve controlled by wet electromagnet
· Core function: By using electromagnetic iron to drive the valve core to move, the direction of the hydraulic oil circuit is changed, thereby controlling the hydraulic actuator components (such as the extension/retraction of the oil cylinder, the start/stop/forward/reverse rotation of the motor).
· Main features:
· Compact structure: small size, high power density, easy to install.
· Reliable performance: using wet electromagnetic coil, with long service life, stable operation, and low noise.
· Strong universality: compliant with ISO 4401 standard, with uniform installation and connection dimensions, and good interchangeability.
· Widely applicable: Suitable for various industrial hydraulic systems.
· Rich options: Provides multiple voltage, slide valve function, operation mode and other options.

2, Technical parameters (typical values)

Parameter Name Value/Description Remarks
Specification of 6mm diameter valve
Maximum working pressure 315 bar (31.5 MPa), maximum system pressure
The maximum flow rate of 40 L/min depends on the pressure difference and valve function
Oil type mineral based hydraulic oil meets ISO 11158 standard
Oil viscosity 10-400 mm ²/s, optimal working range 15-160
The temperature range of the oil is -20 ° C to+80 ° C, depending on the sealing material
Electromagnetic voltage AC: 110V, 220V; DC: 12V, 24V to be specified at the time of ordering
Protection level IP65 dustproof and waterproof
Electrical connection with light socket (DIN 43650) or lead wire
Sealing material NBR (nitrile rubber) or FKM (fluororubber) FKM resistant to high temperatures and chemical media

3, Working principle

1. Initial state (electromagnetic power-off): The valve core remains in the neutral position under the action of the reset spring, and the connection mode of the oil port is determined by its slide valve function (such as O-type, H-type, etc.).
2. Action state (electromagnetic iron energized): When the electromagnet on one side (such as the left side) is energized, it will generate electromagnetic force, pushing the valve core to move to the right and compressing the spring on the other side.
3. Oil circuit switching: The movement of the valve core changes the connection method of the oil passage in the valve body. For example, changing from the neutral position of "P, T, A, B are not connected to each other" in the O-type function to "P port is connected to A port, B port is connected to T port", thus driving the oil cylinder to extend.
4. Reset: When the electromagnet is powered off, the spring force pushes the valve core back to the neutral position.
5. Manual emergency operation: Many models are equipped with manual push rods, which can be used to push the valve core to change direction with tools in case of power failure or no power, for system debugging or emergency situations.
4, Main application areas

The 4WE6 valve is widely used in various small and medium power industrial hydraulic equipment due to its small size and versatility, such as:
· Machine tools: motion control of tool holders, workpiece clamping, etc. for machining centers, grinders, and stamping machines.
· Plastic machinery: Injection molding machine's stage movement, mold closing control, etc.
· Construction machinery: motion control for small excavators, forklifts, lifting platforms, etc.
· Metallurgical equipment: steel rolling auxiliary equipment, strapping machines, etc.
· Agricultural machinery: hydraulic systems for tractors, harvesters, etc.
· Automation equipment: fixtures, handling robots, etc.
Hydraulic valve models:
4WMD 6 C5X/F R900476226
4WMD 6 D5X/F R900476880
4WMD 6 E5X/F R900475573
4WMD 6 J5X/F R900471013
3WH 6 A5X/ R900472229
4WH 6 D5X/ R900444957
4WH 6 E5X/ R900476667
4WH 6 J5X/ R900470475
4WH 6 Y5X/ R900470211
4WP 6 D6X/ R900752414
4WP 6 E6X/ R900752415
4WP 6 G6X/ R900753849
4WP 6 Y6X/ R900752413
3WMR 10 A3X/ R900589995
4WMR 10 D3X/ R900589916
4WMU 10 D3X/ R900590253
4WMU 10 E3X/ R900587208
3WMM 10 A3X/F R900595634
4WMM 10 D3X/ R900591592
4WMM 10 E3X/ R900589983
4WMM 10 G3X/ R900590222
4WMM 10 H3X/ R900592220
4WMM 10 J3X/ R900586919
4WP 10 D3X/ R900593836
4WP 10 G3X/ R900593263
4WP 10 H3X/ R900594341
3WHD 10 A3X/ R900591482
4WHD 10 D3X/ R900590239
4WHD 10 E3X/ R900598445
H-4WMM 16 D7X/F R900927098
H-4WMM 16 E7X/ R900918059
H-4WMM 16 G7X/ R900924972
H-4WMM 16 J7X/ R900926212
4WE 4 D2X/EG24N9K4 R900770141
4WE 4 D2X/OFEG24N9K4 R900770145
4WE 4 E2X/EG24N9K4 R900770147
4WE 4 J2X/EG24N9K4 R900770148
4WE 4 Y2X/EG24N9K4 R900770149
3WE 6 A7X/HG12N9K4 R901089276
3WE 6 A7X/HG24N9K4 R901089244
4WE 6 C7X/HG12N9K4 R901089277
4WE 6 C7X/HG24N9K4 R901089245
4WE 6 D7X/HG12N9K4 R901089273
4WE 6 D7X/HG24N9K4 R901087088
4WE 6 Y7X/HG12N9K4 R901089274
4WE 6 Y7X/HG24N9K4 R901089243
4WE 6 E7X/HG12N9K4 R901089278
4WE 6 E7X/HG24N9K4 R901087087
4WE 6 J7X/HG12N9K4 R901089280
4WE 6 J7X/HG24N9K4 R901089241
4WE 6 J6X/EG12N9K4 R900567496
3WE 6 A6X/EG24N9K4 R900561180
3WE 6 B6X/EG24N9K5 R900561270
4WE 6 C6X/EG24N9K4 R900561272
4WE 6 C6X/OFEG24N9K4 R900564107
4WE 6 D6X/EG24N9K4 R900561274
4WE 6 D6X/OFEG24N9K4 R900567512
4WE 6 E6X/EG24N9K4 R900561278
4WE 6 EA6X/EG24N9K4 R900561280
4WE 6 EB6X/EG24N9K4 R900561281
4WE 6 G6X/EG24N9K4 R900561282
4WE 6 H6X/EG24N9K4 R900561286
4WE 6 HA6X/EG24N9K4 R900569534
4WE 6 J6X/EG24N9K4 R900561288
4WE 6 M6X/EG24N9K4 R900577475
4WE 6 Q6X/EG24N9K4 R900561292
4WE 6 R6X/EG24N9K4 R900571012
4WE 6 T6X/EG24N9K4 R900934414
4WE 6 U6X/EG24N9K4 R900572785
4WE 6 W6X/EG24N9K4 R900568233
4WE 6 Y6X/EG24N9K4 R900561276
4WE 6 D6X/EW110N9K4 R900551704
4WE 6 D6X/OFEW110N9K4 R900552321
4WE 6 E6X/EW110N9K4 R900558641
4WE 6 J6X/EW110N9K4 R900551703
3WE 6 A6X/EW230N9K4 R900515672
4WE 6 C6X/EW230N9K4 R900913132
4WE 6 D6X/EW230N9K4 R900909559
4WE 6 D6X/OFEW230N9K4 R900915095
4WE 6 E6X/EW230N9K4 R900912492
4WE 6 H6X/EW230N9K4 R900912494
4WE 6 J6X/EW230N9K4 R900911762
4WE 6 Y6X/EW230N9K4 R900909415
4WE 6 D73-6X/EG24N9K4/A12 R900546257
4WE 6 D73-6X/OFEG24N9K4/A12 R900567066
4WE 6 E73-6X/EG24N9K4/A12 R900567095
4WE 6 G73-6X/EG24N9K4/A12 R900572783
4WE 6 H73-6X/EG24N9K4/A12 R900906660
4WE 6 J73-6X/EG24N9K4/A12 R900567997
4WE 6 W73-6X/EG24N9K4/A12 R900567269
4WE 6 Y73-6X/EG24N9K4/A12 R900572186
4WE 10 D73-3X/CG24N9K4/A12 R900528033
4WE 10 D73-3X/OFCG24N9K4/A12 R900563418
4WE 10 E73-3X/CG24N9K4/A12 R900525717
4WE 10 G73-3X/CG24N9K4/A12 R900560503
4WE 10 H73-3X/CG24N9K4/A12 R900912742
4WE 10 Y73-3X/CG24N9K4/A12 R900929728
3WE 10 A3X/CG24N9K4 R900592014
3WE 10 A3X/CW230N9K4 R900915675
3WE 10 B3X/CG24N9K4 R900594429
3WE 10 B3X/CW230N9K4 R900517341
4WE 10 C3X/CG24N9K4 R900593277
4WE 10 C3X/CW230N9K4 R900915651
4WE 10 D3X/CG24N9K4 R900589933
4WE 10 D3X/CW230N9K4 R900912496
4WE 10 E3X/CG24N9K4 R900588201
4WE 10 E3X/CW230N9K4 R900911869
4WE 10 F3X/CG24N9K4 R900529749
4WE 10 F3X/CW230N9K4 R900918361
4WE 10 G3X/CG24N9K4 R900594277
4WE 10 G3X/CW230N9K4 R900912497
4WE 10 H3X/CG24N9K4 R900597986
4WE 10 H3X/CW230N9K4 R900503425
4WE 10 J3X/CG24N9K4 R900589988
4WE 10 J3X/CW230N9K4 R900911868
4WE 10 L3X/CG24N9K4 R900599646
4WE 10 L3X/CW230N9K4 R900915669
4WE 10 M3X/CG24N9K4 R900500932
4WE 10 M3X/CW230N9K4 R900916118
4WE 10 P3X/CG24N9K4 R900500716
4WE 10 Q3X/CG24N9K4 R900591325
4WE 10 Q3X/CW230N9K4 R900921465
4WE 10 R3X/CG24N9K4 R900598583
4WE 10 R3X/CW230N9K4 R900593804
4WE 10 T3X/CG24N9K4 R900503424
4WE 10 T3X/CW230N9K4 R900931784
4WE 10 U3X/CG24N9K4 R900592655
4WE 10 U3X/CW230N9K4 R900909906
4WE 10 V3X/CG24N9K4 R900921780
4WE 10 V3X/CW230N9K4 R900919553
4WE 10 W3X/CG24N9K4 R900588200
4WE 10 W3X/CW230N9K4 R900521281
4WE 10 Y3X/CG24N9K4 R900595531
4WE 10 Y3X/CW230N9K4 R900915670

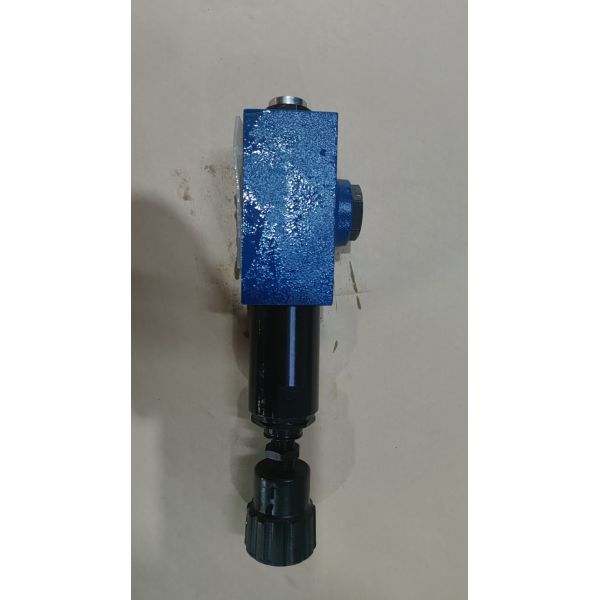

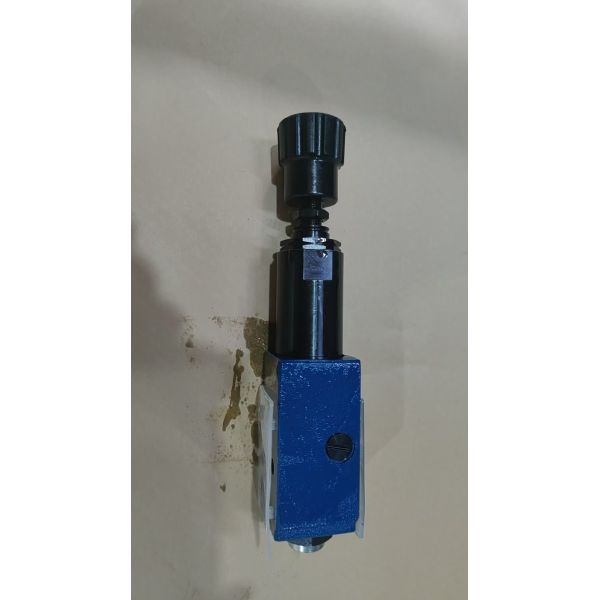

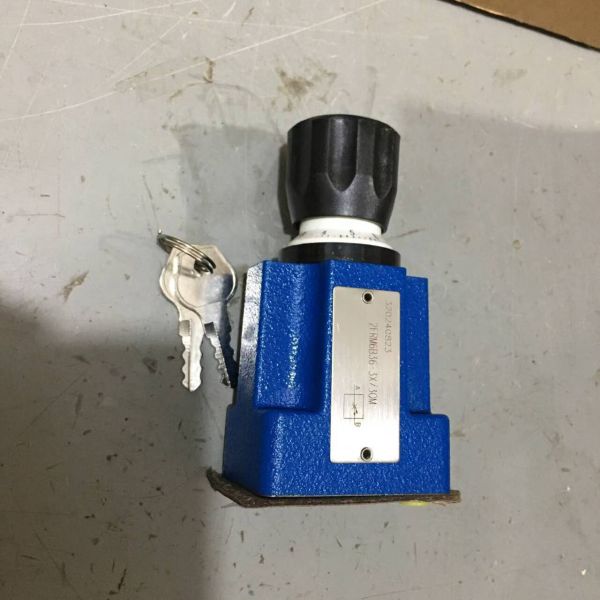

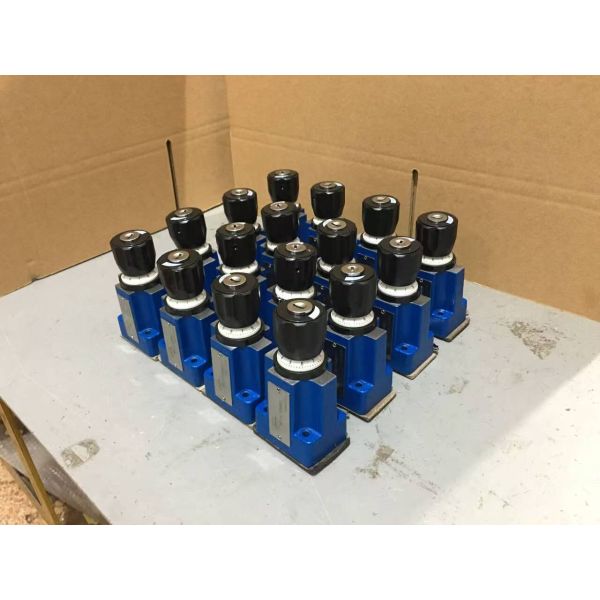

Product Images
