Specifications
Brand Name :
zexu
Model Number :
1"-80"
Certification :
CE API ISO9001
Place of Origin :
Hebei china
MOQ :
1pcs
Price :
20-27000USD
Payment Terms :
T/T
Supply Ability :
10000ton/Year
Delivery Time :
5work days
Packaging Details :
Export wooden boxes and pallets or according to customer requirements
Material :
A350 LF3
Standard :
ANSI B16.9, ASME, JIS, DIN, EU, BS
Wall thickness :
sch20,sch30,sch40,STD,sch60,XS,sch80,sch120,XXS,etc
Shape :
Equal
Color :
black or varnished
Connection :
Welding
Size :
Customized Size,1/8"~6",DN10-200
Oem :
Yes,offered,Accept,Acceptable
Description

A350 LF3 Low Temperature Resistant Seamless 60 Degree Long Radius Elbow

Elbow 60 DEG LR A350 LF3 pipe fittings are used for the pressure piping systems of moderate and high temperature services.ASTM A350 LF3 is the standard of material ,which indicating the materials properties of different kinds of carbon steel and alloy steel. "WPB "is one of the steel grade in this standard. "W" means weldable, "P" means pressure, "B" is grade b .So A234 WPB pipe fittings are butt welding ends , commonly used to be welded with the steel pipes of A106, A53, GR.B material, or API 5L GR.B material
SIZE: 1/2--36" seamless elbow;2"--100" seam welded
WALLTHICKNESS: STD,SCH40,XS,SCH80 iswidely uesd.
TYPE: LR( long radius:R=1.5D); SR(short radius:R=1.0D), 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D
ANGLE: 15°30°,45°,60°,90°,180°, or as client requirement.
PROCESS:hot-pushing elbow
MATERIAL:
ASTM A234WPB,ASTMA234WPC,St37.0,St35.8,St45.8
STANDARD:ASMEB16.9,ASMEB16.28,ANSI B16.5 ,ANSIB16.9
ElbowDetail
The regular products of A234 WPB pipe fittings are elbows, tees, reducers, caps, cross.....
All the A234 WPB pipe fittings include the seamless A234 WPB pipe fittings which are made from the seamless steel pipes, and the welded pipe fittings which are made from ERW steel pipes.

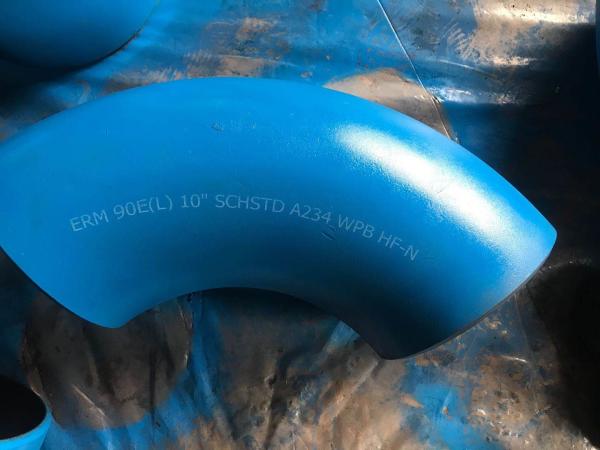

Steel Elbow is installed between two long pipes to change direction.Generally, Elbow with the angle of 45°, 90° , 180°(or as client request) is widely uesd in the world.

Product Name Steel pipe fitting
Size 1/2"-36" seamless, 26"-110" welded
Standard ANSI B16.9, EN10253-2, DIN2605, DIN2615,DIN2616,DIN2617, GOST17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Type elbow, tee, reducer, cap, bend, stub end, weldolet, pipe nipple, etc.
Process Seamless or seam welded
End Bevel end/BE/buttweld
Surface nature color, varnished, black painting, anti-rust oil etc.
Material Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH ,A333GR3,A333 GR.6,A420 WPL6,A420 WPL3etc.
Pipeline steel: ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc.
Application Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

NPS O.D.
D		 90°
Long Rad
Center to End
A		 45°
Long Rad
Center to End
B		 90°
3D
Center to End
A		 45°
3D
Center to End
B
1/2 21.3 38 16
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1.1/4 42.2 48 25 95 39
1.1/2 48.3 57 29 114 47
2 60.3 76 35 152 63
2.1/2 73 95 44 190 79
3 88.9 114 51 229 95
3.1/2 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505

A350 LF3 Low Temperature Pipe Fittings Elbows , 60 Degree Pipe ElbowA350 LF3 Low Temperature Pipe Fittings Elbows , 60 Degree Pipe ElbowA350 LF3 Low Temperature Pipe Fittings Elbows , 60 Degree Pipe Elbow
