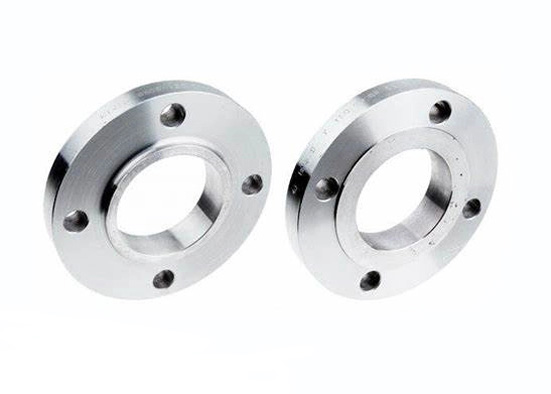

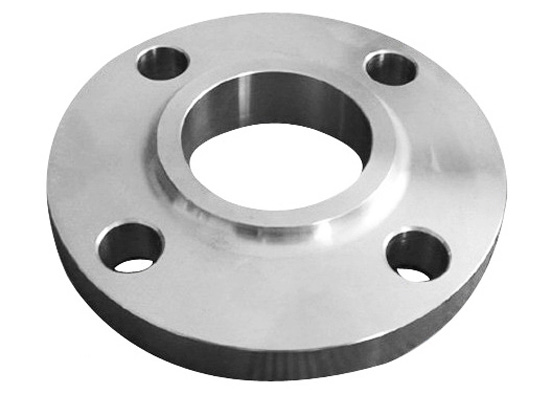

50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
Specifications
Brand Name :
ZeXu
Model Number :
various kinds
Certification :
CE,API
Place of Origin :
Hebei,China
MOQ :
1 pieces
Price :
$15-$32
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per week
Delivery Time :
5-7 work days
Packaging Details :
Ply Wooden Case
Surface Color :
Silver
Packing :
Wooden Pallets
Standard or Nonstandard :
Standard
Surface Treatment :
Anti-rust Oil
Type :
Slip-On
Size :
50-200mm, 50-200mm,1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Classification :
Flange
Standard :
ANSI, ASME
Description

ANSI B16.5 Forged 304/316 Stainless Steel Pipe Flange Slip-On Flange

Neck flat welding flanges are the same as plate flat welding flanges, which are flanges that extend steel pipes, pipe fittings, etc. into the flange and connect with equipment or pipelines through fillet welds.

Sealed form


The sealing surface forms of neck flat welding flanges are:

Raised surface (RF), concave surface (FM), convex surface (M), tenon surface (T), groove surface (G), full surface (FF).

The diameter range of the flat welding flange with neck: DN10~DN600

Advantages

Flat-welded flanges with necks are also flat-welded flanges, because they have a short neck, which increases the strength of the flange and improves the bearing strength of the flange. So it can be used on higher pressure pipelines.

Disadvantages: The cost is higher than the plate flat welding flange, and it is easier to bump during transportation due to its shape.

Name ANSI B16.5 Forged 304/316 Stainless Steel Pipe Flange Slip-On Flange
Metrail Stainless steel,Alloy steel
Model 304/304L, 316/316L, 316H, 310, 904L, F55(Zeron 100) monel 400, S31803, S32205, S32750, S32950, Hastelloy C276, Hastelloy C22, Hastelloy B2, HastelloyX ,Inconel 600, inconel 601, inconel 625, inconel X-750, nconel 800, inconel 800H, inconel 800HT, inconel 825 etc
Size Size 1/4" ~ 86" out diameter 13.7mm~2200mm
Technique High temperature forged
Conection Welding or threaded
Type Square Flanges,Groove & Tongue Flanges,Spades and Ring Spacers,Expander Flange,Forged Flange,Blind Flange.
Process Inquiry-Pricing-Quote-Order-Materialtesting-Cutting-Heat-Forging- Machining- Heat Treat- Finish Processing- Inspection-- Delivery.
Standard ANSI B16.5, ANSI B16.47, ASME B16.5, ASME B16.36, BS4504-3.1, DIN2503, DIN2527, DIN2627, DIN2629, DIN2630-2638, DIN2573, DIN2576, DIN2501, DIN2566, DIN2656, JIS B2220, JIS5K, 10K,16K, 20K, GOST 12821-80, GOST12820-80.
Machining ROUGH MACHINE, FINISHED MACHINE

50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges50mm Slip On ANSI B16.5 Forged Steel Flanges , 316 Stainless Steel Flanges
