PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry
Specifications
Place of Origin :
Changzhou, Jiangsu,China
Brand Name :
Kaff Rees
MOQ :
20 Cubic Meters
Price :
Negotiable
Packaging Details :
Carton packaging/Wooden case packaging/according to the requirements
Payment Terms :
EXW/FOB/CIF
Certification :
SGS
Delivery Time :
Negotiable
Supply Ability :
According to products
Name :
PIR Pipe Insulation
Feature :
Easy Processing
Cold Insulation Material :
Polyisocyanurate PIR
PH Value :
5.5-7
Service Temp. :
-196～+120℃
Application :
Low temperature industries
Description

The full name of PIR is polyisocyanate Foam, and the Chinese name is "polyisocyanuric acid", also known as "polyisocyanuric acid ester Foam PIR" or "tripolyester PIR". PIR is made of isocyanate reacting with polyether after catalysis, and its physical and fireproof properties are better than those of general polyurethane. It is an ideal organic low temperature thermal insulation material with low thermal conductivity, light weight, shockproof and strong adaptability. It is widely used in LNG, ethylene, cold storage and other industries.

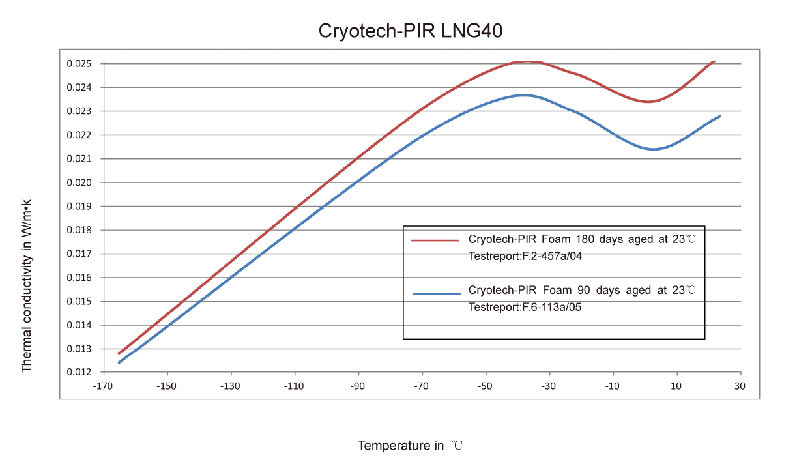

Thermal conductivity curve of PIR material at different temperature is as below:

PIR Polyisocyanurate Foam Pipe Insulation Multifunctional For Low Temperature Industry

Our PIR products can meet the requirements of . And the physical parameters of PIR are showed in below sheet.

No. Item Unit Standard Technical parameters
1 Density kg/m³ ASTM D1622 ≥40
2 Closed Cell Ratio % ASTM D6226 ≥90%
3 Water Absorption by Vol % ASTM C272 ≤1%
4 Thermal Conductivity W/m.K ASTM C177 24℃ ≤0.029
-46℃ ≤0.027
-101℃ ≤0.022
5 Cl content ppm ASTM C871 ≤60
6 Water Vapor Permeability porm-inch ASTM E96 ≤3.5
7 Compressive Strength kg/cm² ASTM D1621 ≥240
8 Flame Spread Index 　 ASTME84 FSI ≤25
9 Thermal Surface Performance ASTMC591 passed the 149℃ test
10 Imensional stability, max % linear change % ASTMC 591 158 + 4°F (70 + 2°C), 97 + 3 % relative humidity 4
−40 + 6°F (−40+ 3°C),ambient relative humidity 1
212 + 4°F (100 + 2°C), ambient relative humidity 2
