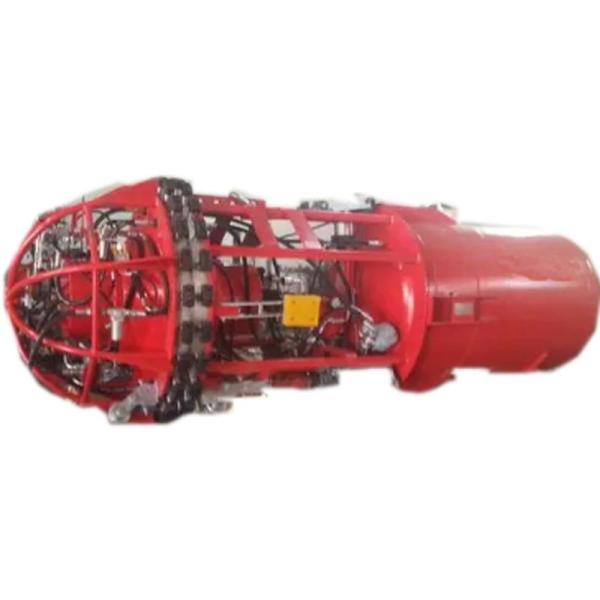

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps
ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps
ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps
ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps
Specifications
Brand Name :
suhigo
Certification :
ISO-9001
Place of Origin :
Langfang, Hebei, China
MOQ :
1 piece
Price :
bargain
Supply Ability :
Construction period 15-30 days
Delivery Time :
15 days -30 days.
Packaging Details :
Wooden box+wrapping film
Country of origin: :
Hebei, China
Material Science :
Carbon steel
working pressure :
0.5 MPa~0.8 MPa
Electric system :
24
Fuel tank capacity :
380
Structure :
G fixture
Maximum torque :
Adjustable
Applicable pipeline size :
Pipe positioning clamp 6 "-80"
Description

Oil And Gas Pipeline Welding Equipment Pneumatic Inner Pipe Pipeline Upward Fixture

INTRODUCION

1) Fast adjustment, easy maintainance

When need to adapt to different wall thicknesses, the equipment can be quickly, conveniently and accurately adjusted in place to provide high work efficiency

2) DNQ16'' and above size pneumatic clamp has self-propelled system

Adjustable walking speed, lower air consumption and better climbing performance.

Double side expansion braking of cylinder is adopted for braking, with excellent braking force and braking speed.

The traveling system and the braking system form a gas path interlock to improve the flexibility and safety of ramp operation.

3) Limit device added to the expansion system

Fundamentally put an end to supporting the dead center. In previous cases, pipe jamming accidents have never occurred

Non-self-propelled Clamp (Manual Pulled)

Model Pipe Size Piston No.s Piston Power L W H Weight Cube
(mm) (KN) (mm) (mm) (mm) (kg) (m3)
HGDNQ6’’ 168 6X2 134 1473 150 150 36 .04
HGDNQ8’’ 219 6X2 209 1593 189 189 53 .06
HGDNQ10’’ 273 6X2 382 1665 240 240 60 .09
HGDNQ12-14’’ 305-357 6X2 405 1751 280 280 100 .14

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps

Self-propelled Clamp (Travels Under Its Own Power)

Model Pipe Size Piston No.s Piston Power Motor Power Motor Nos. L W H Weight Cube
(mm) (KN) (hp) (mm) (mm) (mm) (kg) (m3)
HGDNQ16-18’’ 406-457 8x2 959 1 1 2132 360 360 188 .29
HGDNQ20-22’’ 508-559 10x2 1057 1.5 1 2434 480 480 296 .59
HGDNQ22-24’’ 559-610 12x2 1268 1.5 1 2500 530 530 390 .72
HGDNQ24-26’’ 610-660 12x2 1268 1.5 1 2672 580 580 418 .90
HGDNQ28-30’’ 711-762 12x2 1748 1.5 1 2700 670 670 512 1.2
HGDNQ30-32’’ 762-813 14x2 2937 3 1 2938 690 690 733 1.4
HGDNQ34-36’’ 864-914 16x2 2937 3 1 3020 790 790 779 1.8
HGDNQ36-38’’ 914-965 18x2 2937 3 1 3188 860 860 865 2.4
HGDNQ40-42’’ 1016-1067 20x2 2937 3 1 3029 980 980 982 3.0
HGDNQ46-48’’ 1168-1219 20x2 4855 3 1 3100 1050 1050 1420 3.7
HGDNQ48-50’’ 1219-1270 22x2 4855 3 2 3517 1120 1120 1876 5.2
HGDNQ52-54’’ 1321-1372 22x2 4855 3 2 3520 1210 1210 1988 5.4
HGDNQ56’’ 1422 22x2 4855 3 2 3500 1310 1310 2187 6.6
HGDNQ60’’ 1524 22x2 4855 3 2 3500 1310 1310 2187 6.6
HGDNQ62-66’’ 1574-1676 24x2 4855 3 2 3864 1557 1557 2887 10.0

About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
