HGY70 Pipe Layer for Pipeline Construction
HGY70 Pipe Layer for Pipeline Construction
HGY70 Pipe Layer for Pipeline Construction
HGY70 Pipe Layer for Pipeline Construction
Specifications
Brand Name :
Suhigo
Model Number :
HGY70
Certification :
ISO9001 ISO9001 OHSAS18001 CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
70days
Packaging Details :
Seaworthy- Integral wax spraying anti-corrosion
Color :
Yellow and red
Product name :
HGY70 Pipe Layer
Description

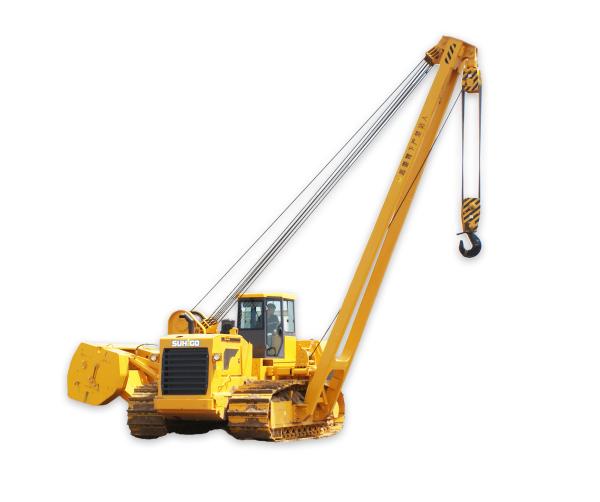

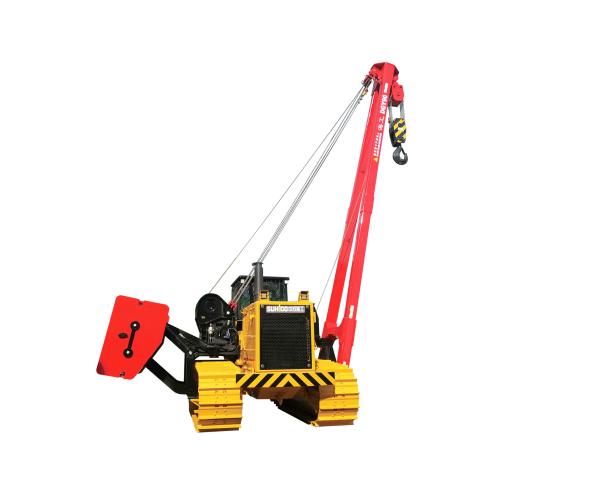

70t HGY70 Pipelayer for pipeline construction boom length 8.6m/9.6m optional

  • This series of products is an important construction equipment in the construction of oil and gas pipelines, mainly used for pipe layout, matching and trenching operations of large-diameter pipes.
  • In addition to the function of pipelayer, this product can also be used for pipe-hanging walking and docking operations in the construction of pipeline networks such as petroleum, natural gas, chemical industry, and water conservancy. The main uses are as follows:
  • This machine can also be used as a general crane. In mining, water conservancy, urban construction, petroleum, chemical and other large-scale projects, it is used for loading and unloading, lifting, stacking and other work. It is an ideal multifunctional construction equipment for the construction of oil, gas, water and other fluid transportation pipelines.

HGY70(70Tons)Technical parameters of crawler pipelayer

Project Name Main Parameters
Device model HGY70
Maximum lifting capacity t 70
Rated lifting capacity t 59.5
Machine mass t 49
Host transportation dimensions (length × width × height) mm 5660×3400×3540(mm)
Host transport mass t 37.5
Average ground specific pressure kPa 87.3
Minimum ground clearance mm 550
Maximum gradeability ° 25
Applicable environment Meet the ambient temperature of -45℃～+70℃ and the environment below 3600m above sea level
Engine model

Cuminns NTA855-C360

Cummins QSNT-C345
Rated power kW 257
Rated speed rpm 2000
Walk System chassis Chassis for pipelayers
Operation method joystick
Speed Forward km/h 3.6/6.6/11.5
Backward km/h 4.4/7.8/13.5
Track ground length mm 3620
Track center distance mm 2380
Track shoe width mm 760
Number of rollers 9×2

lifting

system

 luffing form Wire Rope Luffing
Operation method Hydraulic control handle
Boom Arm length mm 8600/9600(optional)
Maximum Lifting Height mm 7050/8030
Boom Luffing Angle ° 0～86
Hook speed (8 times) m/min 0～7.0
Amplitude change time (5 times) s 32
Executive standard ISO8813

HGY70 Pipelayer Shipping Schedule

Component Weight and Dimensions
S/N Names Weight(t) Size(mm) Volume (m3) Qty Remark
1 the host 36　 5630×3399×3540 60.6 1 set install cab
2 left bracket 1 2000×1211×2104 5.1　 1 item Install the guide pulley
3 Weight stack 5 1489×547×1394 1.17 1 set Each set contains 2 tablets
4 Weight bracket 2.74 2522×1120×1456 3.79 1 item
5 Boom components 4.57 8870×1756×1250 19.46 1 set
Total 49.3 90.12
Note: The boom assembly includes the following parts
1 Boom 2.2 8870×1756×873 12 1 item 8.6M Boom
2 lower rocker arm 0.9 1530×2035×490 1.53 1 item
4 pulley block 1.17 1050×1000×1100 1.15 1 set

About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Technical Features of Suhigo Pipelayer:

1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
