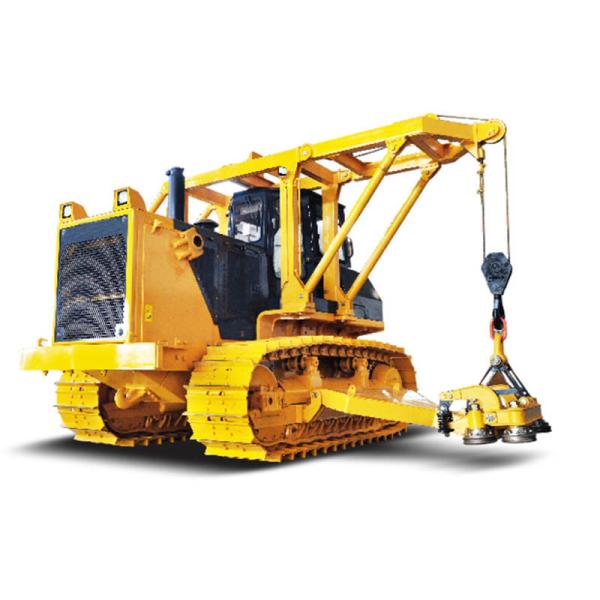

Pipeline Lifting And Moving Machine Crawler Pipe Moving Equipment
Pipeline Lifting And Moving Machine Crawler Pipe Moving Equipment
Specifications
Brand Name :
Suhigo
Certification :
ISO-9001
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
Interview
Payment Terms :
T/T
Delivery Time :
7-15 work days
Packaging Details :
Customized
Applicable industries :
Manufacturing plant, loading equipment,
Material Science :
High strength manganese steel
Name :
Pipe Handling Equipment
Core components :
PLC, engine, motor
Movement direction :
Left, Right, Forward, Backward
Advantages :
Save manpower, time, and costs
Description

Filter Bag Lifting And Moving Machine With Fast Moving Speed And Strong Lifting Capacity

Introduction

The braking system of the driving system is safe and reliable: the steering clutch is a normally closed, hydraulic separated steering clutch. When the operator releases the lever, the clutch will close, ensuring safety and reliability; The brakes are wet, floating, and band brakes with hydraulic assistance. By tightening the brake band and gripping the outer drum of the steering clutch, the final drive gear terminates transmission, thereby achieving turning or parking of the vehicle. The brake band is made of materials with high friction coefficient, which increases the positive pressure of the brake band and ensures that the moving machine has sufficient braking force.

Equipment model PYS70-2
Engine model Cummins NTA855-C360
Engine rated power/speed 235/2000 kW/rpm
Operating weight 41000 kg
Overall dimensions (length, width, height) 5780×6850×3950 mm
Maximum moving weight 16000 kg
Maximum lifting height 300 mm
Maximum moving distance 1000 mm
Suitable for steel rail specifications 50～75(GB 2585) kg/m
Quantity of counterweights × Weight 3×1550 kg
Operation mode Handle operation
Moving head clamping indication Optional
Mobile head surveillance camera Optional
Switchable bulldozer 320 horsepower bulldozer

Feature

1) The equipment is equipped with a hydraulic clamping type transfer head, which can adjust the clamping force and clamping angle, and can adapt to the steel rail specification of 50-75kg/m. The maximum lifting weight of the transfer head is 16t, the maximum lifting height is 300mm, and the maximum transfer step distance reaches 1000mm. It can adapt to the transfer of conveyor belts with a width of less than 2500mm.
2) The equipment is reserved with a working device interface for bulldozers, which can be switched to use at any time. Provide spare parts such as transfer rollers and bearings for easy replacement and use.
Pipeline Lifting And Moving Machine Crawler Pipe Moving Equipment

About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Pipeline Lifting And Moving Machine Crawler Pipe Moving EquipmentPipeline Lifting And Moving Machine Crawler Pipe Moving Equipment

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
