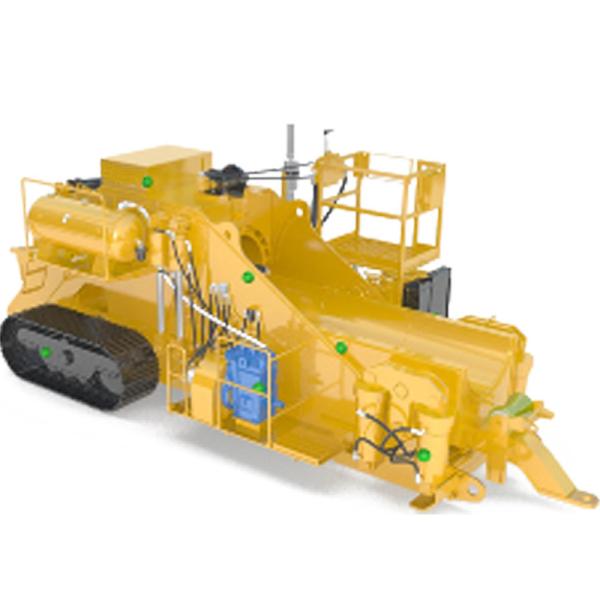

Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender
Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender
Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender
Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender
Specifications
Brand Name :
Suhigo
Certification :
ISO-9001 CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
70days
Packaging Details :
Seaworthy- Integral wax spraying anti-corrosion
Engine Power :
160kw
Applicable industries :
Manufacturing factory, construction engineering
Lift cylinder :
4-280x200mm
Application :
Pipeline construction machinery
Hydraulic winch tension :
12 ton
Core components :
Motor, pump, engine
Description

The Pipe Bending Machine Used For Oil And Gas Pipeline Construction Is From China

INTRODUCTION

Conduct large data optimization on the hydraulic cylinder of cold pipe bender. In order to shorten the bending speed of the cold pipe bending machine, the working stroke of the hydraulic cylinder is calculated precisely, and the bending speed is improved obviously. The theoretical experiment can save 10% time when bending a cold bend tube about 10°. Improve work efficiency.
1, In order to improve the bending speed, the operation control valve imported from Italy with large flow rate (about 400 liters per minute) is specially made. Extended service life.
2, The engine, hydraulic cylinder and other parts are all produced by professional manufacturers at China and abroad.

Technical Parameters of Suhigo Bening Machine:

Model HGCB620 HGCB1630 HGCB2236 HGCB2840 HGCB3648 HGCB4856
Pipe Size 6~20in 16~30in 22~36in 28~40in 36~48in 48~56in
Engine Power 46kw 77kw 118kw 132kw 160kw 160kw
Master cylinder 2-220x160mm 2-280x200mm 4-320x230mm 4-360x250mm 4-450x560mm 4-360x560mm
Lift cylinder 2-180x63mm 2-200x80mm 4-220x90mm 4-250x100mm 4-280x200mm 4-280x200mm
Hydraulic winch tension 1.5 ton 3 ton 7 ton 7 ton 8 ton 12 ton
Dimension 4450x2180x2175mm 6700x2520x2700mm 8400x3000x2800mm 8850x3180x3000mm 9800x3335x3235mm 8566x3190x3500mm
Weight 10 tons 21 tons 42 tons 50 tons 68 tons 93 tons

Technical Features of Suhigo Bening Machine:

1) The operation of all devices is controlled by the hydraulic system, safe and convenient

2) Adopt Cummins national three emission diesel engine and power pack, and low-temperature preheating system can be selected for option, with reliable performance and can adapt to severe work conditions.

3) The hydraulic system adopts top brand components such as Rexroth, and adopts unique preheating and cooling system, which improves the working efficiency and prolongs the service life.

Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender

About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender

Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender

Oil And Gas Pipeline Mandrel Pipe Bending Machine Cold Pipe Bender

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
