Specifications
Model Number :
DN560
Tensile Strength :
>15MPa
Uv Resistant :
Yes
Payment Terms :
T/T,L/C
Shape :
Clinder
Application :
Dredging, Marine Construction, Offshore Oil and Gas
Price :
usd5/pair
Color :
Orange /Yellow
Supply Ability :
300units/month
Material :
PE &PU foam
Installation :
Hot galvinised bolts nuts and washers
Installation Method :
Clamp or Bolt
MOQ :
1unit
Delivery Time :
7working days
Lifetime :
Long
Inner :
PU foam filled
Float Type :
Foam Filled
Place of Origin :
China
Out Shell Thick :
4~16mm
Packaging Details :
Standard sea worthy packaging
Oem/Odm Service :
Available
Thickness :
10mm
Brand Name :
Jiubei
Production Method :
Rotational molding
Corrosion Resistance :
Yes
Temperature Range :
-40℃~+80℃
Certification :
ISO
Production :
Rotational Molding
Description

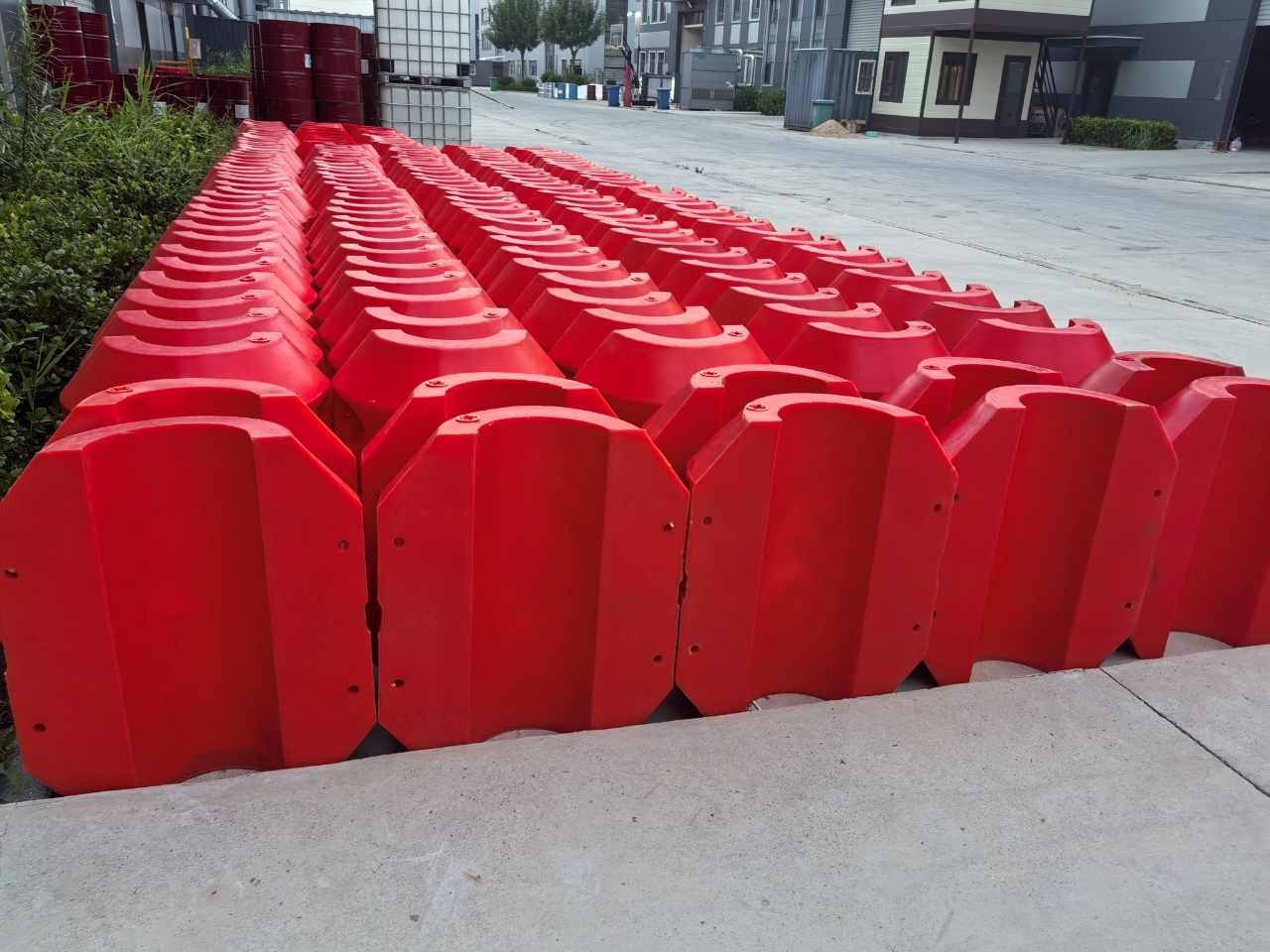

Heavy-Duty HDPE Pipe Floater for Dredging Pipelines | Polyethylene Pontoon Floats
Product Overview

Our Heavy-Duty HDPE Pipe Floaters (also known as dredging pipe pontoons or plastic pipe floats) are engineered specifically to provide exceptional buoyancy and supporting flotation for steel, rubber, and high-density polyethylene (HDPE) slurry pipelines used in marine dredging, sand mining, port expansion, and offshore land reclamation. Designed to withstand harsh oceanic conditions, severe hydrodynamic impact, and intense UV exposure, these floating pontoons maintain continuous floating stability for submerged and surface pipeline networks.

Key Features & Performance Highlights
  • Seamless Rotomolded Shell: Produced via full rotational molding with uniform wall thickness, seamless structural integrity, and no stress-crack vulnerabilities under dynamic ocean wave bending forces.
  • High-Density PU Foam Filling: Injected with closed-cell polyurethane foam that exhibits non-water-absorbent characteristics, retaining 100% buoyancy if outer shell damage occurs.
  • Superior Impact & Wave Resistance: Tough polyethylene material provides extraordinary impact toughness, absorbing ocean wave turbulence, water surges, and collision impacts without fracturing.
  • UV & Anti-Corrosion Defense: Formulated with premium UV stabilizers and carbon black, offering excellent resistance to marine salt, chemical corrosion, algae growth, and extreme sunlight exposure .
  • Easy Assembly & High Stability: Consists of two matching half-halves fastened together with heavy-duty hot-dip galvanized or stainless steel bolts and rubber shock pads for anti-slip clamping on pipes.
Applications
Industry Typical Application
Dredging & Mining Floating slurry discharge lines, sand mining pipelines
Marine Construction Temporary water intake/outfall lines, dewatering hoses
Environmental Remediation Floating oil spill recovery hoses, lake aeration lines
Civil Engineering River crossing pipelines, irrigation floating pipes
Aquaculture Floating feed or water circulation pipes in fish farms
Technical Specifications Table (Quick Reference)
Parameter Specification
Material HDPE (PE100 grade)
Buoyancy per unit From 15 kg to 850 kg (custom up to 1500 kg)
Standard inner diameters 110mm, 160mm, 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, 800mm, 1000mm, 1200mm
Outer diameter (varies) Typically 1.5x to 2.5x pipe OD
Length per unit 300mm, 500mm, 1000mm (custom lengths available)
Operating temp -30°C to +60°C
Density 0.95 – 0.98 g/cm³
Tensile strength ≥20 MPa
Fasteners SS304 or SS316 stainless steel bolts
Standard ISO 9001:2015 certified production
Competitive Advantages
  • 1. Precision Buoyancy Calculation SupportOur marine engineering team provides accurate buoyancy and spacing calculations based on your slurry density, pipe wall thickness, and wave environment to ensure optimal floating performance without pipe sagging or excessive movement.
  • 2. Reinforced Heavy-Duty StructureStructural reinforcement ribs and extra-thick bolting lugs prevent structural deformation under continuous dynamic bending forces, tow pull, and high wave impact.
  • 3. Complete Turnkey Dredging Pipeline SupplyBeyond floaters, we manufacture and supply matching Dredging HDPE Pipes, Rubber Discharge Hoses, and Flange Accessories, providing contractors with a complete, plug-and-play pipeline solution.
  • 4. Strict Quality Control & Factory Direct PricingEvery batch undergoes rigorous drop-impact testing, PU foam density testing, water absorption testing, and tensile strength evaluation prior to factory dispatch, ensuring long service life ($\ge 10$ years).
