High Automation Muti-layer composite HDPE PE Pipe Production Line

Description:

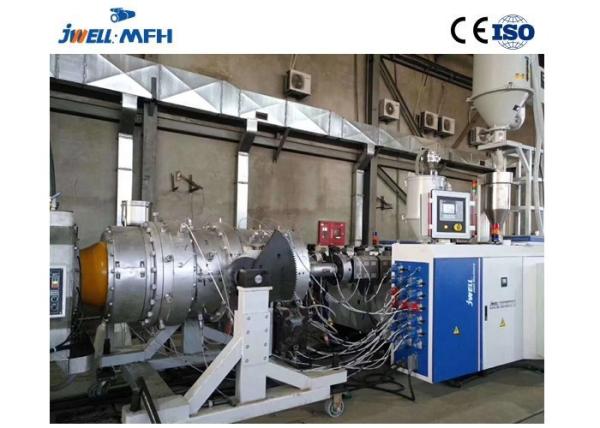

The composite multi layer PE pipe extrusion line is developed by Jwell based on European advanced technology and rich R&D experience . The mold is specially designed for producing multi layer pipes and technogoy is very mature. The line features of high output , low energy consumption , high automation and easy operation. It can produce two or three layer water supply , gas supply, cable protection pipes or other special use pipe. Pipe range from 20mm to 1200mm

Machine features:

• Advanced SIEMENS computer control system(PLC) to achieve the integration of the whole line and closed-loop control which can realize easy data analysis (energy consumption display and analysis), remote diagnosis (rapid after-sales service), equipment maintenance reminder (humanized reminder), raw material saving (advanced weight control technology to keep pipe wall thickness within a very narrow tolerance range) and so on ;

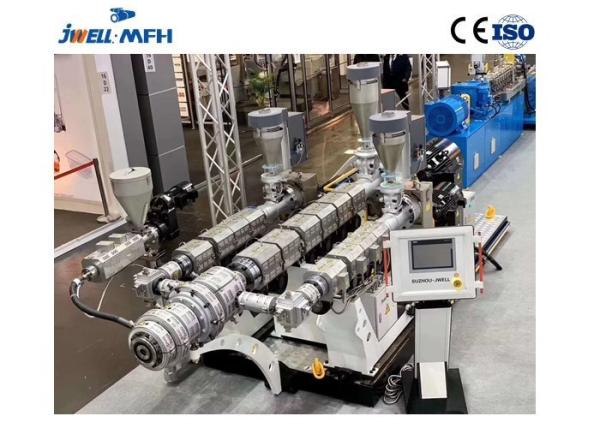

• The high output of polyolefin material and the high quality of pipe are obtained by the combination of spiral slotted feeding barrel and BM barrier mixed structure screw with 38 L/D ratio. Hard alloy coated screw and bimetallic barrel can ensure high efficiency operation for long time ;
• High torque precise gearbox and AC frequency conversion or permanent magnetic servo motor can ensure high output and low energy consumption in long run ;
• Optimized high speed mold ,multi-disk or wet calibrator can ensure high quality pipe in high speed production ;

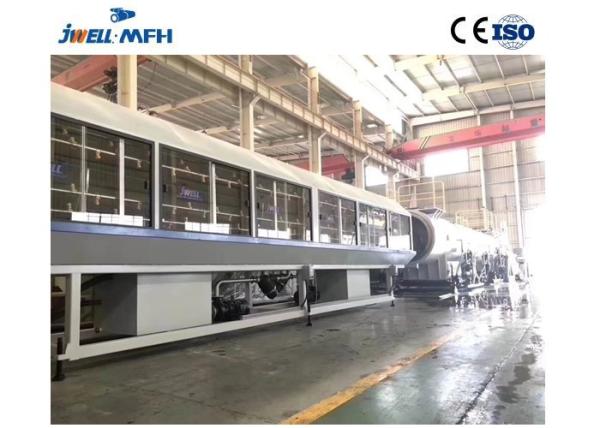

• The unique frequency conversion vacuum automatic control device perfectly solves the noise and realize of energy saving and accurate pipe size;
• The haul off unit equipped with servo motor ensures wide traction range, high precision synchronous operation and it adopts digital communication interface with extruder ;

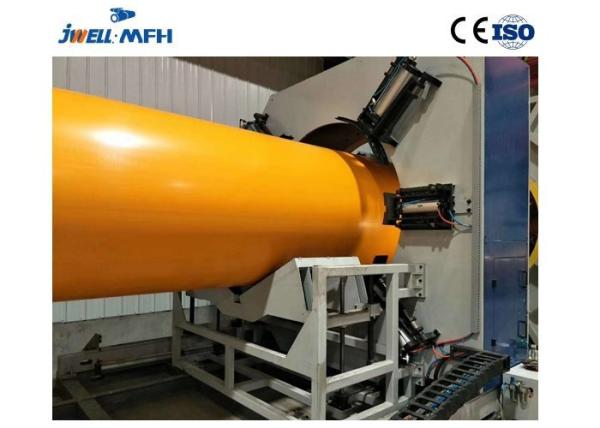

• Equipped with stable and perfect incision flying knife cutter (small diameter) and chipless double blades cutter (large diameter) .
• Adding and changing some parts, it could produce more than three layer pipes.

Machine specification:

Pipe application:

• Water supply
• Gas supply
• Drainage
• Cable protection

Pipe connection methods:

• Thermal fusion welding
• Electro fusion welding

Shipping and package:

• Wood Pellets
• wood box
• PE film

Company Introduction:
Jwell company is one of the biggest manufacturers of plastic extrusion machinery in the world. The production bases of Jwell company cover about 700,000 square meters and are consisted with 6 main production bases, which are located in Shanghai city where the head office of the company locates, Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Haining city of Zhejiang Province and Dongguan City of Guangdong Province. The company has more than 3000 staffs, about 480 technicians and managing staffs among them. And thanks to the high quality research and development groups, experienced electrical and mechanical engineers, advanced machining bases and qualified workshops of the company, we sell more than 2500 advanced extrusion lines every year and export to more than 100 countries.

Marketing team:

After-sale service:

• The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.
• Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible
• Buyer can send engineers to our JWELL company for training
• We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English
• We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
