Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Composite Floor LVT 4mm Sheet Extrusion Lines
Specifications
Brand Name :
JWELL
Model Number :
Plate and sheet
Certification :
CE&ISO&SGS
Place of Origin :
CHINA JWELL
MOQ :
Minimum Order 1set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
15 sets
Delivery Time :
75-90 work days
Packaging Details :
wooden package
Power :
Electricity
Voltage :
220V/380V
Condition :
New
Weight :
different
After-sales service provided :
Engineers available to service machinery overseas
Automatic grade :
Automatic
Description

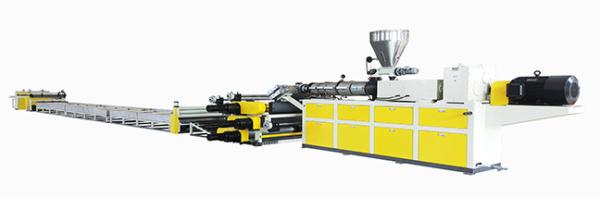

LVT Composite floor Extrusion Line

Description:

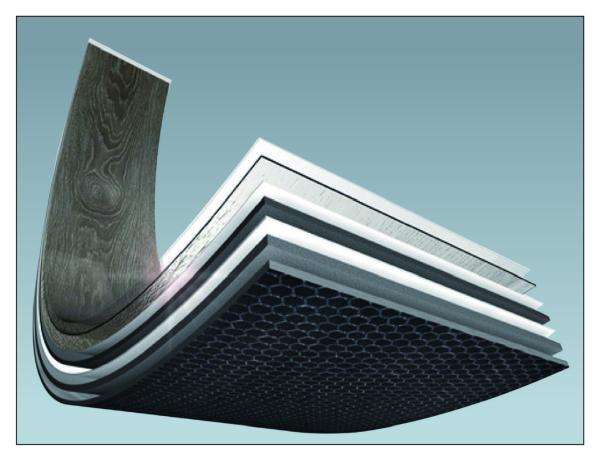

The LVT soft composite floor production line extrudes the floor substrate by the extruder, and then through a set of six-roll laminating machine, the substrate and the printing layer, the wear layer and the anti-slip layer are simultaneously composited, and the tension is released by tension, and the wear layer is worn. The precise control of preheating achieves the effects of no wrinkling, no shrinkage, no deformation during unwinding, high efficiency of extrusion composite production, and stable product quality.

Specifications:

Model SJZ80/156
Material PVC
Product width 1200mm
Product thickness 1.5-4mm
Extruder specification SJZ80/156
Roller specification Ф400
Qty of rollers 6pcs
Capacity(Max) 500kg/h
Main motor power 75kw

After-sale service:

Composite Floor LVT 4mm Sheet Extrusion Lines

1. The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.

2. Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible

3. Buyer can send engineers to our JWELL company for training

4. We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English

5. We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
