Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Recycled PET Thermoforming Sheet Extrusion Machine
Specifications
Brand Name :
JWELL
Model Number :
Jwell-PET
Certification :
CE&ISO&SGS
Place of Origin :
CHINA JWELL
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets
Delivery Time :
75-90 work days
Packaging Details :
wooden package
Condition :
New
Automatic grade :
Automatic
Voltage :
380V 50Hz or Customized
Material :
Virgin PET or recycled PET
Application :
PET package sheet
Control system :
Siemens PLC
Screw design :
Single screw or parallel twin screw
After-sales service provided :
Engineers available to service machinery overseas
Description

PET Thermoforming Sheet Extrusion Machine For Good Package

Description

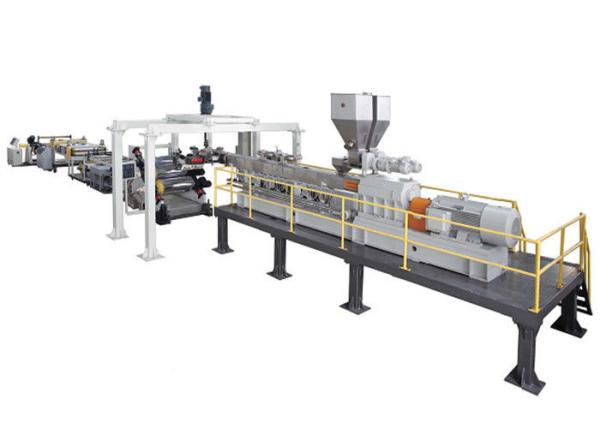

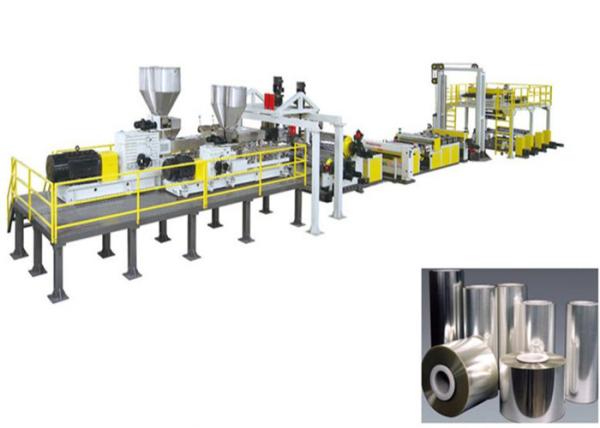

JWELL develops the parallel twin screw extrusion line for PET sheet,this line equipped with degassing system,and no need drying and crystallizing unit.The extrusion line has the properties of low energy comsuption,simple production process and easy maintenance.The segmented screw structure can reduce the viscosity loss of PET resin,the symmetrical and thin-wall calender roller heighten the cooling effect and improve the capacity and sheet quality.Multi components dosing feeder can control the percentage of virgin material,recycling material and master batch precisely,the sheet is widely used for thermoforming packaging industry.

Recycled PET Thermoforming Sheet Extrusion MachineRecycled PET Thermoforming Sheet Extrusion Machine

Specification

Model Multi layer Single layer Highly-efficient
Extruder specification JW75&52/40-1000 JW75&40-1000 JW95&65/44-1500
Thickness of the product 0.15-1.5mm 0.15-1.5mm 0.15-1.5mm
Main motor power 132kw/55kw 160kw 250kw/75kw
Max extrusion capacity 500-600KG/H 450-550KG/H 1000-1200KG/H

After-sale service:

Recycled PET Thermoforming Sheet Extrusion Machine

1. The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.

2. Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible

3. Buyer can send engineers to our JWELL company for training

4. We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English

5. We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
