PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
PP PE PC ABS Small PVC Profile Extrusion Line
Specifications
Brand Name :
JWELL
Model Number :
PROFILE
Certification :
CE&ISO&SGS
Place of Origin :
CHINA JWELL
MOQ :
Minimum Order 1set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
15 sets
Delivery Time :
60 work days
Packaging Details :
wooden package
Power :
Electricity
Voltage :
220V/380V
Condition :
New
Weight :
different
After-sales service provided :
Engineers available to service machinery overseas
Automatic grade :
Automatic
Description

Quick Detail:

Description:

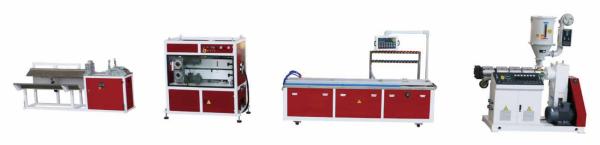

By adopting the foreign and domestic advanced technology,we successfully developed the small profile extrusion line.This line consists of single screw extruder,vacuum calibration table,haul off unit,cutter and stacker.The production line features of good plasticization,high capacity,low power consumption,etc.The main exturder speed controlled by imported AC inverter,and temperature controlled by Japanese RKC temperature meter,vacuum pump and traction gear reducer of the down steam equipment are all good quality products ,and also easy maintenance.

Applications:

Specifications:

Model YF50 YF108 YF180 YF240 YF300
Max width(mm) 50 108 180 240 300
EXtruder Model JWS45 JWS50 JWS65 JWS90 JWS120
Power(kw) 15/11 22/18.5 30/22 55/45 90/75
Cooling water(m3/h) 5 5 7 7 8
Compressed air(m3/min) 0.5 0.6 0.6 0.6 0.6

Competitive Advantage:
