Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Composite Belt Reinforced RTP Pipe Extrusion Line
Specifications
Brand Name :
JWELL-MFH
Model Number :
PE20-1600
Certification :
CE,ISO,SGS
Place of Origin :
CHINA JWELL
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60-70 work days
Packaging Details :
wooden pallets, wooden boxes and PE film
Application :
RTP Pipe
Plastic processed :
PE and fibers
Screw design :
Single-screw
Condition :
New
Automatic grade :
Automatic
Voltage :
380V 50HZ 3Phase or customized
After sale service :
Engineers available to service machinery overseas
Description

Aramid Yarns or Blet reinforced RTP Composite Pipe Extrusion Machine ​

Description:

The High pressure RTP pipe line is developed by Jwell based on European advanced technology

and R&D experience of the plastic pipe machinery for more than 23 years .

Composite Belt Reinforced RTP Pipe Extrusion Line

Machine features:

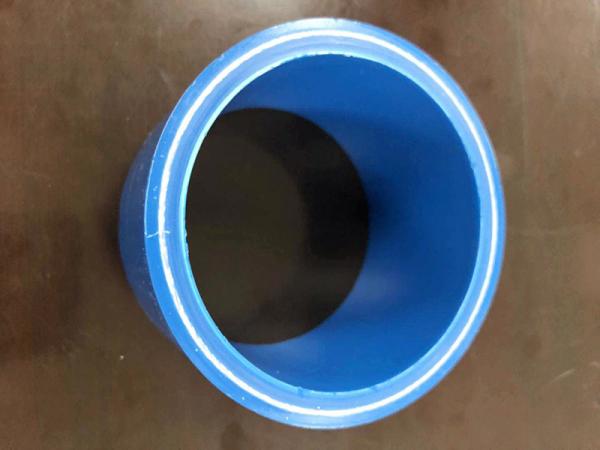

The thermoplastic reinforced pipe RTP has three layers: the inner layer is anti-erosion and wearing-resistant PE pipe; the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon fiber or fine metal thread); the outer layer is PE for protection use. The most popular reinforce material is Aramid fiber. The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The explode pressure can be 40Mpa.

Machine specification:

No. Machine model Pipe range (mm) Extruder Capacity (kg/h)
1 MFH-RTP-160 63-160 MFH-60/38 120-300
2 MFH-RTP-250 75-250 MFH-75/38 300-500
3 MFH-RTP-315 110-315 MFH-75/38 300-500

Application:

  • High pressure pipe

Composite Belt Reinforced RTP Pipe Extrusion Line

After-sale service:

1. The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.

2.Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible

3.Buyer can send engineers to our JWELL company for training

4.We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English

5.We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
