PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
PE PP PVC 6m Pipe Crusher Plastic Recycling Shredder
Specifications
Brand Name :
JWELL
Model Number :
DYPS
Certification :
CE&ISO&SGS
Place of Origin :
CHINA JWELL
MOQ :
Minimum Order 1set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
15 sets
Delivery Time :
60 work days
Packaging Details :
wooden package
Power :
Electricity
Voltage :
220V/380V
Condition :
New
Weight :
different
Shaft design :
Double
After-sales service provided :
Engineers available to service machinery overseas
Description

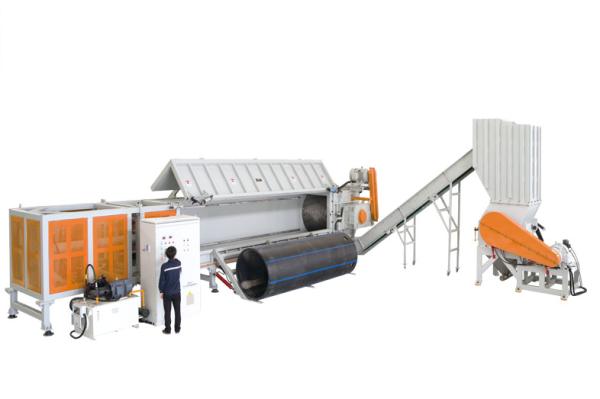

Jwell DYSSG Pipe Crusher and shredder Unit

Description:

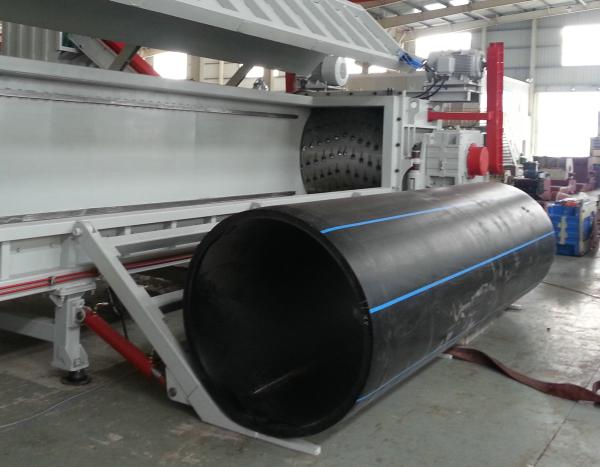

DYSSG shredder is able to shred the PE, PP, PVC pipe with dia.1200mm, the length of 3-6m pipe can be shredded directly without cutting, and the rotary speed is slow and stable. Variety of pipes is put into the horizontal feeding tank, and the tanks closed automatically, and push the pipe by hydraulic into the center axis for shredding. The material after crushing is transported by conveyor belt for secondary crushing in order to get the requested granule.DYSSG shredder has the main advantage of energy saving safe and efficient, and the system is controlled by PLC center control system.

Specifications:

MODEL

MAX. SHREDDER PIPE

(DIAMETER MM)

DRIVE POWER

(KW)

 MECHANICAL PUSHER POWER (KW)

OUT PUT

(KG/H)

ROTOR BLADE SWING DIAMETER

(MM)

 ROTOR SPEED (RPM)
DYSSG- 630 630 2*30 11 800-1000 Ф848 39
DYSSG- 800 800 2*37 11 1000-1200 Ф1028 33
DYSSG- 1000 1000 2*45 15 1200-1500 Ф1258 27
DYSSG- 1200 1200 2*55 15 1500-2000 Ф1478 23

After-sale service:

The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.

Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible

Buyer can send engineers to our JWELL company for training

We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English

We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
