Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Conical Twin Screw Extruder
Specifications
Brand Name :
JWELL-MFH
Model Number :
65/80/92
Certification :
CE&ISO&SGS
Place of Origin :
CHINA JWELL
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets
Delivery Time :
60-75 work days
Packaging Details :
wooden package
Name :
Twin screw extruder
Screw design :
Twin screw
Output :
High output
Certificate :
CE,ISO
Condition :
New
Plastic Process :
PVC
Application :
Pipe and Profile
Voltage :
380V 50Hz or customized
Description

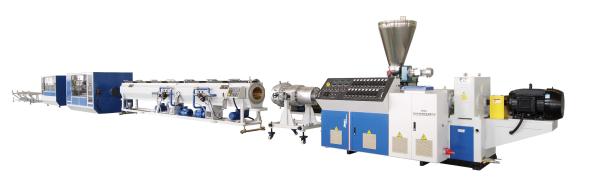

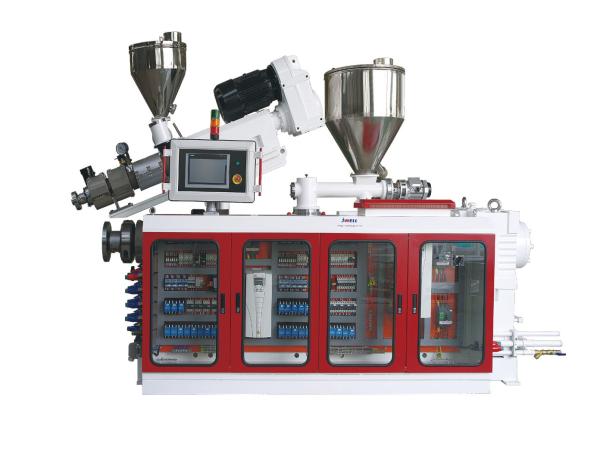

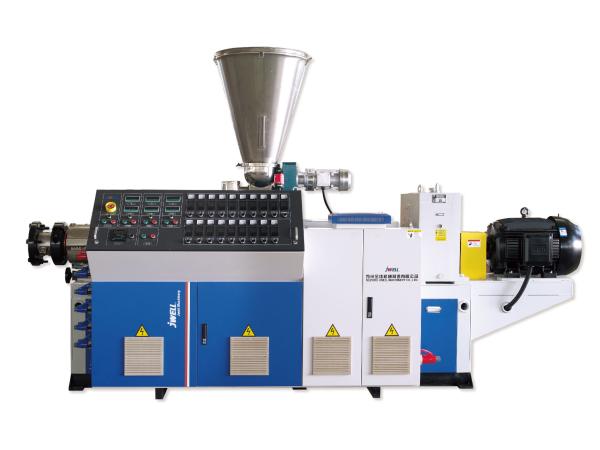

Jwell Conical Twin Screw Extruder For PVC Pipes

Description:

All kinds of SJZ and SJP extruders that our company designs especially for producing the PVC pipe and profile, our extruders can promise a good plasticization, high capacity and advanced electric control, and the electrical cabinet can be chosen by

customer according to their own demands.

Conical Twin Screw Extruder

Machine specification:

Conical twin screw extruder

Model SJZ45/100 SJZ51/105 SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Rotation speed(rpm) 34.7 34.7 34.7 34.7 34.7 34.7
Motor power(KW) 15 18.5 22 37 55 110
Capacity (kg/h) 80/110 100/120 130/150 200/250 360/400 600/800

Parallel twin screw extruder

Model SJP75/28 SJP93/28/31 SJP110/31 SJP120/31/26 SJP135/26
Rotation speed(rpm) 34.7 34.7 34.7 34.7 34.7
Motor power(KW) 15 18.5 22 37 55
Capacity (kg/h) 80/110 100/120 130/150 200/250 360/400

Application:

  • Pipe extrusion
  • Profile extrusion
  • Sheet extrusion

After-sale service:

Conical Twin Screw Extruder

1. The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.

2.Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible

3.Buyer can send engineers to our JWELL company for training

4.We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English

5.We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
