440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
Specifications
Brand Name :
HUASU
Model Number :
PVC Fiber Enhancing Hose Extrusion Line
Certification :
CE, ISO9001
Place of Origin :
Shandong, China (Mainland)
MOQ :
1 Line
Price :
USD 300-100000 PER SET
Supply Ability :
40-60 WORKING DAYS
Delivery Time :
30-60 monthes
Packaging Details :
THE PACKING IS SUITABLE FOR OCEAN TRANSPORT
Payment Terms :
T/T
Automatic Grade :
Automatic
Voltage :
220-440V
Description

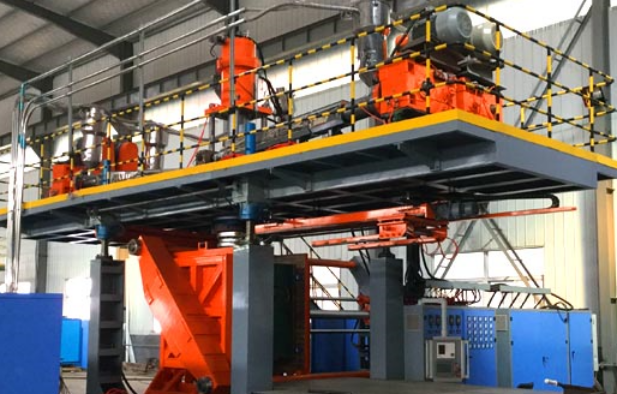

HUASU 10000L HDPE Blow Molding Machine Automatic HDPE Bottle Making Machine

No. specifications 2 layers 3 layers 4 layers
1 Extruders Screw Diameter 150/150 125/125/125 125/125/125/125
Motor 160/160kw 132/132/132kw 132/132/132/132kw
Plasticizing Capacity 950kg/h 950kg/h 100kg/h
L/D 351 351 351
Max Screw Speed 60RPM 60RPM 60RPM
2 Die Head Accumulator capacity 400 L 400 L 400 L
Heating Load 140kw 140kw 150kw
Max. parison weight 300kg 300kg 300kg
3 Clamping unit Clamping Horizental Size 3000x3600mm 3000x3600mm 3000x3600mm
Clamping Force 6000 KN 6000 KN 6000 KN
4 Hydraulic System Hydraulic Drive motor(Main) 75 kw 75 kw 75 kw
Hydraulic Drive motor(Parison Control) 11 kw 11 kw 11 kw
Oil Tank Capacity 1800L x 2 1800L x 2 1800L x 2
5 Machine Weight 160T 220T 260T
6 Dimention L*W*H 15x14x10m 18x14x10m 18x14x10m
7 Total Power 800kw 830kw 1080kw
8 Average power Consumption 397kw 443kw 560kw

440V Automatic Plastic Pipe Extrusion Line Consists Of Extruder , Water - Spraying Tank
