OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit
OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit
OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit
OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit
Specifications
Brand Name :
Shandong Huasu Brand
Model Number :
DWC Pipe Extrusion Pruduction Line
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
US $10,000-197,000/ Piece
Payment Terms :
L/C, T/T
Supply Ability :
5 sets/month
Delivery Time :
30 working days
Packaging Details :
standard package or as required
Name :
Plastic Pipe Extrusion Line
Warranty :
12 Months
Product Type :
PE Pipe
Application :
Electrical Conduit
Specification :
OD25 - OD2000mm corrugated pipe extrusion lines
Description

OD25 - OD2000mm Plastic Pipe Extrusion Line Electrical Conduit

Plastic Pipe Extrusion Line General information

The wall of this Pipe is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, negative pressure resistance, anti-bending, good negotiability, so it is suitable to conveying gas, liquid and powder, widely used in industry agriculture, construction and irrigation, etc.

Plastic Pipe Extrusion Line Parameters

NO. Internal Diameter( mm) Outside Diameter ( mm) Remark
1 700
2 800
3 900
4 1000
5 1100
6 1200
  • Environment Condition

Location Workshop
Power Supply No dangerous area, No power stop area
Humidity degree ≤85%
Temperature 0-36℃
  • Work Condition

Power 380 V x 50 Hz x 3 Phase (according to customer requirement)
Total Power 735kw, production energy consumption is about 445kw
Cooling Water Recycling water. ≤20℃, ≥0.3Mpa, ～3T/h
Compressed air 0.3m3/min, ＞0.5Mpa
  • Main Technical Performance
Extruder Motor Max. Output Note
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h

1. The output capacity varies with the materials and the operation conditions.

2. Line speed: According to the thickness, pipe standard and operation condition.

3. Operation direction: From Right to Left.

4. The color of the line: HUASU standard color.

5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.

  • Detailed technical information
No. Name & Model Quantity

01

 Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
02 Forming machine SBCJ-1200H 1 set
03 Spray water tank SBSC-1200H with haul-off machine 1 set
04 Planetary chip free cutting machine SBQG-1200H 1 set
05 Unloading bracket SBXL-1200H 1 set
06 PLC control system 1 set

07

 Molds 39 pairs(double-layer online expansion) ID 700mm die head water sleeve mould block 1 set
ID 800mm die head water sleeve mould block 1 set
ID 900mm die head water sleeve mould block 1 set
ID 1000mm die head water sleeve mould block 1 set
ID 1100mm die head water sleeve mould block 1 set
ID 1200mm die head water sleeve mould block 1 set
08 Spare parts 1 set

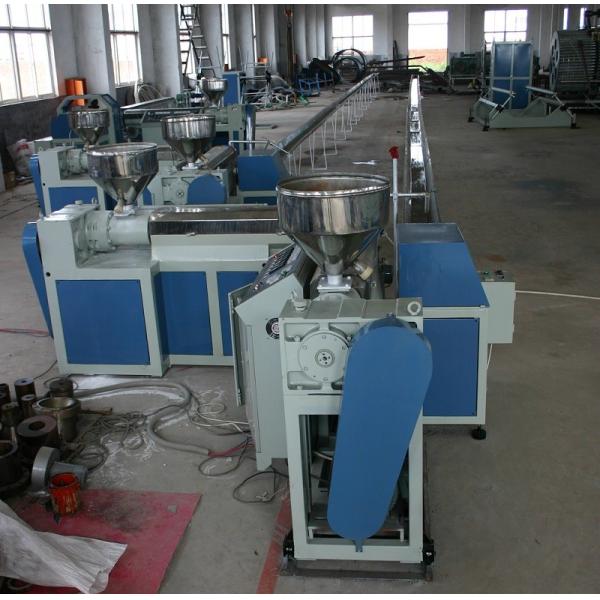

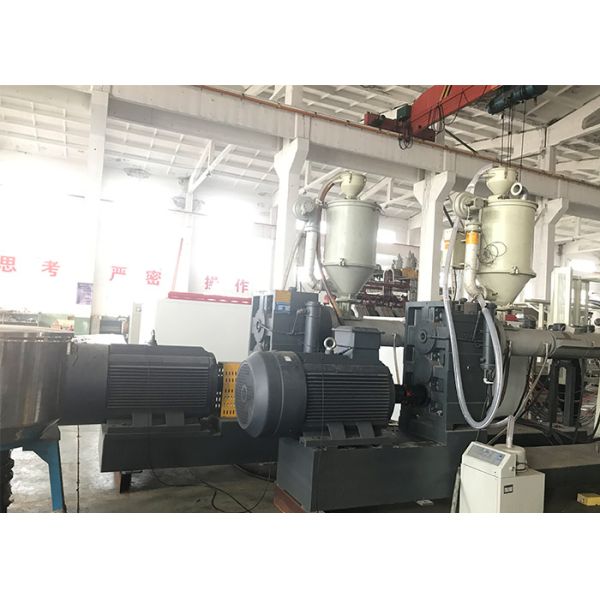

Photos of Double Wall Corrugated Pipe Corrugator

OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit
