25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine

Detailed technical information of 25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine

1.0 Single Screw Plastic Extruder SJ-55X30

--Barrel screw Hardness of screw HV>740

--Material 38CrMoAlA Hardness of barrel HV>940

--Nitriding handling

Slotted barrel with water-cooled forced feeding

--Depth of barrel nitriding 0.4--0.7mm

--Depth of screw nitriding 0.3--0.6mm

--Diameter of screw 55mm

--L:D 30:1

Heating& cooling

--Barrel heating zone 3 zones x 3.5kw

--Barrel cooling zone 3 zones x 0.18kw

--Power of barrel heating 10.5kw

Driving

--AC Motor 22kw

--Inverter ABB or Yaskawa

--Wheel Box Gear driving

--Gear Material 20CrMnTi

--Gear Type Helical Gear

--Max. Output 70kg/h

1.1 Auto Material - feeding System

--Dryer 1pcs

--Vacuum Feeder 1pcs

2.0 Forming-Machine SBCJ-63

The molding machine adopts closed molding module chain and closed design. The modules are accurately matched with the mold base, so that each pair of molding modules can be interchanged, vacuum molding and water cooling. The die base is made of high-quality alloy and quenched, tempered and nitrided. Dovetail groove is used between the die base and the module for accurate positioning, mechanical locking and convenient specification replacement. The sliding part on the workbench is made of 40Cr and the surface is strengthened by ion nitriding process, so it has a long service life.

--Module OD 32-40-50-75 mm

--Maximum speed 8m/min

--Quantity of module 44 pairs (Aluminum Molds)

--Inverter ABB or Yaskawa

--Driving motor 2.2kw

--Central height (mm) 1100mm±50mm (adjustable)

--Auto—lubricating system Slide way self-lubricating

--Cooling mode Air Cooling

--Adjustment Three-dimensional Adjustable

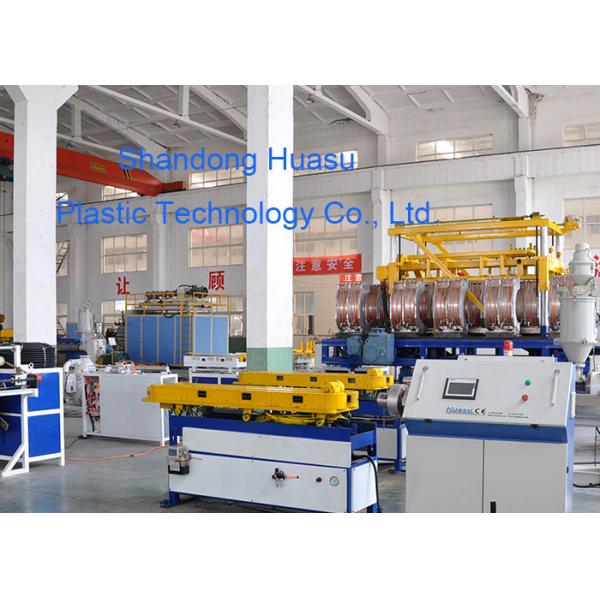

Photo of 25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine
