2-8m/Min Single Wall Corrugated Pipe Production Line Auto Feeding System
2-8m/Min Single Wall Corrugated Pipe Production Line Auto Feeding System
Specifications
Brand Name :
SD HUASU
Model Number :
SJ 45-75
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 SET
Supply Ability :
50 SETS/MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Pipe diameter :
5-160 mm
Name :
Single Wall Corrugated Pipe Production Line
Output :
2-8m/min
AC Motor :
60kw
Inverter :
ABB
Feeding System :
Auto Feeding System
Description

2-8m/Min Single Wall Corrugated Pipe Production Line Auto Feeding System

The Single Wall Corrugated Pipe Production Line are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. .
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc.

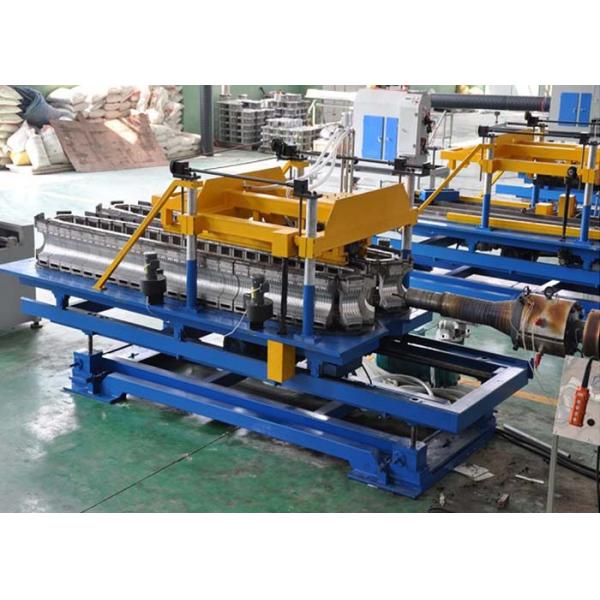

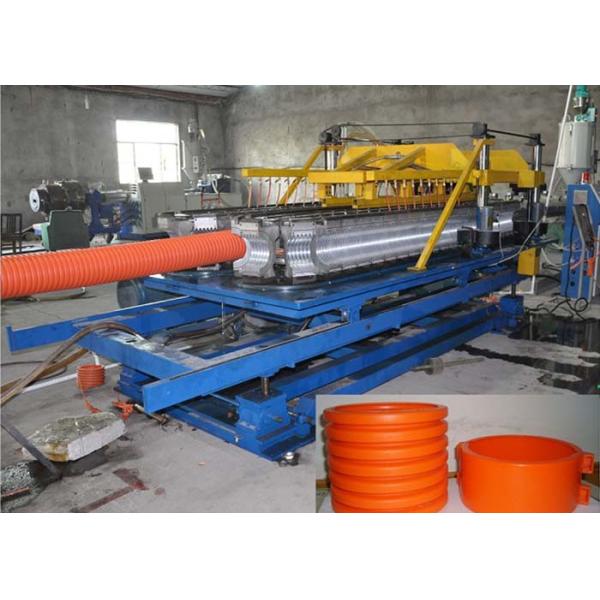

SDHS series plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are specially used as wires of the up-market cars.
SDHS high speed single wall corrugated pipe machine is developed on the basis of our original single wall pipe machine.The moulds are moved by gear on the runway.It is equipped with specially designed water cooling sealing system,and the lubrication oil can be injected automatically.In the forming machine, for small sizes mould,it can be set with two mould chambers which can make two different sizes of pipes only by adjsuting the height of forming machine automatically.All these features improve the production speed of single wall corrugatede pipes to a great exrent,which can reach 20-25m/min.
CONFIGURATION

No.

Name & Model

Quantity
1.0 Single Screw Extruder SJ30/30 1 set
2.0 Molds

4mm die head mould block

4mm

1 set

6mm die head mould block

6mm

1 set

8mm die head mould block

8mm

1 set

12mm die head mould block

12mm

1 set
3.0 Forming Machine 1 set
4.0 Winding Machine 1 set
5.0 Control System 1 set

2-8m/Min Single Wall Corrugated Pipe Production Line Auto Feeding System2-8m/Min Single Wall Corrugated Pipe Production Line Auto Feeding System

Qingdao Huasu Plastic Technology Co., LTD is a professional plastic extrusion machines manufacturer which stands by the Jiaozhou Bay. Converged with the national first-class scientific talests, our company is engaged in the study of new- type plastic machines and the conversion of international high-and –new technology. Cooperating with scientific research instifutions and institutions of higher education , we are converting the newest scientific payoffs at top speed. We will supply you the high-performance and high-tech plastic machines, Hollow sheet machine, Corrugated pipe machine, PVC and WPC foam board making machine
