850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe
850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe
850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe
850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe
Specifications
Brand Name :
Shandong Huasu Brand
Model Number :
DWC Pipe Extrusion Pruduction Line
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
US $55,000/ Piece
Payment Terms :
T/T
Supply Ability :
5 sets/month
Delivery Time :
30 working days
Packaging Details :
standard package or as required
Name :
HDPE Pipe Extrusion Line
Usage :
Electrical Conduit Rigid Pipe
Spray water tank :
SBSC-1200H

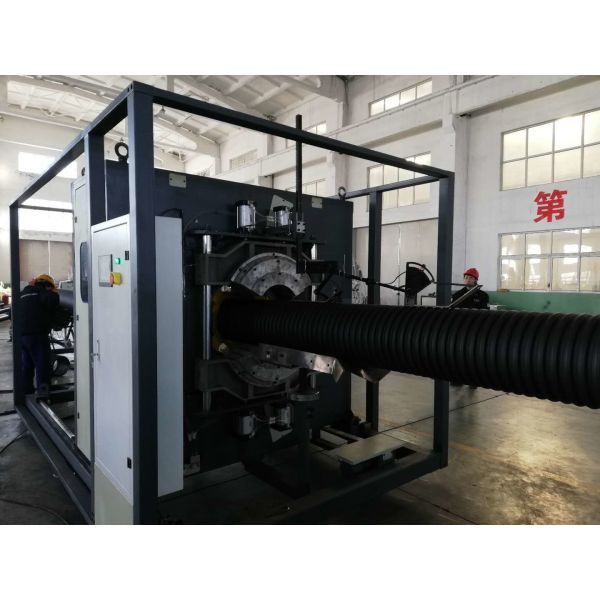

Planetary chip free cutting machine :
SBQG-1200H
Unloading bracket :
SBXL-1200H
control system :
PLC control system
Description

850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe

Flow chart of PE pipe extrusion line

Raw material + additive + color masterbatch→ mixing → vacuum feeding machine → hopper dryer → single screw extruder→ mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → winder

Main Technical Performance of HDPE Pipe Extrusion Line

Extruder Motor Max. Output Note
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h

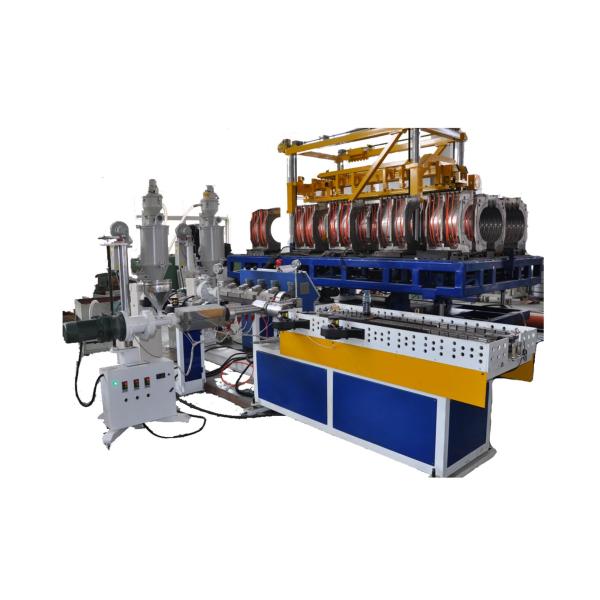

Photo of Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Production Machine Line

850kg/H HDPE Pipe Extrusion Line Electrical Conduit Rigid Pipe

Single Screw Extruder SJ-120/33 (3 sets)

Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;

Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;

Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;

Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;

Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;

Product tags

extrusion hdpe electric pipe

,

160-250mm pvc pipe extrusion line

,

hdpe coil pipe
