400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
Specifications
Brand Name :
Shandong Huasu Brand
Model Number :
DWC Pipe Extrusion Pruduction Line
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$3,000.00 - $250,000.00/ Set
Payment Terms :
T/T
Supply Ability :
5 sets/month
Delivery Time :
30 working days
Packaging Details :
standard package or as required
Model :
SBG 600H
Line speed :
fast speed
Mould blocks :
36 pairs
Voltage :
380V
Description

Shandong Huasu Brand Double Wall Corrugated Pipe Extrusion Production Line

Technical Parameters of double wall corrugated pipe extrusion line

Model

Pipe Dia.

(MM)

Output

(KG/H)

Main Power

(KW)

 Corrugator Type
SBG-160 Φ63-Φ160 300-400 0.7-7 Horizontal
SBG-250 Φ75-Φ250 450-600 0.5-5
SBG-400 Φ200-Φ400 500-700 0.5-5

Pipe Diameter List:
Application: Water drainage
Pipe length: 6m
Recommended raw material: new material for PE double wall corrugated pipe;
Color: Outer layer is black, inner layer is blue;
Pipe list and pressure grade: pipe section drawing according to Huasu standard; belling on-line;

Main Technical performance
1. Material:PE
Extruder:- SJ 90/33
Material:- PE
Output:- 400-500kg/h

Extruder:- SJ 75/33
Material:- PE
Output:- 200-300kg/h

The output capacity varies with the materials and the operation conditions.
2. Line speed:0.3~3.5m/min°according to the thickness and operation condition)
3. Operation direction:From right to Left°
4. The color of the line:JWELL According to Huasu’s standard.
5. HUASU remains the right to improve the specification of the line

Automatic feeder and drier
feeding type vacuum suction method
Drying type Automatic hot wind

Extruder
Type SJ 90×33

Screw:-
Diameter 90mm
L/D 33:1
Material 38CrMoAlA
Treatment Nitrided treatment

Barrel
Material 38CrMoAlA
Treatment Nitrided
Heating control zones 6
Heating power 8KW×5
Cooling system By blower fan
Cooling power 0.55KW×5

Gearbox
Material of the house QT200
Gear type Helical gears
Material of the gear 20CrMnTi
Heat treatment of the gear surface:- Quenching
Bearings Chinese famous bearing
Lubricating system Press system
Cooling System Equipped with separate Cooling System

For more details, please contact Ellen Liu.

400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line

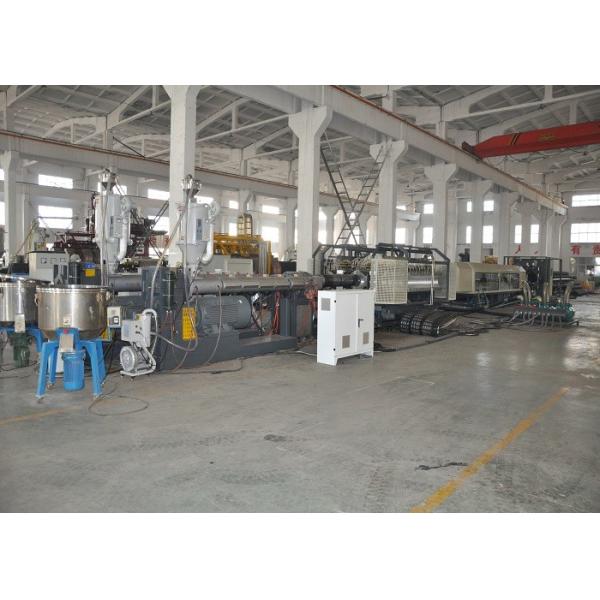

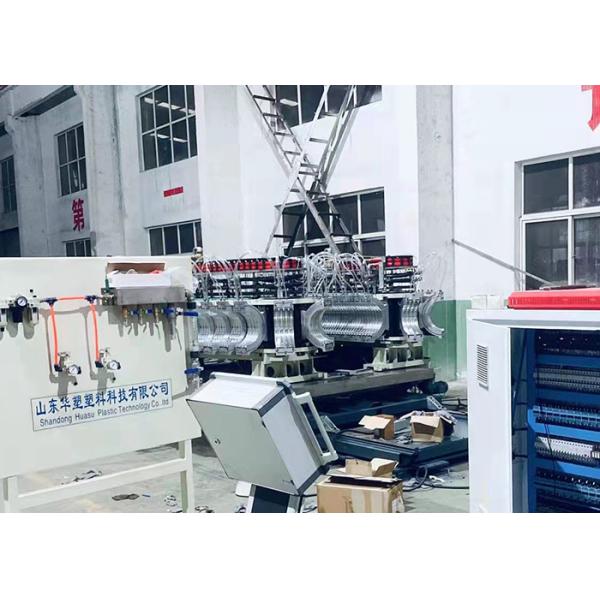

Photo of double wall corrugated pipe extrusion line

400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
