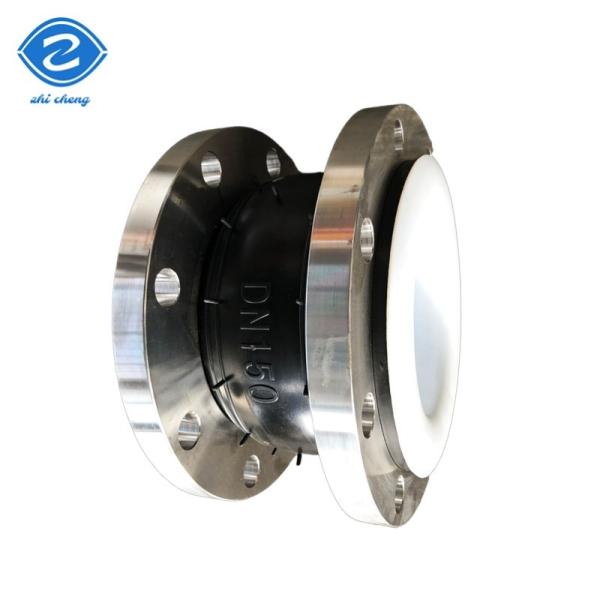

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
Specifications
Brand Name :
ZhiCheng
Model Number :
ZCF-310
Certification :
CE
Place of Origin :
Gongyi, China
MOQ :
1
Price :
CN¥5-CN¥121
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Production capacity 8000 pieces per month
Delivery Time :
5-10 work days
Packaging Details :
1. plastic film wrapped products 2. packing in cartons (according to product size and caliber) 3. loading wooden cases (1.1m*1.1m*1.1m) 4.Transportation: by sea or by air.
Warranty :
1year
Customized support :
ODM, OEM
Connection :
Flange
Product name :
Flexible Joint Rubber Expansion Bellows
Flexible Joint Rubber Expansion Bellows :
EPDM, CR, NBR, NEOPRENE
Nominal diameter :
DN25-DN3000
Line type :
Flange end or thread end
Flange standard :
DIN, BS, JIS, ANSI
Applicable temperature :
-15~80℃(Special -30~150℃)
Applicable media :
Air, water, sewage, sea water, acid, alkali, oil etc
Working pressure :
6-40bars
Test pressure :
1.5 times of working pressure
Explosion pressure :
2 times of working pressure
Description

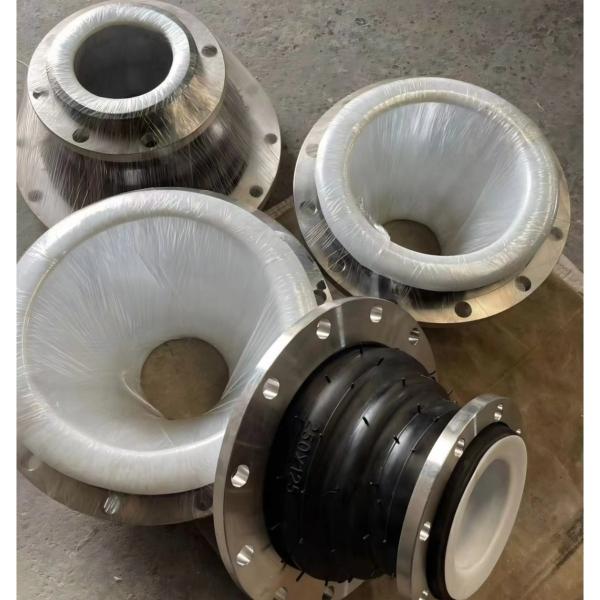

Oil and Acid Resistant Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling

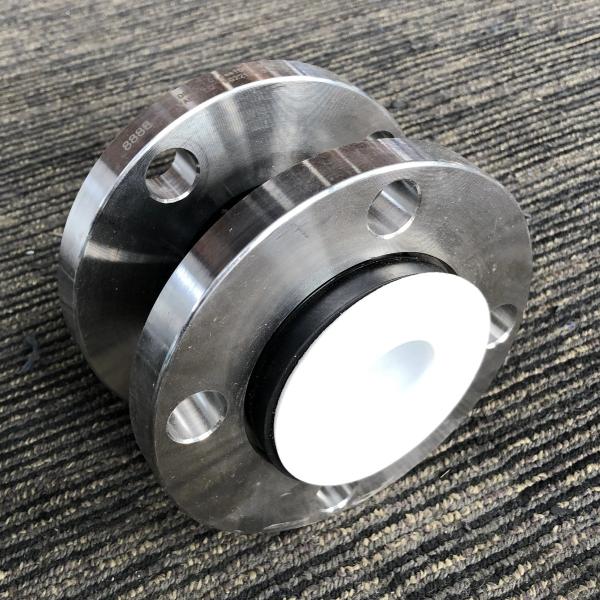

Tetrafluoroethylene has excellent chemical resistance and corrosion resistance, and is one of the most corrosion-resistant materials in
the world today.It can all other chemicals except for melting and liquid tetrafluoroethylene, and does not change when boiled in
strong water. F4 can effectively prevent the medium inside the pipeline from corro the rubber joint, improve its corrosion resistance,
and resist the erosion of most chemical media.
Key Features:
  • Good elasticity for vibration and noise reduction
  • SS304 flange connection
  • Single sphere rubber expansion bellows design
Why Choose ZHICHENG Products?
  • 24 hours online service - anytime, anywhere support
  • 100% quality inspection before shipment
  • Strong production capability and strict quality control
Material Specifications
No Name Material
1 Outer/inner rubber NR, EPDM, NBR, Neoprene etc.
2 Frame Nylon cord fabric
3 Pressurized ring Steel wire strand
4 Flange Carbon steel galvanized, paint ductile iron, stainless steel etc.
Operation Conditions
Parameter Value
Working temperature -15℃~80℃ (-30℃~150℃)
Working pressure 6-40 bars (PN6-PN40)
Test pressure 1.5 times of working pressure
Explosion pressure 2 times of working pressure
Applicable media Air, water, sewage, sea water, acid, alkali, oil etc.
Main Connection Dimensions
Nominal diameter Length (mm) Axial displacement (mm) Horizontal movement (mm) Deflection angle (a1+a2)° Special length (mm)
32 (1 1/4") 95 9 6 15° 130/150/200
40 (1 1/2") 95 10 6 15° 130/150/200
50 (2") 105 10 7 15° 130/150/200
65 (2 1/2") 115 13 7 15° 130/150/200
80 (3") 135 15 8 15° 130/150/200
100 (4") 150 19 10 15° 130/200
125 (5") 165 19 12 15° 130/150/200
150 (6") 180 20 12 15° 130/150/200
200 (8") 210 25 16 15° 130/150/200
250 (10") 230 25 16 15° 130/150/200
300 (12") 245 25 16 15° 130/150/200
Note: Size range from DN25-3000 are all available, special size and length can also be customized. Please contact us for exact data.

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows

Product Description
Rubber expansion joints consist of inner and outer rubber, cord layer and steel wire strand, which are vulcanized and then combined with
metal flangesor loose sleeves of parallel joints. It is widely used in various pipeline systems.

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows

The rubber expansion joints allow for four way movements, and they are molded from synthetic rubber and nylon cord. This
design reduces vibration and noise, and compensates thermal expansion and contraction caused by temperature change.
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows

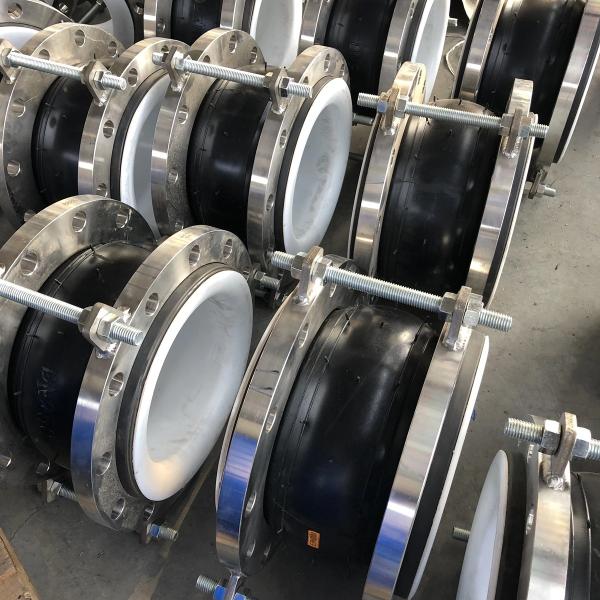

Production
ZHICHENG has a strict quality control system, standard production processes, and standardized factory testing to ensure every product
meets customer requirements and delivers high-quality performance.

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
Packaging & Shipping
Packaging
  • Inner package: plastic film with carton cases
  • Outer package: wooden cases (usually 1100mm×1100mm×1100mm)
Shipping
Transportation: by sea or by air.

DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows

Product Installation
We provide complete installation instructions, notes, and maintenance guidelines with every order. Below is an installation
example of a DN1800 rubber expansion joint.
DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows DN25-DN3000 Flange End Flexible Joint Rubber Expansion Bellows
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are manufacturers of rubber expansion joints, metal expansion joints, flexible hoses, dismantling joints, trimmer joints,
flange adapters and flanges with over 30 years experience.
Q: Do you have a catalogue?
A: Yes, we do. Please let us know your email or instant messenger and we will send you our catalogue.
Q: Can you provide drawings and technical information?
A: Yes, our specialist technical department will design and supply drawings and technical data.
Q: Do you provide samples? Are they free of charge or do you charge for them?
A: Yes, we can provide samples free of charge, but transport costs are borne by the customer.
Q: Can the products be manufactured to the customer's requirements?
A: Yes, the above specifications are standard specifications and we can design and manufacture as required.
