Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface

Cold Pipe Cutting And Beveling Machine Features:

1. The body uses aeronautical aluminum alloy material, gear ring using titanium alloy material, light weight, high strength;
2. High strength structural design, body without through hole, no disconnection, strong integrity, uniform force;
3. Gear Ring dual guide rail design, uniform force, stable operation;
4. Standard with new type tool frame, single guide rail design, worm gear and trapezoidal threaded screw drive, stable and reliable;
5. Automatic return one point cutting tool feeding, feed adjustment range is unlimited;
6. All activity accessories are humanized fast connection design, simple and efficient installation;
7. Equipped with 3-axis hinge, flexible installation of equipment, no space restriction, easy to accept and transshipment;
8. Optional a variety of functional accessories, including roundness compensation tool frame, drilling and milling accessories, cylindrical cutting accessories, internal boring accessories, 3PE anticorrosion layer Removal accessories, bridge tool frame accessories, narrow gap installation accessories, reverse mounting kit, high-speed beveling positioning accessories, automatic pair tightening kit and so on;
9. Due to the uniform bolt specifications, the entire machine handling and adjustment, only need one wrench can be done.

Cold Pipe Cutting And Beveling MachineSlides

■ Thick-wall tool slide (conventional): It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.

Pipe Cold Cutting Tools Models Dimension

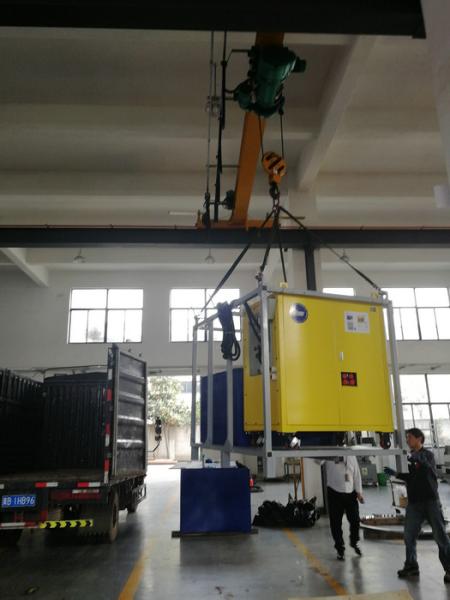

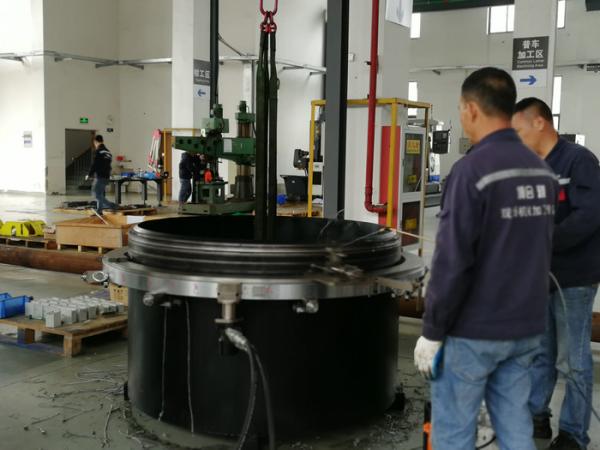

Working On Site
