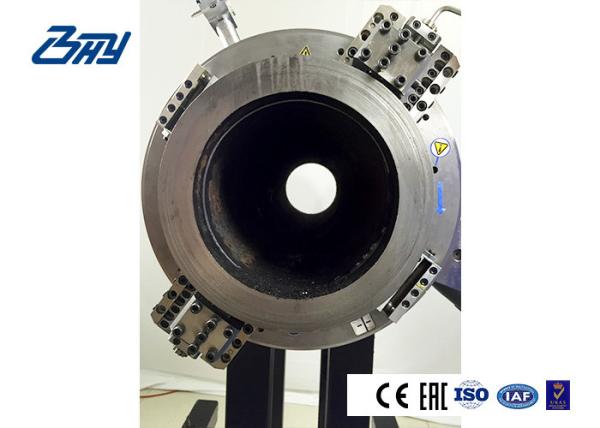

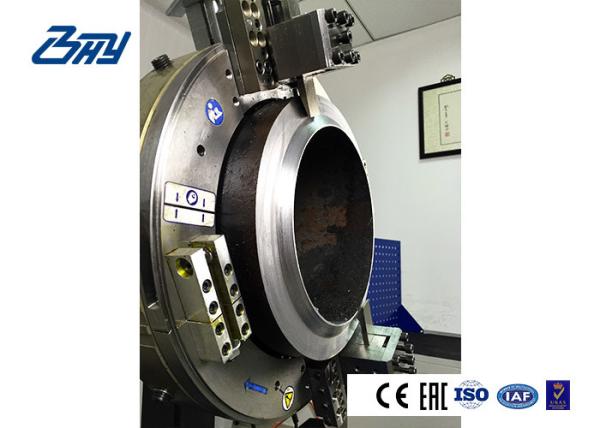

Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling
Specifications
Brand Name :
BHY
Model Number :
SFM1218E
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Suzhou, China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/year
Delivery Time :
15-30 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Name :
Pipe Cutting & Beveling Machine,
Drive Mode :
Electric
Bevel type :
V,Y,J,compound shaped
Tube material :
Stainless Steel
Brand :
Bohyar
Structure :
Split frame structure
Description

Stainless Steel Pipe Cutting & Beveling Machine, 30mm wall thickness

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

Stainless Steel 18in Pipe Cutting Machine, 30mm wall thickness, Cutting & Beveling

Models

Model

Processing

range (in)

Max wall

thickness (mm)

 Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric
SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic
SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.
