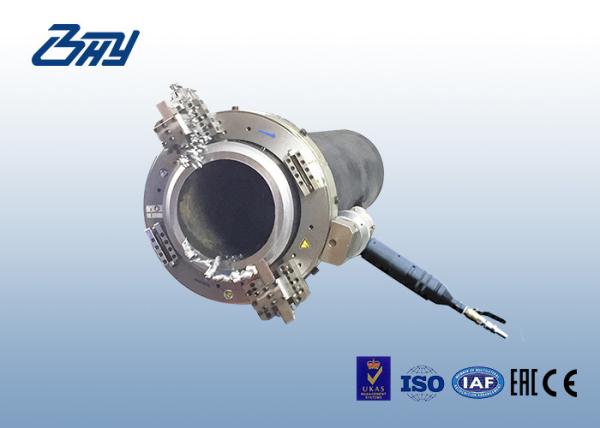

Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Lightweight Pneumatic Pipe Cutting And Beveling Machine
Specifications
Brand Name :
BHY
Model Number :
SFM0612P
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T,
Supply Ability :
1000 sets/year
Delivery Time :
30-45 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Model :
SFM0612P
Drive Mode :
Pneumatic
Dimension :
1000*990*305mm
Net Weight :
45kg
Application Range (O.D.) :
6" - 12"(168.3-323.9mm)
Application :
Nuclear power, thermal power, chemical plant, natural gas, boiler plant, pharmaceutical factory
Shipping Weight :
75kg
More :
All standard accessories included
Description

Lightweight Pneumatic Pipe Cutting And Beveling Machine Adjustable Bearing System

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

Lightweight Pneumatic Pipe Cutting And Beveling Machine

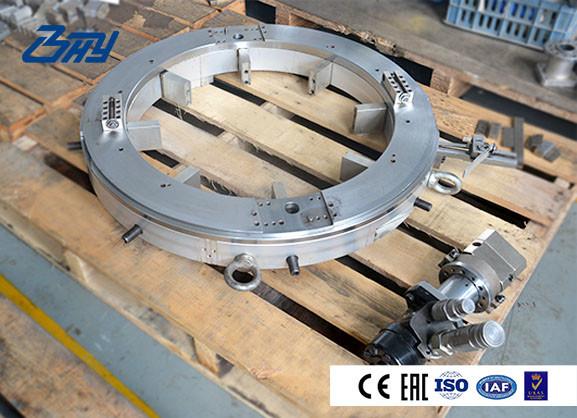

Manufacture

Lightweight Pneumatic Pipe Cutting And Beveling MachineLightweight Pneumatic Pipe Cutting And Beveling Machine

Lightweight Pneumatic Pipe Cutting And Beveling MachineLightweight Pneumatic Pipe Cutting And Beveling MachineLightweight Pneumatic Pipe Cutting And Beveling Machine

Lightweight Pneumatic Pipe Cutting And Beveling Machine

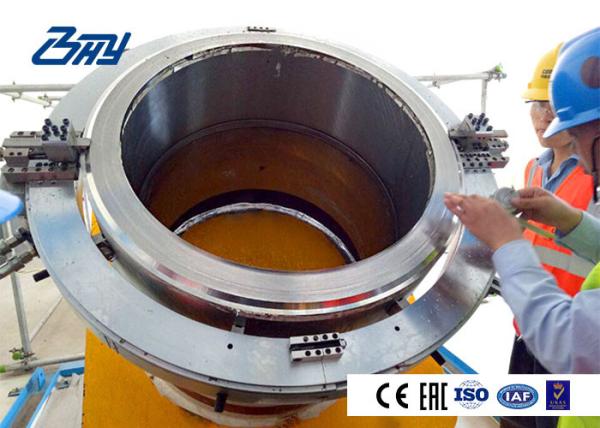

Working On Site

Lightweight Pneumatic Pipe Cutting And Beveling Machine
