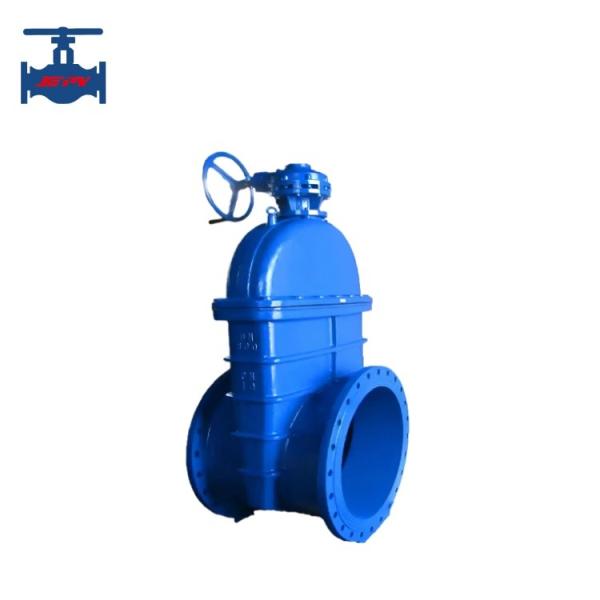

Flanged Gate Valve with Bevel Gear Manual Electric Pneumatic Actuation
Flanged Gate Valve with Bevel Gear Manual Electric Pneumatic Actuation
Specifications
Brand Name :
JGPV
Place of Origin :
China
MOQ :
1 SetFlow way: Two way
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 Set per month
Delivery Time :
One week
Packaging Details :
Plywood box safety packing
Application: :
General
Certificate: :
ISO9001, ISO14001
Medium Type: :
Water, steam and oil etc.
Function： :
Condensate drain
Connection: :
Flange connection
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
Two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight: Bevel Gear Flanged Gate Valve


Product introduction:


The gate plate of a gate valve has two sealing surfaces. The most commonly used mode is that the two sealing surfaces of the gate valve form a wedge shape, and the wedge angle varies with the valve parameters. The gate plate of a wedge gate valve can be made into a whole, called a steel gate plate; It can also be made into a gate that can produce slight deformation to improve its processability and compensate for the deviation of the sealing surface angle during the processing. This type of gate is called an elastic gate.

Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.


Product technical parameters:


Diameter nominal DN (mm)

40～600

Pressure nominal PN (MPa)

1.0～2.5

Test standard

Strength test (MPa)

1.5 times of pressure nominal

Sealing test (MPa)

1.1 times of pressure nominal

Main Components

Body

Ductile iron

Bonnet

Ductile iron

Stem

2Cr13

O type ring

NBR

Seal

NBR

Gland

Ductile iron

Disc

Ductile iron wrapped by NBR

Medium suitable

Water

Working temperature

0℃～80℃

Connection type

Flange


Product features:


1.High quality rubber is adopted for the internal and external encapsulation of valve, and the connection between rubber and valve is reliable and not easy to fall off;

2.As three "O"-shaped rings are designed on valve rod, the friction resistance of switch can be reduced and water leakage can be decreased significantly;

3.Corrosion resistance.
