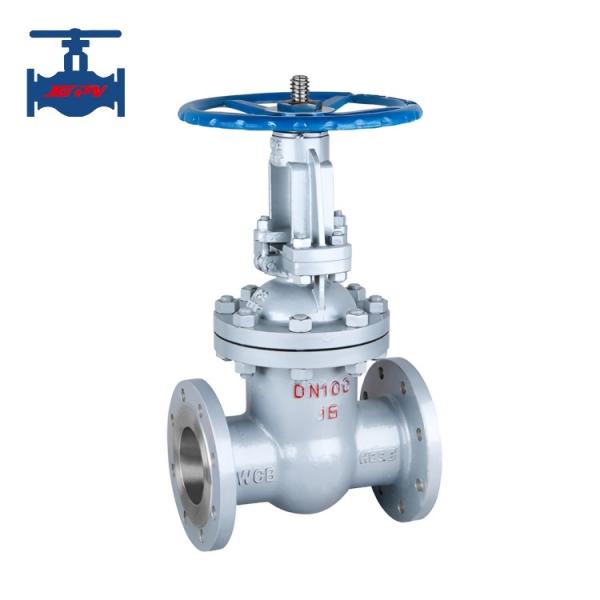

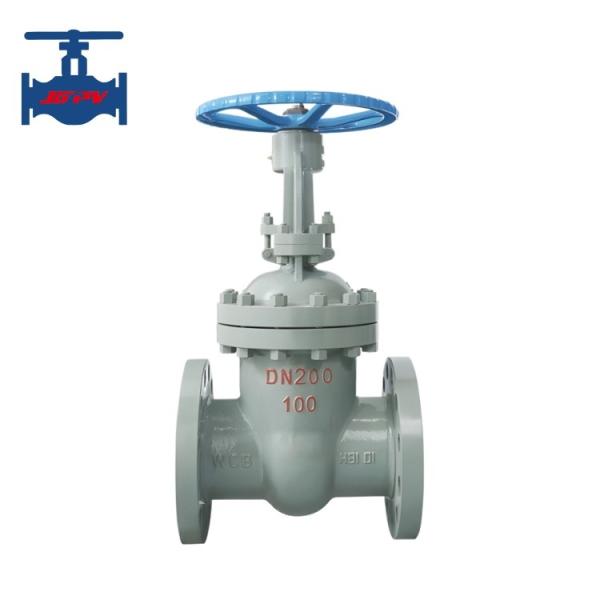

Water Medium Type Flange Gate Valve for Standard Applications
Water Medium Type Flange Gate Valve for Standard Applications
Water Medium Type Flange Gate Valve for Standard Applications
Water Medium Type Flange Gate Valve for Standard Applications
Specifications
Brand Name :
JGPV
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Certificate: :
ISO9001, ISO14001
Medium Type: :
Water, steam and oil etc.
Function： :
Condensate drain
Connection: :
Screw connection
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
Two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight: Flange gate valve


Product introduction:


Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.Cast steel is mainly used for controlling the flow rate, pressure, and temperature of pipelines in various industrial automation production. For example: electricity, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc.


Product technical parameters:


Nominal diameter (mm)

15-300

Nominal pressure (MPa)

1.6

Test pressure (MPa)

Strength (Water)

2.4

Enclose (Water)

1.76

Main Components

Body

A216-WCB

Bonnet

A216-WCB

Stem

2Cr13

Gasket

PTFE

Packing

Soft graphite

Medium applicable

Water, steam and oil

Working temperature

-29℃～425℃

Connection way

Flange

Operational method

Hand wheel

Optional operation

Bevel gear, pneumatic and electric actuators


Product features:


1. Cast steel gate valve with low flow resistance.

2. Cast steel gate valve with less erosion of the sealing surface by the medium.

3. Cast steel gate valve with compact structure, opening and closing are more effortless.

4. The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure.

5. As medium can flow toward either direction of the two sides, it is easy to be installed.

6. Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance.
