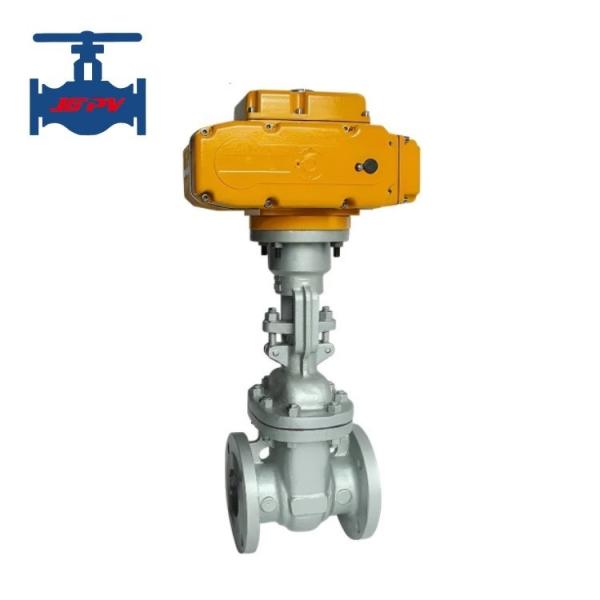

Electric Cast Steel / Stainless Steel Hard-sealed Rising Stem Flange Gate Valve
Electric Cast Steel / Stainless Steel Hard-sealed Rising Stem Flange Gate Valve
Specifications
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Medium Type: :
Water, steam and oil etc.
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Product introduction:


An electric gate valve is a device used in pipelines for liquids, gases, and air systems. It uses an electric actuator to
control the gate valve, thereby achieving the opening and closing of the valve and controlling the on-off of pipeline fluid. It
can be divided into two parts: the upper part is the electric actuator, and the lower part is the valve. The operating torque
of the electric actuator is greater than that of the valve. The switching speed of the electric gate valve can be adjusted,
featuring a simple structure, easy maintenance, sensitive response, safety and reliability. The electric gate valve is used in
conjunction with a linear-stroke electric actuator and a linear-stroke gate valve to achieve the up-and-down movement of
the valve plate to control the on-off of pipeline fluid. It is typically used in supporting highly automated equipment, and this
valve achieves the best adjustment accuracy when installed horizontally.

Product technical parameters:



Model

Nominal pressure
 (MPa)


Test pressure


Operating temperature(℃)


Suitable medium

Strength

Water(MPa)


Seal (water)

air(MPa)


Low-pressure sealing air(MPa)

Z941H-16C
Z41W-16P(R)

1.6

2.4

1.8

0.6

425


Nitric acid type

Z941W-25P(R)

2.5

3.8

2.8

0.6

≤200


Acetic acid type

Z941W-40P(R)

4.0

6.0

4.4

0.6

≤200

Nitric acid type

Z941W-64P(R)

6.4

9.6

7.0

0.6

≤200

Acetic acid type


Product features:


1. Electric gate valve with excellent control accuracy and stability: electric motor control valve opening and closing to achieve accurate flow control.

Ball valves and butterfly valves, as rotary valves, have relatively low control accuracy and may not be ideal for high demand flow control scenarios.

2. Electric gate valve with good truncation performance, due to their linear stroke characteristics, can provide good cutoff performance and completely cut off fluid flow

3. Electric gate valve with quick response and speed adjustment, so it is suitable for systems that require frequent fluid regulation.

4. Electric gate valve can withstand high pressure resistance and corrosion resistance, widely used in some special working conditions.
