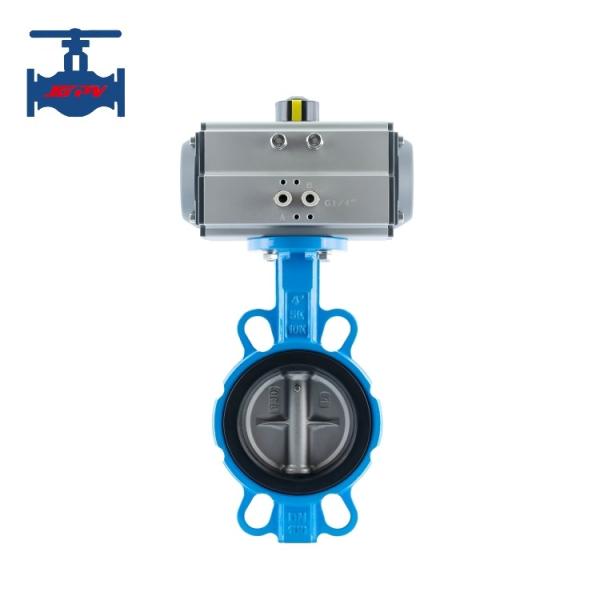

General Application Wafer Type Pneumatic Butterfly Valve With Direct Mounting Design
General Application Wafer Type Pneumatic Butterfly Valve With Direct Mounting Design
Specifications
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
14 days
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Medium Type: :
Water, steam and oil etc.
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
Two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Working Temperature: :
Normal Temperature And High Temperature
Sealing Performance: :
Sealing
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight: Wafer Type Pneumatic Butterfly Valve


Product introduction:


The pneumatic soft-sealed butterfly valve is composed of a pneumatic actuator, a rubber-sealed butterfly valve, and a carbon steel or stainless steel valve disc and stem. The wafer-type pneumatic butterfly valve is suitable for applications with a temperature ≤120℃, such as in water supply/drainage and gas pipelines for industries like food, medicine, chemical, petroleum, power, light textile, and papermaking, serving to regulate flow and intercept media.


Product technical parameters:


Nominal Diameter DN (mm)

50~1200

Nominal Pressure PN (MPa)

0.6～4.0

Test Pressure (MPa)

Strength (water)

0.9～6.0

Enclose (Water)

0.66～4.4

Main Components

Body

Stainless steel/Carbon steel/alloy steel

valve plate

Stainless steel/Carbon steel/alloy steel

valve stem

2Cr13 stainless steel

Packing

PTFE, flexible graphite

Shaft

Stainless steel, PTFE, cemented carbide

Working temperature

-40～570℃

Medium suitable

Water, oil, steam, acid and alkali and other corrosive media


Product features:

1.Novel, reasonable and unique design, light weight, quick opening and closing.
2.Low operating torque, easy and labor-saving operation.
3.Can be installed in any position for easy maintenance.
4.Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
5.Sealing materials feature aging resistance, corrosion resistance, and a long service life.
