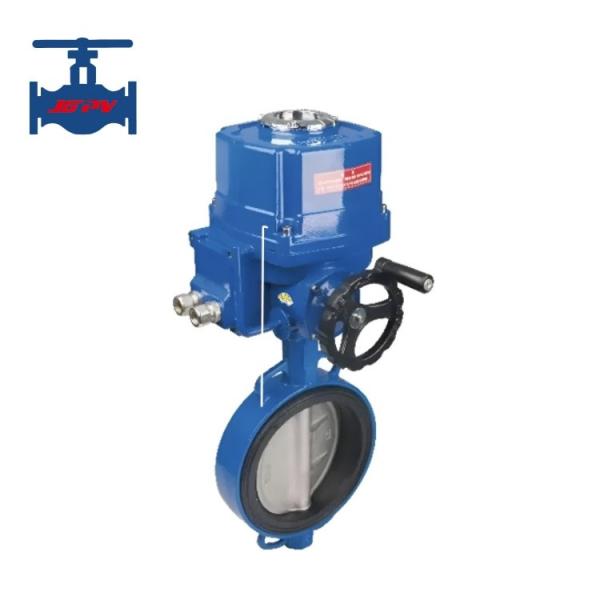

General Sealing Application Electric Butterfly Valve with High Sealing Performance
General Sealing Application Electric Butterfly Valve with High Sealing Performance
Specifications
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Medium Type: :
Water, steam and oil etc.
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
Two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight: Electric butterfly valve


Product introduction:


The sealing types of electric wafer butterfly valves for sewage are divided into several forms: triple-eccentric metal-sealed electric wafer butterfly valves, hard-sealed electric wafer butterfly valves, soft-sealed electric wafer butterfly valves, center-line soft-sealed electric wafer butterfly valves, and double-eccentric soft-sealed electric wafer butterfly valves. They are composed of partial rotary electric actuators and wafer butterfly valve bodies. Electric wafer butterfly valves for sewage can be used in occasions with narrow space requirements and short pipeline distances on site.
The butterfly valve body has no connecting rods, bolts, etc., featuring reliable operation, long service life, and multi-station installation without being affected by the medium flow direction. They are widely applied in dust-laden cold or hot air gas pipelines for ventilation and environmental protection projects in industries such as chemical, building materials, power stations, and glass, serving as flow regulation or cut-off devices for gas media.

Product technical parameters:



Nominal Diameter DN (mm)

50~1200

Nominal Pressure PN (MPa)

0.6～4.0

Test Pressure (MPa)

Strength (water)

0.9～6.0

Enclose (Water)

0.66～4.4

Main Components

Body

Stainless steel/Carbon steel/alloy steel

valve plate

Stainless steel/Carbon steel/alloy steel

valve stem

2Cr13 stainless steel

Packing

PTFE, flexible graphite

Shaft

Stainless steel, PTFE, cemented carbide

Working temperature

-40～570℃

Medium suitable

Water, oil, steam, acid and alkali and other corrosive media


Product features:


  1. Novel and reasonable design, unique structure, light weight, and rapid opening/closing.
  2. Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
  3. Sealing materials feature aging resistance, corrosion resistance, and a long service life.
  4. The two-piece valve stem is pinless connected, with a simple and compact structure for easy maintenance.
  5. The valve seat seal and backrest are integrated to reduce seat deformation.
  6. The valve stem axial positioning device enhances sealing and reduces valve torque.
  7. Can be installed in any position for easy maintenance.
