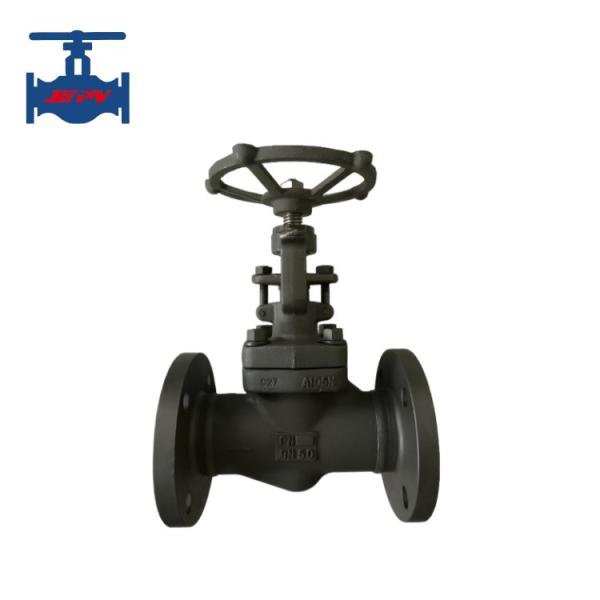

Direct Mount Cast Steel Globe Valve for Normal Pressure Applications
Direct Mount Cast Steel Globe Valve for Normal Pressure Applications
Specifications
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Medium Type: :
Water, steam and oil etc.
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
Two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight: Cast Steel Globe Valve


Product introduction:


The cast steel globe valve adopts a rising stem bracket type structure with bolted bonnet connection, featuring a rotating lifting stem and handwheel. The design of the valve body and bonnet undergoes strict calculations to ensure excellent strength, rigidity, and flow capacity. The bonnet is equipped with a backseat seal, which enhances the reliability of the packing seal in the fully open position and facilitates packing replacement.Suitable for pipelines in various working conditions such as petroleum, chemical, metallurgy, electric power, papermaking, pharmaceutical, food, water treatment, petrochemical, and thermal power plants, it is used to cut off or connect pipeline media.


Product technical parameters:


Nominal Diameter DN (mm)

15~200

Nominal Pressure PN (MPa)

1.6

Test Pressure (MPa)

Strength (water)

2.4

Enclose (Water)

1.76

Main Components

Body

WCB/CF8/CF8M

Valve ball

Stainless steel/Carbon steel

Seat

PTFE

Packing

Soft graphite

Shaft

2Cr13

Handle

Ductile iron

Working temperature

≤150℃

Medium suitable

Water, oil, steam


Product features:


  1. The valve seat and disc adopt a flat or conical sealing configuration.
  2. The seat ring is connected to the valve body via threading or welding. Threaded seats are easily removable for maintenance or replacement.
  3. For metal-to-metal seals, the sealing surface material is directly hardfaced onto the valve body.
