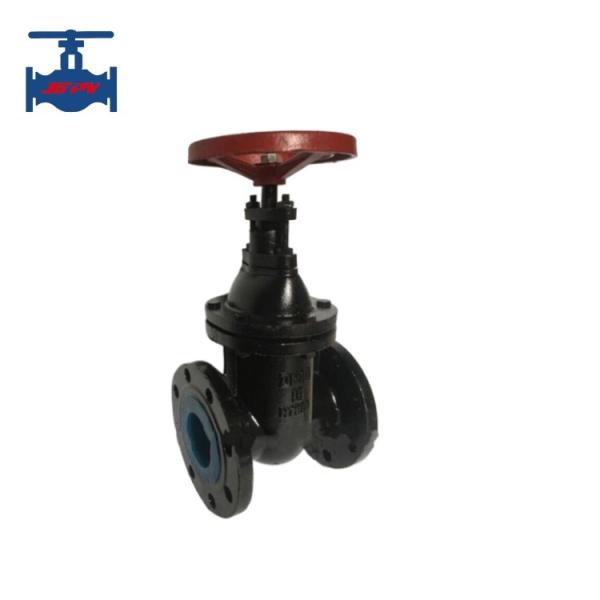

Z45T-16 Manual Non-Rising Stem Copper Flanged Gate Valve
Z45T-16 Manual Non-Rising Stem Copper Flanged Gate Valve
Specifications
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Application: :
General
Medium Type: :
Water, steam and oil etc.
Mounting Type: :
Direct Mount
Standard Or Non-Standard: :
Standard
Flow way: :
two way
Actuation: :
Manual, Electric, Pneumatic,Automatic
Sealing Performance: :
Sealing
Working Temperature: :
Normal Temperature And High Temperature
Pressure Application: :
Normal Pressure
Quality Warranty: :
18 Months
Description

Highlight:Z45T-16 Manual Non-Rising Stem Copper Flanged Gate Valve


Product introduction:


Gate valve is a like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled, It is widely used in petrochemical, pharmaceutical, electric power and other industries.This gate valve with non-rising stem, has two sealing faces, with bronze raw material, forming a wedge with a wedge angle varying with valve parameters, usually 50, and 2°52' when medium temperature is not high, it is made into a whole body, so called the rigid gate, it is Installed in the pipeline, as a closed circuit equipment only, not allowed to adjust the flow rate and empty use.Its working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.


Product specification parameters:


Nominal Diameter DN (mm)

50~1000

Nominal Pressure PN (MPa)

1.6

Test Pressure (MPa)

Strength (water)

2.5

Enclose (Water)

1.76

Main Components

Valve body

HT200

Bonnet & Disc

HT200

Stem

2Cr13

Seal

Cast aluminum bronze

Packing

O type ring

Hand-wheel

HT200

Working temperature

≤100℃

Medium suitable

Water

Connection

Flanges connection


Product features:


1. Low flow resistance, valve body internal medium channel is straight, medium into a straight line flow, flow resistance is

small.

2, Save manpower for opening and closing compared with the globe valve, because whether open or closed, the movement direction of the gate is perpendicular to the direction of the flow side of the medium.

3. High height and long opening and closing time.The opening and closing stroke of the gate is larger, and the drop is carried out through the screw rod.

4, Low water hammer phenomenon due to long shutdown time.

5, Two ways direction, medium can flow to both sides in any direction, easy to install.

6. The structural length (the distance between the two connecting ends of the shell) is small.
