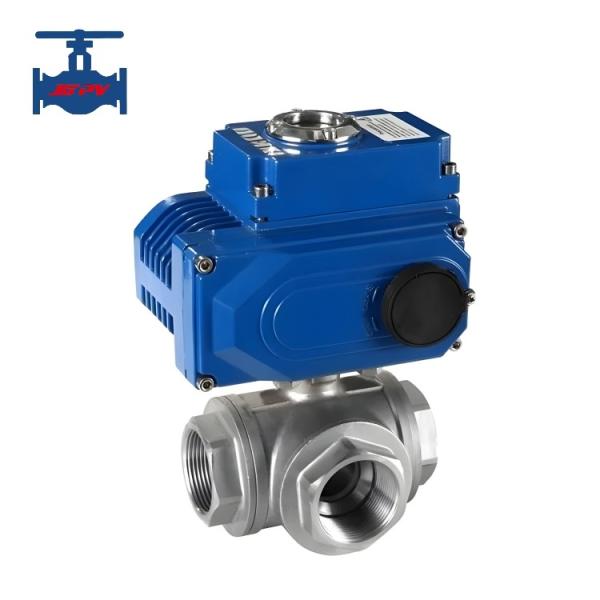

Three Way Stainless Steel Ball Valves T Type / L Type With Electric Actuator
Three Way Stainless Steel Ball Valves T Type / L Type With Electric Actuator
Specifications
Brand Name :
JGPV
Model Number :
Q914F-16P-2PC
Place of Origin :
CHINA
MOQ :
1set
Price :
USD79.9/Set to USD999.9/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
14 days
Packaging Details :
Plywood box safety packing
Name :
Three Way Stainless Steel Ball Valves
Standard or Non-Standard :
Standard
Application :
General
Product function :
Fluid direction adjustment
Working temperature :
Normal temperature
Pressure application :
Low pressure
Medium application :
Corrosive medium
Port size :
DN15 - DN50
Connection :
BSP, NPT, weldable
Quality warranty :
18 months
Test standard :
Strength test, sealing test and other client needs
Description

Stainless Steel T Type And L Type Three-Way Ball Valve With Electric Actuator

Product introduction:

Three way ball valves can adjust flow direction efficiently, and it is available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Electric ball valves including ball valve and electric actuator two parts, electric actuator is one the of most important actuators in industrial automation control systems. Electric three-way ball valve is mainly used to cut off or connect medium in pipelines, it can also be used for fluid regulation and control, and is a pipeline pressure element in industrial automation process control.

Product technical parameters:

Nominal Diameter DN (mm) 15-50
Nominal Pressure PN (MPa) 1.6
Test Pressure (MPa) Strength (water) 2.4
Enclose (Water) 1.76
Main Components Valve body Cast steel and stainless steel
Ball Cast steel and stainless steel
Seat Soft seal / hard seal
Axle Stainless steel
Working temperature 120℃ - 300℃
Medium suitable Water, steam, oil and corrosive mediums
Connection BSPT, NPT, weldable, flange ends
Flow direction T or L type
Driven method ON/OFF or reguating electric actuator

Product features:

1. High control accuracy

2. Quick response

3. Convenient operation

4. Strong durability

5. Easy to maintain

6. High security
