Specifications
Brand Name :
Huashida
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
200000
Payment Terms :
T/T
Supply Ability :
100set a year
Delivery Time :
90 days
Packaging Details :
Standard packaging
Coating :
PE Extrusion
Transport Package :
Plastic Film and Wooden Pallet
Type :
Coating Production Line
Substrate :
Steel
Condition :
New
Specification :
32-325mm
Production Capacity :
15sets/Year
Description

Steel Pipe Bend Elbow Derusting 3PE 3LPE VUS Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line



Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line

Description
2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids. They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

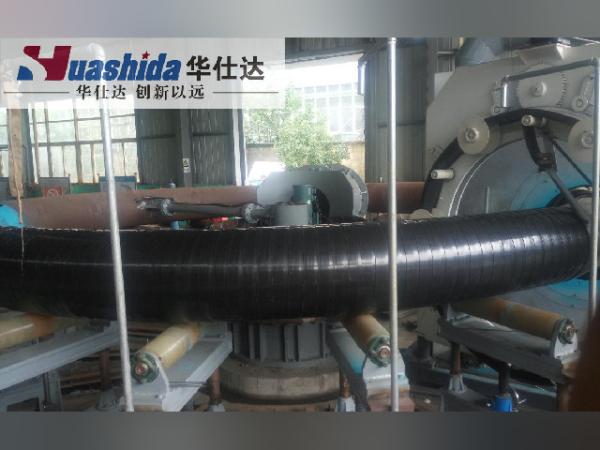

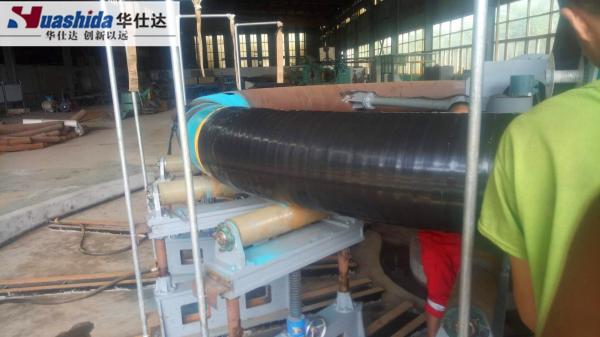

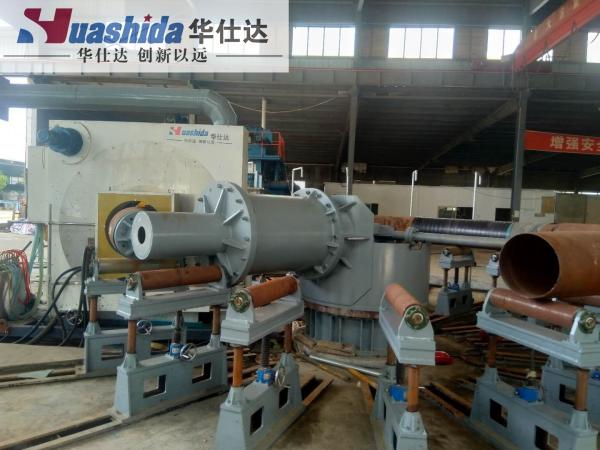

Bend Pipe 3PE Coating Equipment is used to bend pipe 3PE coating, it consists of bend pipe transportation equipment, bend pipe blasting machine, bend pipe intermediate frequency heating, bend pipe 3PE coating, bend pipe spraying cooling.


Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line


Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.

The diameter of steel pipe: 426, 630, 720, 820
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

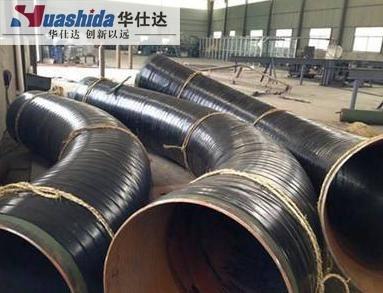

Delivery
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line
Steel Pipe Bend Elbow Derusting 3PE 3lpe Vus Anticorrosion Coating Line

Hot Tags: 3PE-Steel-Pipe-Anti-Corrosion-Production-Line 3Layer-PE-Steel-Pipe-Coating-Line 3PE-Steel-Pipe-Anticorrosive-Making-Line 3Layer-PE-Steel-Pipe-Anti-Corrosion-Processing-Line 3Layer-PE-Steel-pipe-production-Line 3PE-Coating-Line
