Specifications
Brand Name :
Huashida
Model Number :
HSD-Membrane001
Certification :
CE, ISO9001:2008
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
US$10000.00-200000.00
Payment Terms :
T/T
Packaging Details :
Stardard Package
Supply Ability :
80 sets per year
Delivery Time :
45 days
Product Type :
PE Board
Board Layers :
Single Plate
Screw No. :
Single-screw
Automation :
Automatic
Computerized :
Computerized
Condition :
New
Sheet Width :
300-7000mm
Thickness :
0.2-30mm
Color :
by Buyer′s Opinion
Extrusion System :
Mono-Layer or Multi-Layer
Raw Material :
PE/ PP
Transport Package :
Wooden Cases and Pallets
Specification :
CE, ISO9001: 2008, SGS
Trademark :
Huashida
Origin :
Qingdao, China
HS Code :
8477209000
Production Capacity :
80 Sets /year
Description

Product Description

20-Year Plastic PE Sheet Geomembrane Film Extrusion Equipment Factory In China



It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; Equipped with auxiliary downstream accessories and moulds, it can produce: PP, PE and other board & sheet.

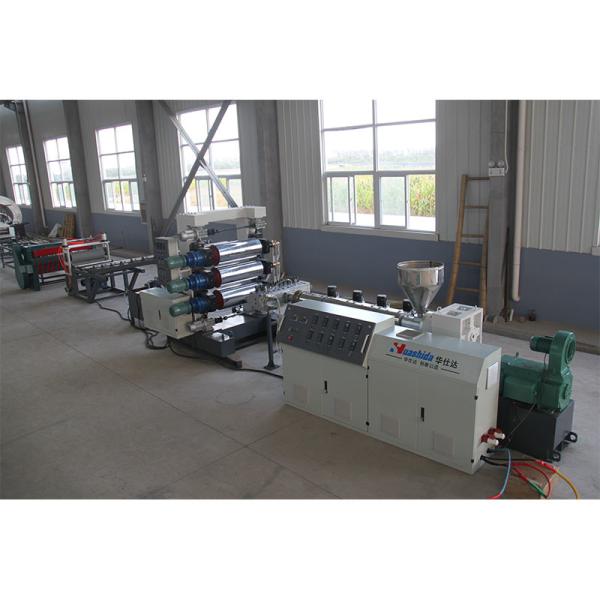

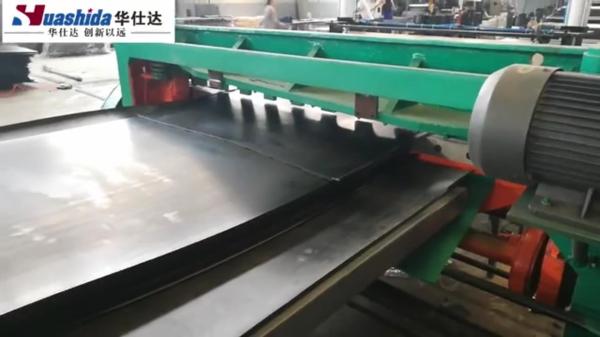

The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.

Others, The working principle is the 3 states of the hot-plastics at different temperatures: The pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.

Features of the Machinery Unit

The machinery unit is constructed from high-grade alloy structural steel (38CRMOALA) for the barrel, screw, and mould, which undergoes nitriding treatment to achieve high hardness and corrosion resistance, resulting in a long service life.

Key Features:

  • T-Die Design: The flow passage is optimized for smooth material flow without detaining, ensuring even product thickness.
  • Calender Design: Features a large conical slot that enhances cooling efficiency within the roller.
  • Temperature Synchronization: Maintains consistent temperature control for improved processing quality.

These features contribute to the machinery's reliability, efficiency, and durability in production.


22-Year Plastic PE Sheet Geomembrane Film Extrusion Equipment Factory In China

Machinery Unit for Plate & Sheet Production

The machinery unit is designed for producing a variety of high-quality plates and sheets, including:

  • PC/PP Hollow Cross-Section Plates
  • PVC Transparent Soft and Hard Plates
  • PVC Foamed Plates
  • PMMA/ABS Co-Extrusion Bathing Plates
  • Refrigerator Inside Chamber Plates
  • Multi-Layer Composite Co-Extrusion Plates and Sheets

Specifications:

  • Width: 300 mm to 700 mm
  • Thickness: 0.2 mm to 45 mm
  • Output Rate: 80 kg/h to 1800 kg/h

This machinery unit offers the best solution for efficient and versatile plate and sheet production, meeting diverse industry needs.

(Modle) (width) Thickness(MM) Seedtm/min) Outputr(kg/h)
JZ-800 650 0.18-1.5 1-25 80-320
JZ -1000 800 0.2-2.0 1-20 150-430
JZ -1500 1350 1-10 0.5-10 150-450
JZ -2000 1850 2-15 0.5-8 300-550
JZ -2200 2000 1-10 0.4-3 420-820
Z -3000 2850 2-8 0.2-3 500-1200
JZ -7000 6800 2-6 0.2-2 600-1560
