Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Specifications
Brand Name :
HUASHIDA
Model Number :
50-4200MM
Certification :
CE, ISO, RoHS
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$100,000.00 - 500,000.00
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
30 Units/Year
Delivery Time :
60DAYS
Packaging Details :
Standard packaging
Type :
Coating Production Line
Coating :
Powder Coating
Substrate :
Steel
Function :
Steel Pipe Sand Blasting
Description

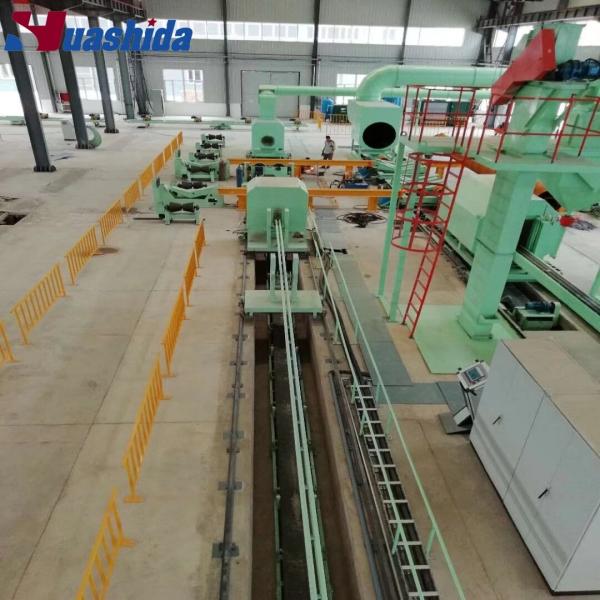

Steel pipe inner wall sand blasting rust removal production line

Product Description

Steel grit blasting is the process of using compressed air to blow solid particles through the surface of the steel pipe at high speed to make it smooth and clean.The inner wall of steel pipe blasting production line is usually used to remove rust on the internal wall of steel pipe with diameter less than 300mm in petroleum, chemical, natural gas and other pipeline fields.

Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line


Product Parameters


Steel pipe dia. range:60mm-325mm

(2)blasting capacity:≤100m2/h

(3)Cleaning class: Sa 2.5

(4)Used material :Steel grit, steel shot, steel wire section and so on.

(5)Main Equipment:Internal grit-blasting trolley, support trolley, blasting gun head, Steel tube inner support, Lifting and turning machine, grit collecting chamber,Return grit conveyor belt, grit platform, settling chamber, cyclone dust extractor ,Filter cartridge dust collector,Internal grit blast induced draft fan, Electrical control system and auxiliary equipment of air compressor.



Detailed Photos


Steel Pipe Inner Wall Sand Blasting Rust Removal Production LineSteel Pipe Inner Wall Sand Blasting Rust Removal Production LineSteel Pipe Inner Wall Sand Blasting Rust Removal Production LineSteel Pipe Inner Wall Sand Blasting Rust Removal Production LineSteel Pipe Inner Wall Sand Blasting Rust Removal Production LineSteel Pipe Inner Wall Sand Blasting Rust Removal Production Line



Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
