Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal
Specifications
Brand Name :
HUASHIDA
Model Number :
50-4200mm
Certification :
CE, ISO, RoHS
Place of Origin :
Qingdao, China
MOQ :
1
Price :
US$100,000.00 - 300,000.00
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
30 Units/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Packaging
Coating :
Powder Coating
Substrate :
Steel
Function :
Steel Pipe Sand Blasting
Type :
Coating Production Line
Description

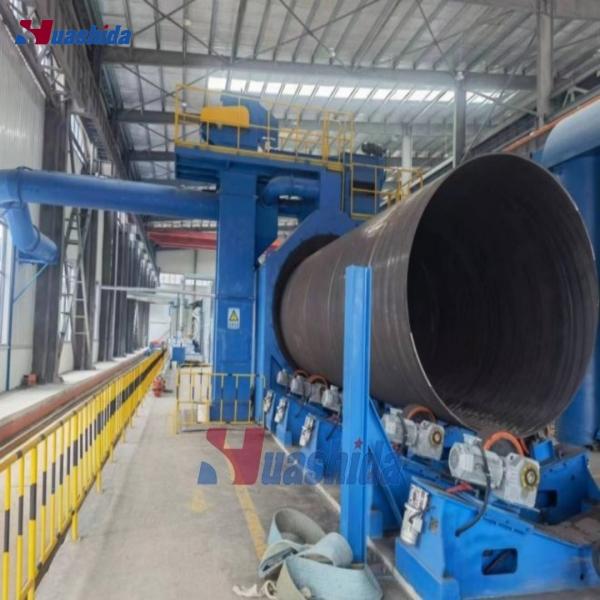

Steel Pipe Outer Wall Shot Blasting line

The high-speed Shots (steel shots, steel sand, etc.) are casted to the outer surface of the steel pipe by shot blasters. The Shots hit the surface of the steel pipe with a strong impact force to make the rust, scale and other impurities fall off to achieve the purpose of rust removal.

This method has high rust removal efficiency and can quickly remove the stubborn rust layer on the surface of the steel pipe, and at the same time of rust removal, the impact of the shots can also produce a certain crushing stress on the surface of the steel pipe, improve the power of resist fatigue strength and corrosion resistance of the steel pipe.

Steel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust Removal


Product Parameters


Production line parameters:

(1)Steel pipe diameter range:60mm-4200mm

(2)Processing capacity:≥400m2/h

(3)Cleaning level:Sa2.5 class

(4)Used material: Steel sand, steel shot, steel wire segment, etc

(5)Main equipment: Cleaning room, Shot blaster , conveyor, pipe uploading mechanism, pipe downloading mechanism, spiral conveyor, elevator, maintenance platform, separator, dust removal system and electric control system.

The production line includes the following equipment

No.

Equipment

Quantity

1

Steel pipe rack

1 set

2

Steel pipe on-line ferry mechanism

2 sets

3

Hydraulic station 1 for 2

2 sets

4

Conveyor system

1 set

5

Shot blasting machine

1 unit

6

Cyclone dust collector

1 unit

7

Pulse filter cartridge dust collector

1 unit

8

Centrifugal induced draft fans

1 unit

9

Electrical control system

1 set

10

Steel pipe offline rack

1 set

1 1

Steel pipe offline ferry mechanism

2 sets

Steel Pipe Shot Blasting Line for Rust RemovalSteel Pipe Shot Blasting Line for Rust RemovalSteel Pipe Shot Blasting Line for Rust Removal

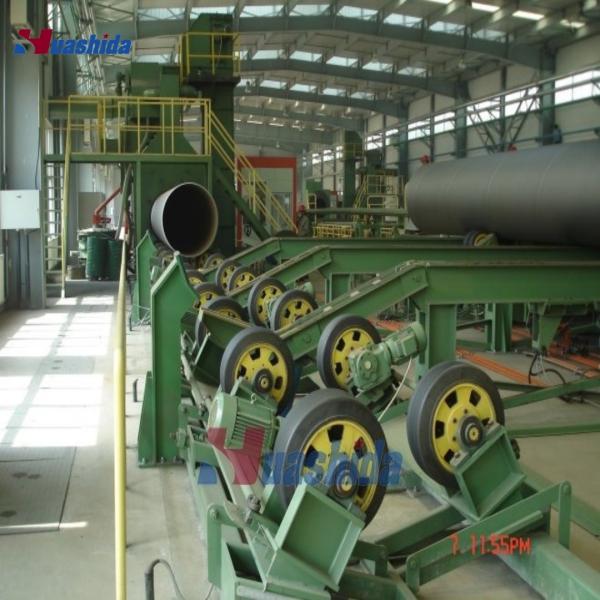

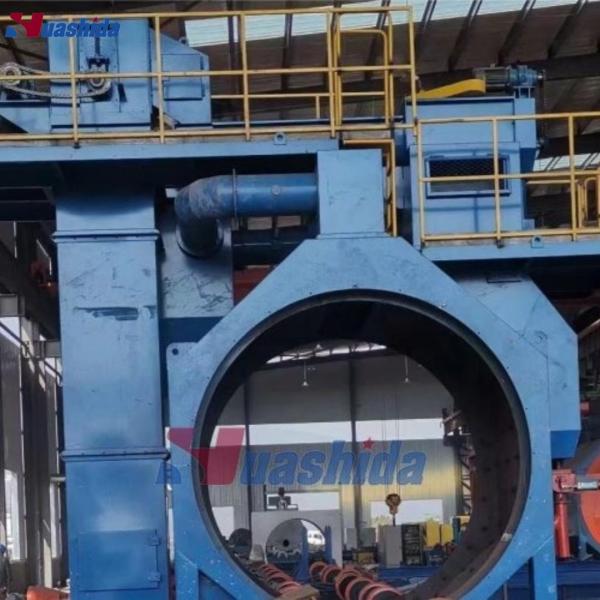

Detailed Photos

Steel Pipe Shot Blasting Line for Rust RemovalSteel Pipe Shot Blasting Line for Rust RemovalSteel Pipe Shot Blasting Line for Rust Removal
Steel Pipe Shot Blasting Line for Rust RemovalSteel Pipe Shot Blasting Line for Rust Removal





Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
