HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm
HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm
HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm
HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm
Specifications
Brand Name :
huashida
Model Number :
200-3000mm
Certification :
CE, ISO9001:2008
Place of Origin :
qingdao,china
MOQ :
1
Price :
US$40,000.00 - 160,000.00
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
50 Units/Year
Delivery Time :
60days
Packaging Details :
Standard Export Packing
Pipe Diameter :
200-3000mm
Voltage :
380V 50Hz
Application :
road drainage, sewage disposal work
Automation :
Automatic
Description
HDPE Hollow Structure Wall Spiral Pipe Production Line
Huashida can provide large hollow pipe winding production lines with a high degree of automation, which are controlled by PLC control systems.
The equipment can produce hollow wall winding pipe and mine anti-static gas exhaust pipe, using special pipe fittings (electric hot melt belt, heat shrink sleeve) connection, convenient connection, construction economy.
It can produce big plastic pipes ranging from 200-3000mm.
HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm


Product Parameters

HDPE Hollow wall winding profile pipe production line process flow:

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

Model Pipe Diameter(mm) Extruder Speed of forming Max. output Installed Power dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Features

1. High Ring Stiffness
2. High Brunt Intensity and low weight
3. Good creep deformation resistance.
4. Outer pressure resistance.
5. Erosion resistance ( such as acid, alkali and salt etc. )
6. Long life of approximately 50 years.
7.No pollution
8.Low cost and easy to operate

Application scenarios

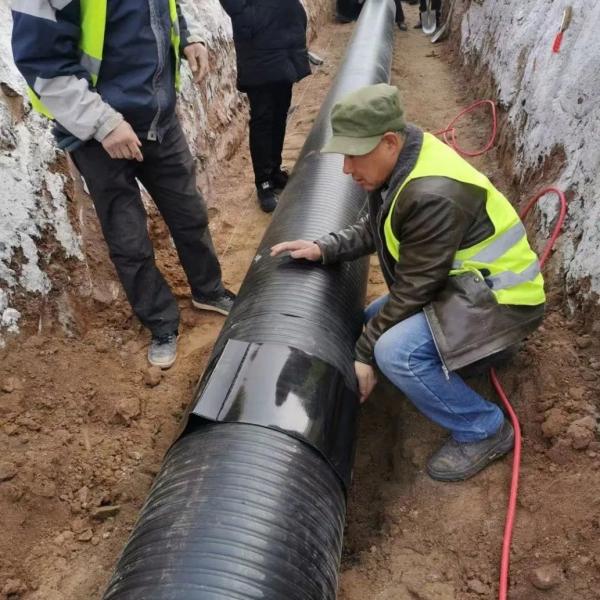

This kind of pipe is fit for municipal drainage of water less than 45, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.

HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm



The complete production line includes two parts:

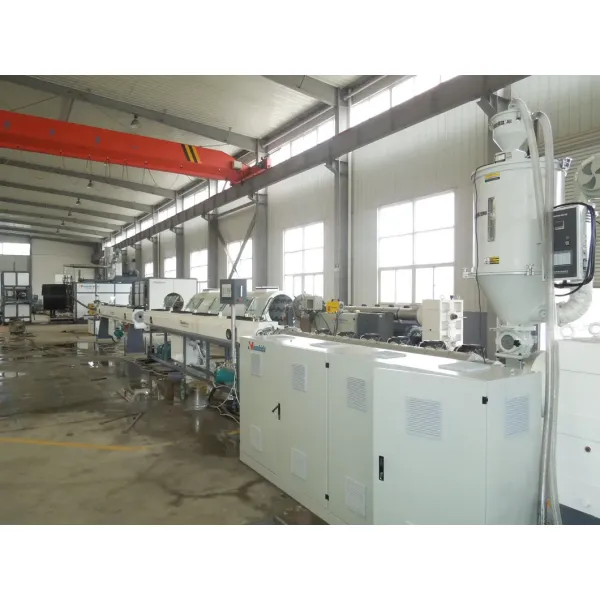

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
SJ series Single Screw Extruder / Die Head ( outer mold and mandrill) / Calibration Sleeve / Vacuum Cooling Tank / Spray Cooling Tank /Haul-off

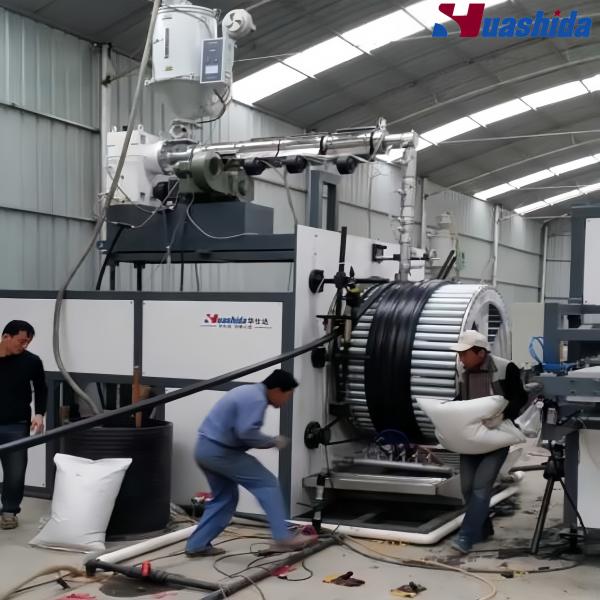

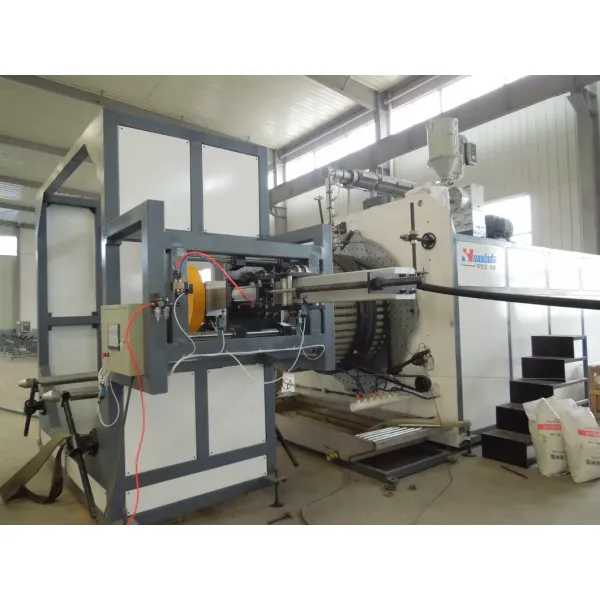

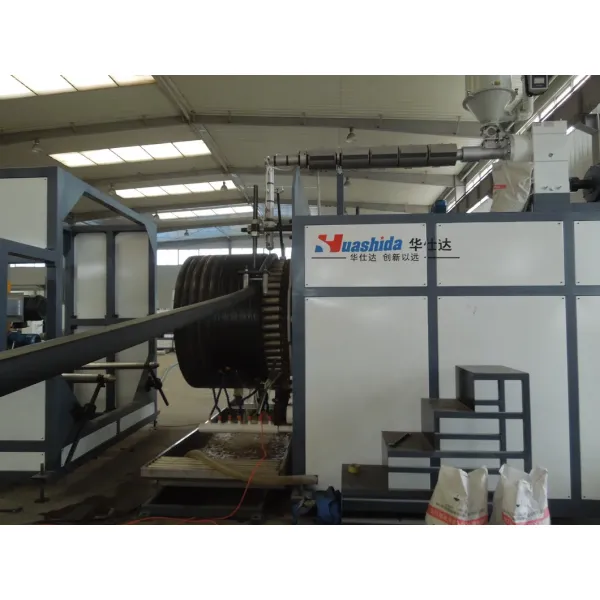

2. The second part is Spiral forming line to form and weld the big pipe.
SJ series Single Screw Extruder / Die Head / Spiral forming unit / Cutting Unit / Stack Unit / PLC control system with touch screen

Detailed Photos

HDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mmHDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mmHDPE Hollow Structure Wall Spiral Pipe Production Line For 200-3000mm

International Trading show

Certifications

Clients case
