PE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes
PE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes
PE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes
PE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes
Specifications
Brand Name :
Huashida
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1
Price :
100000-1000000
Payment Terms :
T/T,D/A,L/C
Supply Ability :
30 sets a year
Delivery Time :
60-90 days
Packaging Details :
Standard packaging
Description
Product Description

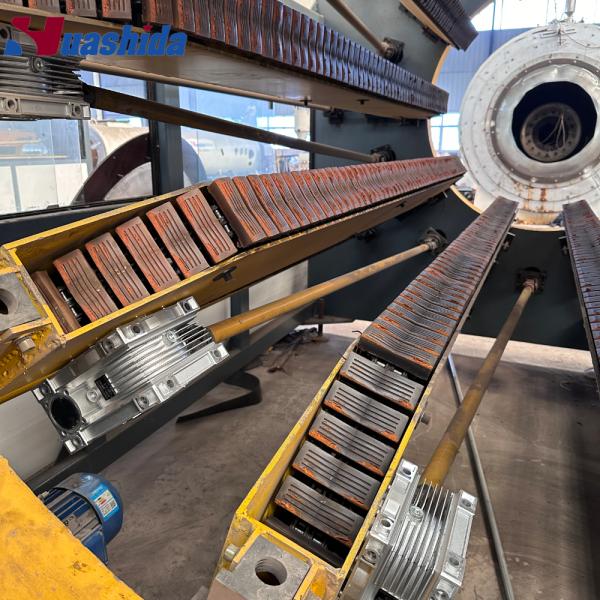

PE-Vacuum Calibration Insulation Pipe Production Line
This advanced machinery is widely recognized for producing pre-insulated pipes used in energy-saving trenchless pipeline installations. These pipes feature rigid polyurethane foam (PUF) insulation within a protective outer casing, ideal for heating networks with a working pressure of 1.6 MPa and water temperatures up to 403°K (130°C), with short-term tolerance up to 423°K (150°C).
The "pipe-in-pipe" structure consists of:

Carrier Pipe: Steel or galvanized steel.
Insulation Layer: Polyurethane foam (PUF).
Outer Casing: High-density polyethylene (HDPE) for underground installations or galvanized steel for above-ground applications.
PE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes

Our Advantages

Enhanced Reliability: The PUF insulation system ensures durability and operational efficiency.
Remote Monitoring: Integrated condition monitoring allows early detection and repair of coolant leaks, preventing accidents common in other thermal network designs.
Energy Efficiency: Optimized for trenchless laying, reducing installation costs and environmental impact.
High Performance: Superior stiffness, pressure resistance, and surface quality due to vacuum calibration technology.
PE Jacket Pipe Production Line for PUF Pre-Insulated Heating PipesPE Jacket Pipe Production Line for PUF Pre-Insulated Heating Pipes

Product Parameters

 PE-365/760 PE-420/960 PE-850/1372 PE-960/1680
Main extruder SJ-90/33 SJ-90/33 SJ-120/33 SJ-150/33
Pipe diameter (mm) Φ365-960 Φ420-960 Φ850-1372 Φ960-1680
capacity (kg/h) 550-700 550-700 700-900 800-1200
Installed power (kw) 360 380 440 580
Length (m) 35 36 40 48


Company Profile

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.

Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
