PUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil Pipeline
PUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil Pipeline
Specifications
Brand Name :
Huashida
Certification :
CE, ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
US$100,000.00-1,300,000.00 1 Piece (MOQ)
Payment Terms :
T/T
Supply Ability :
20 Sets/Year
Delivery Time :
60days
Packaging Details :
Standard Export Package
Application :
Hot Chiller Water/Oil /Chemical Material Pipeline
Computerized :
Computerized
Screw No. :
Single-screw
Foaming Thickness :
30-100mm
Specification :
20-2000mm
Principle :
High-Pressure Air Type
HS Code :
8477209000
Description

Product Description

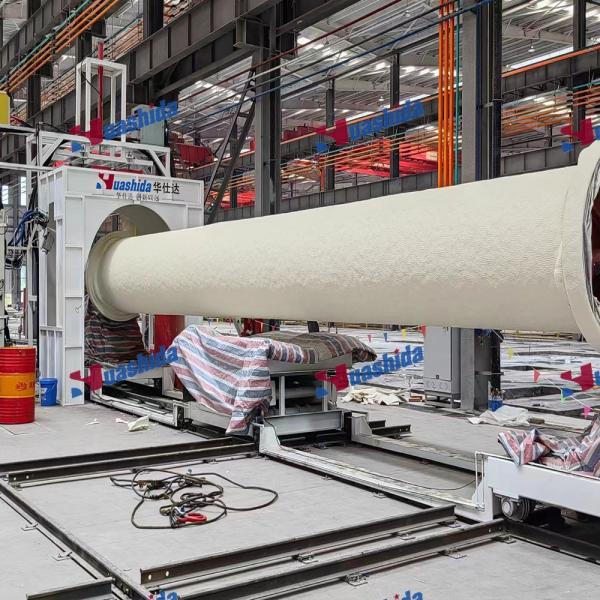

PUR Spray PE Wrap Pre-Insulated Pipe Production Line

Energy-Efficient Solution for Heating, Cooling & Oil Transport Applications

Production Line Introduction

The Polyurethane (PUR) Spray Polyethylene (PE) Wrap Pre-Insulated Pipe Production Line is designed for manufacturing polyurethane pre-fabricated direct-buried thermal insulation pipes. These pipes are widely used in:

District heating networks

Industrial cooling systems

Crude oil and chemical transportation pipelines

PUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil Pipeline

Product Structure

The rigid polyurethane spray PE-wrapped pre-fabricated direct-buried insulation pipe is composed of:

  • Working Steel Pipe - conveys the medium

  • Rigid Polyurethane Foam Insulation Layer - provides thermal insulation

  • Polyethylene Outer Casing (wound) - offers mechanical protection and corrosion resistance


Application Scope

  • Anti-corrosion & thermal insulation pipelines for heating, cooling, and crude oil transportation

  • Medium temperature: ≤ 120°C (peak ≤ 140°C)

  • Medium pressure: ≤ 2.5 MPa

  • Installation methods: Direct burial (primary), trench laying, or overhead installation

PUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil Pipeline

Advantages of Polyurethane Spray Insulation Pipe

  1. Consistent and controllable polyurethane density

  2. Void-free rigid polyurethane foam

  3. High bonding strength: Shear strength (friction) between foam and PE casing > 200 KPa

  4. Customizable design: Adjustable thickness of insulation layer and PE casing

  5. High degree of automation in production

Product Parameters

No. Nominal Diameter (DN) Insulation Layer Thickness (mm) Outer Casing Diameter (mm) Min. Outer Casing Thickness (mm)
1 500 30-60 598-658 4.5
2 600 30-60 700-760 5.0
3 700 30-60 790-850 5.0
4 800 30-60 891-951 5.5
5 900 30-60 992-1052 6.0
6 1000 30-60 1093-1153 6.5
7 1100 30-60 1194-1254 7.0
8 1200 40-100 1316-1436 8.0
9 1400 50-100 1538-1678 9.0
10 1620 50-100 1738-1840 10.0

Technical Process

The spray and winding production process ensures:

  • Uniform insulation layer density

  • Improved product quality

  • Optimized production efficiency

  • Lower production costs

Production Line Components:

  1. Steel Pipe Outer Wall Shot Blasting Line

    • Prepares steel pipe surface for optimal polyurethane bonding

  2. Polyurethane Spray Molding Line

    • High-pressure spray technology for uniform foam application

  3. Polyethylene Sheet Extruding & Winding Line

    • Continuous extrusion and spiral winding of PE casing

  4. Water Cooling Line

    • Controlled cooling for dimensional stability

  5. End-Cutting Equipment

    • Precision trimming of finished pipes
      PUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil PipelinePUR Spray Polyethylene Wrapped Pre-Insulated Pipe Line for Heating Cooling Oil Pipeline

Company Profile
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,
collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
