Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
Specifications
Brand Name :
huashida
Model Number :
20-2200mm
Certification :
CE, ISO9001:2008
Place of Origin :
Qingdoa, China
MOQ :
1
Price :
US$100,000.00-2,000,000.00
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60days
Packaging Details :
Standard Export Package
Mold Type :
Spiral Mold
Calibration Method :
Vacuum
Application :
Produce Water-Supply Gas-Supply Pressure Pipe
Pipe diameter specification :
20-2200mm
Description
Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line

Product Description

Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line


HDPE gas water supply pipe production line is mainly used to extrude PE pressure pipes, pipe diameter ranging 20-2200mm.

The produced pipe has smooth surface and uniform wall thickness, the specification can meet the international standards of the product.

The equipment can apply special extrusion molds and adopt multi-layer co-extrusion technology to reduce production costs.

Plastic Pipes produced by this line have excellent stiffness, flexibility, highmechanical strength, resistance of environmental stress cracks, resistanceto creep defommation, heat-inkage and so on.

Process flow
Feeding&Drying → Extrusion Molding → Mold Shaping→ Cooling → Traction and Cutting → Marking

Application
Underground water supply pipe
Underground gas supply pipe
city gas/water pipe
foundation pipe
landfill collection pipe
geothermal heating pipe
Municipal water /gas pipe

Technical parameters

Model Pipe diameter Screw KiloWatt Output
SPEG-110 20-110mm SJ75X33 180kw 350kg/h
SPEG-250 63-250mm SJ90X33 280kw 500-1000kg/h
SPEG-630 315-630mm SJ120X33 522kw 1000-1200kg/h
SPEG-1200 710-1200mm SJ150X33 680kw 1000-1600kg/h
SPEG-2200 1000-2200mm SJ150X33 1200kw 2000-2500kg/h

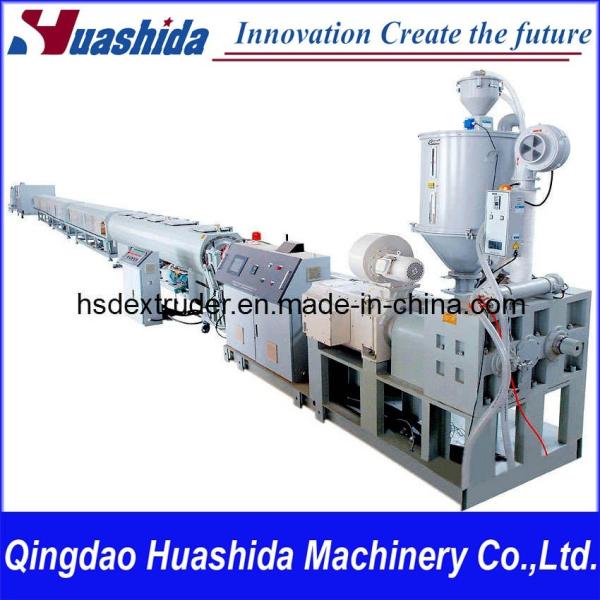

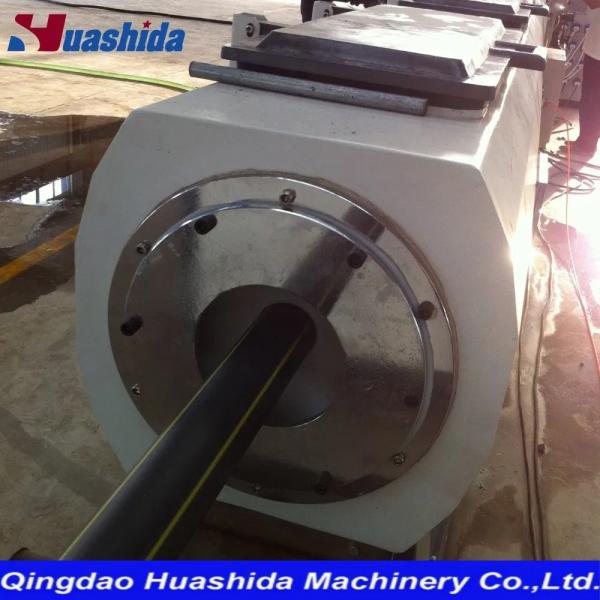

Detailed Photos


Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line

Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
Technological processes


Main equipment list
-1set Vacuum loader
-1set Hopper dryer
-1set High-effeciency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table
-2/4 set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

Our Advantages

-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

International Trading show

Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line

Certifications

Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line

Clients case


Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line

Our Team


Customizable HDPE Soild Wall Water&Gas Supply Pipe Extrusion Line
