Specifications
Brand Name :
Huashida
Model Number :
3-5mm
Certification :
ISO9001:2008
Place of Origin :
Qingdao China
MOQ :
100 kg
Price :
US$3.00-3.50
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5tons/Day
Delivery Time :
60Days
Packaging Details :
Mandrel and Carton
Electrode Coating Type :
PE/PP/PS/HIPS/ABS/PVC
Application :
Handheld Welder
Color :
by Order
Description

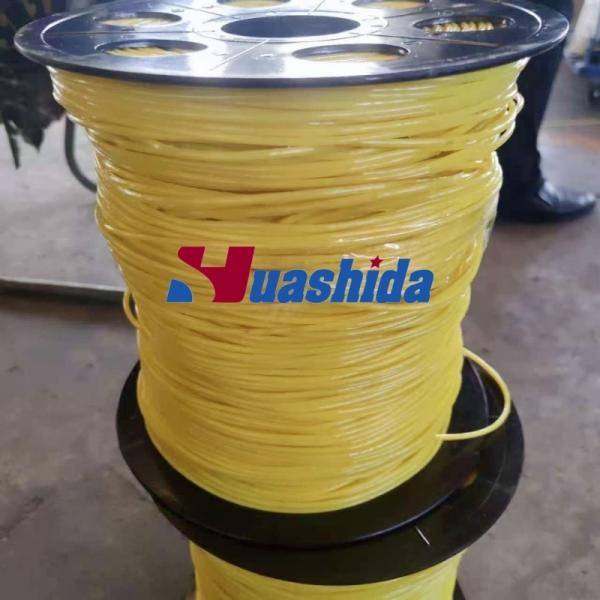

Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Product Description

The plastic welding rod is a solid rod extruded from PE(or PP, PVC) resin. The color is usually black, white, or yellow. It is used on the plastic handheld extruders to weld plastic sheets/plates, containers, plastic pipelines or to make plastic tanks and pipe bents.

Performance:
Acid-resistant, alkali-resistant, salt-resistant, anti-corrosion, and non-toxic properties make it ideal for welding in harsh environments.
Highly effective for use with handheld extruders to weld a variety of plastic components, including plastic sheets, containers, pipelines, plastic tanks, and pipe bents.


Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Our Advantages


Produced by Huashida, it has been deeply engaged in plastic machinery and has a profound technical foundation
Made of pure raw materials, it is chemically stable, corrosion-resistant and has a long service life
Scientific formula, excellent welding fusion, suitable for all kinds of operations
National standard production line, strictly control precision, and output high-quality welding rods
Full service guarantee throughout the process, with professional and efficient selection and after-sales support

Product Parameters


Material:
PE (Polyethylene), PP (Polypropylene), PVC (Polyvinyl Chloride)
Diameter:
3mm to 5mm (custom sizes available upon request)
Colors:
Black, White, Yellow (custom colors available)
Packaging:
10 kg per bundle, 20 kg per export cartonTensile Strength

Test Report:

Tensile test report
Sample No. Testing area Max. load Tensile strength Elongation at break
1 11.34 190.18 16.77 498.12
2 11.34 198.15 17.47 510.83
3 11.34 199.29 17.57 350.54
Average value 11.34 195.87 17.27 453.16
Standard deviation
4.96 0.44 89.10
Max. value 11.34 199.29 17.57 510.83
Min. value 11.34 190.18 16.77 350.54

Detailed Photos


Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun




Production Line Details

Equipment composition:
-- Vacuum self-feeder
-- Hopper Dryer
-- SJ-45/30 Single Screw Extruder
-- Die Mould
-- Cooling Water Tank
-- High speed tractor
-- Duplex Take-up Winder


Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Packaging & Shipping

Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun


Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Company Profile

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

Factory overview
Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun

Certifications


Plastic PE PP PVC Round Welding Wire of Portable Hand Welder Gun
