China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
Specifications
Brand Name :
Huashida
Model Number :
HSD-HF
Certification :
CE, Rohs，TUV
Place of Origin :
China
MOQ :
1 set
Price :
US$ 3000-20000/ set
Payment Terms :
T/T
Supply Ability :
100 Sets per year
Delivery Time :
20 days
Packaging Details :
Standard package
Screw :
Single-Screw
Automation :
Automatic
Customized :
Customized
Crawler Lengh :
2.5m Effective Length
Crawler Feet :
2-12 Feet
Application :
Hauling off Pipe From The Extruder
Pipe Size :
50mm2000mm
Specification :
110-2000mm
Description

China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe




1. Strong hauling force, especially suitable for hauling high-density pipe, such as pp/pe pipes.
2. Hauling force is well distributed according to the pipe.

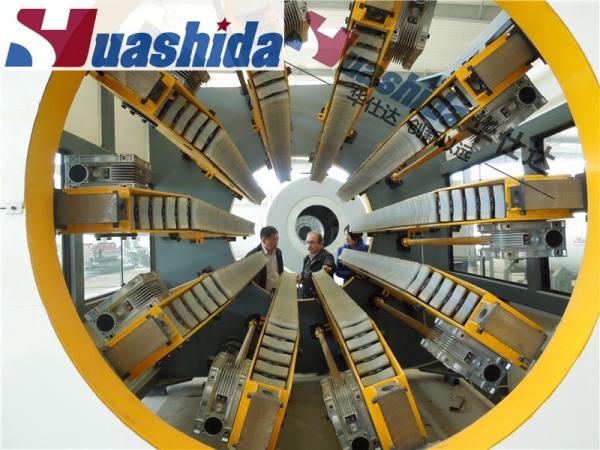

3. 2, 3, 4or 6 claws are applied to hold and haul pipes evenly.
4. SCR step-less speed regulation, frequency control.
5. It is convenient and widely used.

China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe

China's Automated Tube Drawing and Haul-Off Machine for Plastic PipeChina's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe

Performance


Series plastic pipes, material drawer adopts double drawing method, thyristor step-less speed regulation, frequency conversion. Main and auxiliary, plastic extruder for plastic pipe material, soft pipe and to other plastic shaped materials. It is of wide application range, convenient use. The pipe haul off machine is mainly used to continuously and automatically pull various plastic pipes, soft Pipe and other profile after it is extruded, cooled, dried, printed by the tractor. Use rubber
Block /belt metal fixture block to fit with different pipes of different materials, diameters and wall Thickness.

Product Parameters

Model
Range of
traction tubing(mm)
Number of
traction belts(mm)
Power of
drive motor(kw)
Peak traction(N)
Max pulling
length(mm)
Max.speed
(m/min)

HSD32
6-32
2
2×0.75
3000
600
30

HSD75
16-75
2
2×1.1
10000
1000
15

HSD160
20-160
2
2×1.5
15000
1500
10

HSD250
50-250
3
4
20000
1500
3.5

HSD315
75-315
4
5.5
25000
1500
3

HSD450A
110-450
4
5.5
25000
1600
2

HSD450B
110-450
4
5.5
30000
2200
1.2

HSD630A
200-630
6
7.5
35000
1600
1.4

HSD630B
200-630
6
7.5
40000
2500
0.9

HSD800
315-800
8
11
60000
2500
0.7

HSD63
2-16-63
2×2
2×2.2
2×5000
1000
2-12


China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe
China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe

China's Automated Tube Drawing and Haul-Off Machine for Plastic Pipe

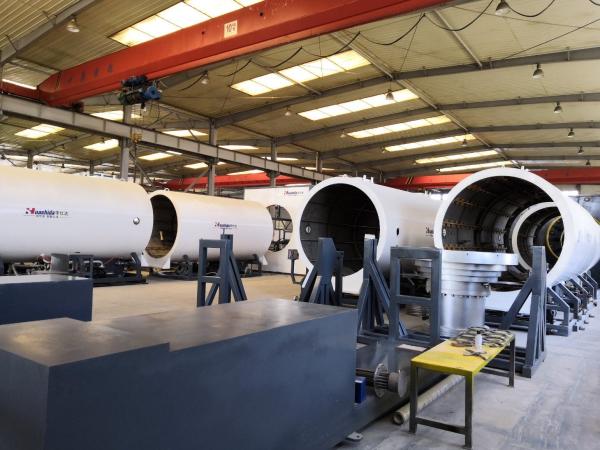

Company Profile


Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers an area of 34000 square meters Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line. The products have been exported to Middle East, Russia, Africa. Turkey, Korea.

Our factory locates in Cheng yang Industrial area, Qingdao , Shandong Province. we have been approved and got the certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.
