Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines
Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines
Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines
Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines
Specifications
Brand Name :
Huashida
Model Number :
42-326mm
Certification :
CE, Rohs，TUV
Place of Origin :
China
MOQ :
1
Price :
US$50,000.00-150,000.00
Payment Terms :
T/T
Supply Ability :
50 Units/Year
Delivery Time :
60days
Packaging Details :
Standard Package
Surface Cleaning Grade :
SA2.5
Steel Pipe Diameter Range :
32mm - 426mm
Applications :
Gas Supply Pipe/Heating Supply Pipe
Description

Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines

Product Description

The one-step polyurethane insulation pipe production line of Huashida produces small-diameter polyurethane insulation pipes with an outer diameter ranging from Φ32 to Φ426mm.

The main feature of this equipment is that multiple processes of the insulation pipe, such as extruding the outer protective pipe and injecting insulation materials, are continuously completed on the same production line, resulting in a relatively high production efficiency. It is mainly used for manufacturing polyurethane insulation pipes, etc., which can closely combine the inner pipe, insulation layer and outer protective layer of the insulation pipe. Its degree of automation can effectively reduce manual operation links and improve the stability of product quality.

Application scenario:

It is widely used in heat supply pipeline, oil transmission pipeline and other pipelines that need heat preservation.

Underground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines
Product Parameters

Main Equipment:

Steel pipe derusting equipment
PE extrusion machine
Forming molds
Deviation-correcting devices
Cooling equipment
Cutting tools
Pipe transfer system
Spray marking system

Production line parameter:

Steel Pipe Diameter Range: 32mm - 426mm
Processing Capacity: ≤250m2/h
Surface Cleaning Grade: Sa2.5
Materials Used:Black Material: Isocyanate; White Material: Polyether Polyol Mixture

The whole production line is composed of:
Extruder → Die head → cooling water tank → Traction machine → Cutting machine → pipe clamping machine → Bracket and electrical control

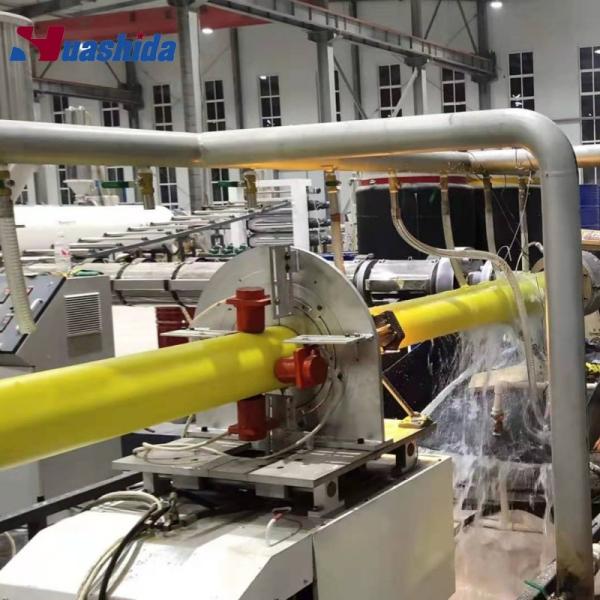

Equipment Show:

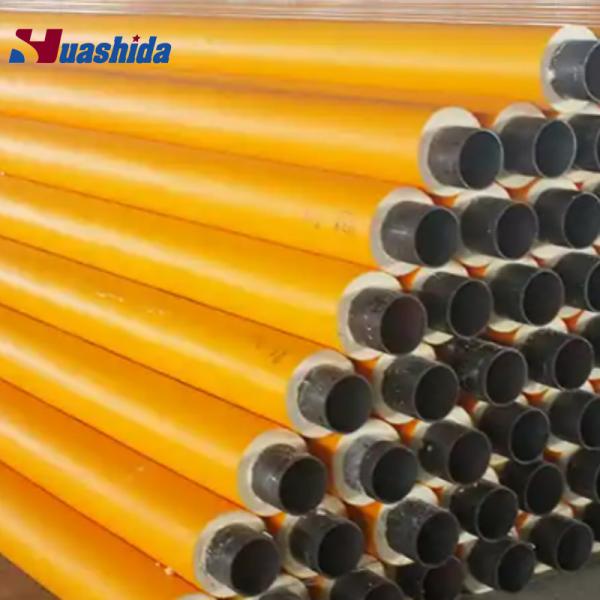

Underground One-Step Polyurethane Insulated Pipe Production Line for Oil PipelinesDisplay of finished pipes

Underground One-Step Polyurethane Insulated Pipe Production Line for Oil PipelinesUnderground One-Step Polyurethane Insulated Pipe Production Line for Oil Pipelines

Technical Parameters

Technical Features
Corrosion resistance:
Compatible with fusion-bond epoxy powder and various coatings.

Thermal insulation:
Options include high-temperature polyurethane foam or black pitch foam.

Outer jacket:
Black, UV-resistant, and anti-aging, ensuring durability.

Robust Layer Integration:
The jacket, foam, and anti-corrosion layers adhere firmly, providing superior protection.

Damage-free Rotation System:
Rubber wheels prevent damage to the anti-corrosion layer during operation.

Advanced Alignment Technology:
The Automatic Hydraulic Deviation-correcting Machine ensures stable performance and precise rectification.

Our Advantages

1. Awarded the first (set) technical equipment in Shandong Province
2. Evaluation Report on Standardization of Scientific and Technological Achievements in Qingdao City
3.Having multiple national patents
4.Intelligence, automation, and reducing manual labor
5.Efficient and energy-saving, with low production costs
6.Stable and reliable, with a high yield of finished products and minimal waste
