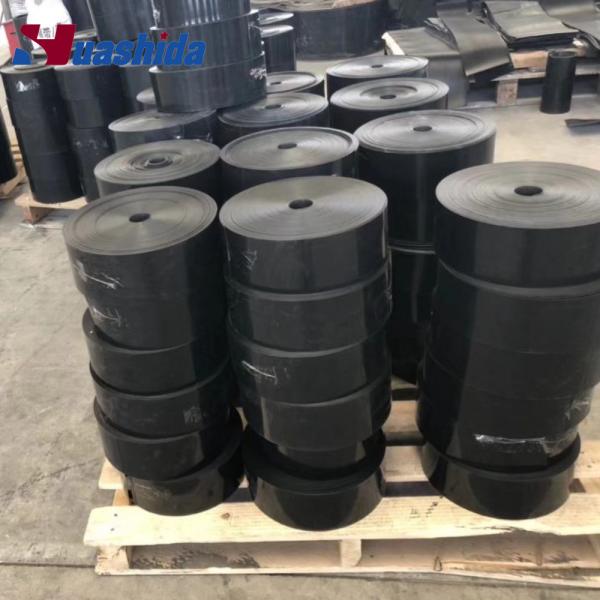

huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
Specifications
Brand Name :
huashida
Certification :
CE, ISO9001:2008, QS, GMP
Place of Origin :
china
MOQ :
100
Price :
huashida
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
15 days
Packaging Details :
Standard packaging
Sleeve Width :
1000mm
Sleeve Thickness :
0.5-3mm
Part1 :
Basic Film Extrusion Line
Part2 :
Adhesive (EVA) Coating Line
Description

Introduction
PE heat shrinkable tape (sleeve) is composed of cross-linked polyethylene back and special heat melt adhesive. Heat melt adhesive has good bonding with PE back, steel pipe and Fusion bonded epoxy (FBE layer). By heating PE back shrinks, adhesive layer melts, and closely wraps around pipe joints, then it forms together with FBE a firm and continuous anti-corrosion body. It is resistant to corrosion, wear, impact, UV and aging, easier to be operated.
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints

Application area:
It is mainly used for wrapping around pipe, anti-corrosion of kinds of pipe joints, and repairing pipes.
For example: Oil and gas pipe, PU insulation pipe, 3PE/2PE FBE coating steel pipeline joint.



CONSTRUCTION CASE
Heat shrinkable sleeve for Oil & Gas Pipe (60c/80c)huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints


Heat shrinkable sleeve forThermo Insulated Pipe
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints

COMPARISIONS
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints

Product Parameters


TECHNICAL PARAMETERS

NO Text Item Unit Performance Text Result Text Metho
Back Material
1 Tensile Strengt MPa ≥17 19.47 ASTM D638
2 Elongatio % ≥400 626 ASTM D638
3 Vicat Softening Poin ºC ≥90 92 ASTM D1525
4 Brittleness Temperatur ºC <-65 <-65 ASTM D2671C
5 Dielectric Strengt MV/m ≥25 33.13 ASTM D149
6 Volume Resistivit Ω.m ≥1*1013 1.1*1013 ASTM D257
7 Environment Stress Crac h ≥1000 >1000 GB/T1842


8
Chemical
resistance
(7d		 10%
HCI		 Tensile strength MPa ≥85 104.9 ASTM D638
Elongation % ≥85 96.3 ASTM D638
10%
NaAH		 Tensile strength MPa ≥85 102.1 ASTM D638
Elongation % ≥85 95.6 ASTM D638
10%
NaCL		 Tensile strength MPa ≥85 108.3 ASTM D638
Elongation % ≥85 94.1 ASTM D638
9 Thermal aging
(150ºC,168h		 Tensile strength MPa ≥14 20.7 ASTM D638
Elongation % ≥300 630 ASTM D638
NO. Text Ite Uni Performanc Text Resul Text Metho
Adhesive
1 Softening Poin ºC ≥90 90.1 ASTM E28
2 Brittleness Temperatur ºC <-15 <-15 ASTM D2671C
3 Lap Shea MPa ≥1.0 1.5 ASTM D1002

4		 Peel Strength
(23±2ºC		 Steel N/cm ≥70 145.6 ASTM D1000
Primer N/cm ≥70 205.9 ASTM D1000
PE laye N/cm ≥70 190.0 ASTM D1000
Non-solvent Epoxy Primer
5 Shear of cured primer MPa ≥5.0 12 SY/T0041


Company Profile

Qingdao Huashida, a global plastic extrusion equipment R&D manufacturer and solution provider, 70% of our customers from Europe, the United States, the Middle East and Southeast Asia and other overseas countries. Huashida's R&D and manufacturing insulation pipe production line is widely used in municipal heat, sewage, water supply, natural gas and communication pipe network construction, crude oil pipeline transportation and agricultural irrigation. Relying on our innovation and product strength, we have provided customized technical services for more than 1000 manufacturers , including more than 400 domestic enterprises and more than 500 foreign enterprises and established a 24-hour global service response mechanism to effectively solve customer concerns.


Factory overview
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
Our team

huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
Delivery
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
Exhibition
huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints

Certifications

huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints

huashida Heat Shrinkable Sleeve HSS for Oil and Gas Pipeline Field Joints
